TSTSTopology Class Reference

#include <TSTSTopology.h>

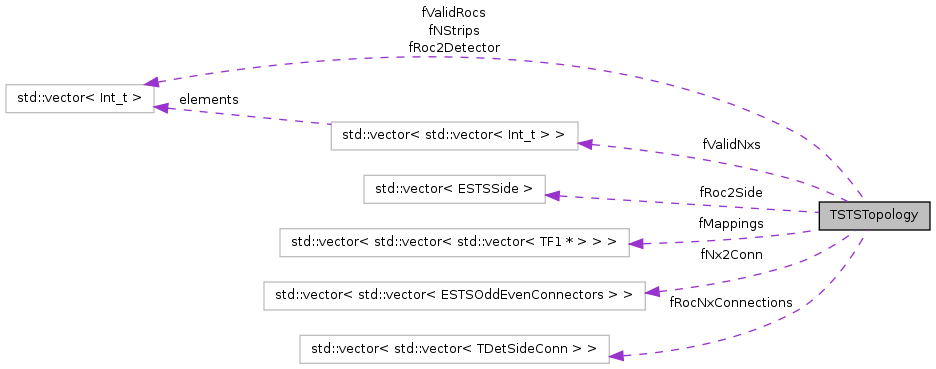

Collaboration diagram for TSTSTopology:

Data Structures
struct	TDetSideConn
struct	TRocNxChConn
Public Types
enum	ESTSSide {   kPSide, kNSide, kNSides, kAllSides,   kPSide, kNSide, kNSides }
enum	ESTSSide {   kPSide, kNSide, kNSides, kAllSides,   kPSide, kNSide, kNSides }
enum	ESTSOddEvenConnectors { kOddConnectors, kEvenConnectors }
Public Member Functions
	TSTSTopology ()
virtual	~TSTSTopology ()
UInt_t	GetRocArrSize () const
UInt_t	GetNxArrSize () const
UInt_t	GetNxArrSize (UInt_t roc) const
UInt_t	GetDetArrSize () const
UInt_t	GetStripArrSize (UInt_t det, UInt_t side) const
void	TestMapping (Bool_t doPrint=kFALSE) const
Bool_t	IsValidRoc (UInt_t roc) const
Bool_t	IsValidNx (UInt_t roc, UInt_t nx) const
Bool_t	IsValidCh (UInt_t ch) const
UInt_t	GetDetector (UInt_t roc, UInt_t nx) const
ESTSSide	GetSide (UInt_t roc, UInt_t nx) const
UInt_t	GetConnector (UInt_t roc, UInt_t nx) const
UInt_t	GetStrip (UInt_t roc, UInt_t nx, UInt_t ch) const
UInt_t	GetStrip (UInt_t det, UInt_t side, UInt_t conn, UInt_t ch) const
void	SetConnection (UInt_t roc, UInt_t nx, UInt_t det, ESTSSide side, UInt_t conn)
void	SetMapping (UInt_t det, UInt_t side, UInt_t conn, const Char_t *mapping)
Bool_t	IsMappingSet (UInt_t det, UInt_t side, UInt_t conn) const
	TSTSTopology ()
	~TSTSTopology ()
Int_t	GetRocArrSize () const
Int_t	GetNxArrSize () const
Int_t	GetNAdcBins () const
Int_t	GetNCh () const
ESTSSide	GetNSides () const
Int_t	GetNStrips (Int_t detId) const
Int_t	GetNRocs () const
Int_t	GetNNxs () const
Bool_t	IsValidRoc (Int_t rocId) const
Bool_t	IsValidNx (Int_t rocId, Int_t nxId) const
Bool_t	IsValidCh (Int_t ch) const
Bool_t	IsValidDet (Int_t det) const
Int_t	GetDetector (Int_t rocId, Int_t nxId=kIrrelevantNxId) const
ESTSSide	GetSide (Int_t rocId, Int_t nxId=kIrrelevantNxId) const
ESTSOddEvenConnectors	GetOddEvenConn (Int_t rocId, Int_t nxId) const
Int_t	GetStrip (Int_t rocId, Int_t nxId, Int_t nxCh) const
Static Public Member Functions
static UInt_t	GetNNxCh ()
static Char_t	GetSideName (UInt_t side)
static ESTSSide	OppositeSide (ESTSSide side)
static Int_t	GetNDetectors ()
static Char_t	GetSideName (Int_t side)
Protected Member Functions
Double_t	GetStripNoCheck (UInt_t det, UInt_t side, UInt_t conn, UInt_t ch) const
UInt_t	GetStripCheckNegative (UInt_t det, UInt_t side, UInt_t conn, UInt_t ch) const
Int_t	GetStrip_Dem0b (ESTSSide side, ESTSOddEvenConnectors conn, Int_t nxCh) const
Int_t	GetStrip_Dem2b4 (ESTSSide side, ESTSOddEvenConnectors conn, Int_t nxCh) const
Int_t	GetStrip_DemFsd (ESTSSide side, ESTSOddEvenConnectors conn, Int_t nxCh) const
Protected Attributes
std::vector< std::vector < TDetSideConn > >	fRocNxConnections
std::vector< std::vector < std::vector< TF1 * > > >	fMappings
std::vector< Int_t >	fValidRocs
std::vector< std::vector< Int_t > >	fValidNxs
std::vector< Int_t >	fNStrips
std::vector< Int_t >	fRoc2Detector
std::vector< ESTSSide >	fRoc2Side
std::vector< std::vector < ESTSOddEvenConnectors > >	fNx2Conn
Int_t	fNRocs
Int_t	fNNxs
Static Protected Attributes
static UInt_t const	kNNxCh = 128
static Int_t const	kNDetectors = 3
static Int_t const	kRocArrSize = 7
static Int_t const	kNxArrSize = 3
static Int_t const	kNAdcBins = 4096
static Int_t const	kNCh = 128
static Int_t const	kInvalidDetectorId = -1
static Int_t const	kIrrelevantNxId = -2

---

Detailed Description

Definition at line 7 of file TSTSTopology.h.

---

Member Enumeration Documentation

enum TSTSTopology::ESTSOddEvenConnectors

Enumerator:

kOddConnectors
kEvenConnectors

Definition at line 10 of file TSTSTopology.h.

enum TSTSTopology::ESTSSide

Enumerator:

kPSide
kNSide
kNSides
kAllSides
kPSide
kNSide
kNSides

Definition at line 9 of file TSTSTopology.h.

enum TSTSTopology::ESTSSide

Enumerator:

kPSide
kNSide
kNSides
kAllSides
kPSide
kNSide
kNSides

Definition at line 9 of file TSTSTopology.h.

---

Constructor & Destructor Documentation

TSTSTopology::TSTSTopology

(

)

[inline]

Definition at line 56 of file TSTSTopology.h.

TSTSTopology::~TSTSTopology

(

)

[virtual]

Definition at line 6 of file TSTSTopology.cxx.

References fMappings.

TSTSTopology::TSTSTopology

(

)

TSTSTopology::~TSTSTopology

(

)

---

Member Function Documentation

UInt_t TSTSTopology::GetConnector	(	UInt_t	roc,
		UInt_t	nx
	)			const

Definition at line 121 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by GetStrip(), and TestMapping().

UInt_t TSTSTopology::GetDetArrSize

(

)

const

Definition at line 94 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TSTSProc::CreateClusterizers(), TSTSProc::CreateHistograms(), TSTSProc::CreateHiterizers(), TSTSProc::FinalizeEvent(), and TestMapping().

Int_t TSTSTopology::GetDetector	(	Int_t	rocId,
		Int_t	nxId = kIrrelevantNxId
	)			const [inline]

Definition at line 61 of file TSTSTopology.h.

References fRoc2Detector.

UInt_t TSTSTopology::GetDetector	(	UInt_t	roc,
		UInt_t	nx
	)			const

Definition at line 107 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TSTSProc::FinalizeEvent(), GetStrip(), TSTSProc::ProcessValidMessage(), and TestMapping().

Int_t TSTSTopology::GetNAdcBins

(

)

const [inline]

Definition at line 50 of file TSTSTopology.h.

References kNAdcBins.

Int_t TSTSTopology::GetNCh

(

)

const [inline]

Definition at line 51 of file TSTSTopology.h.

References kNCh.

static Int_t TSTSTopology::GetNDetectors

(

)

[inline, static]

Definition at line 52 of file TSTSTopology.h.

References kNDetectors.

Referenced by TSTSProc::EvaluateHits(), TSTSEvent::Init(), IsValidDet(), and TSTSProc::ProcessValidMessage().

static UInt_t TSTSTopology::GetNNxCh

(

)

[inline, static]

Definition at line 69 of file TSTSTopology.h.

References kNNxCh.

Referenced by GetStripArrSize(), IsValidCh(), SetMapping(), and TestMapping().

Int_t TSTSTopology::GetNNxs

(

)

const [inline]

Definition at line 56 of file TSTSTopology.h.

References fNNxs.

Int_t TSTSTopology::GetNRocs

(

)

const [inline]

Definition at line 55 of file TSTSTopology.h.

References fNRocs.

ESTSSide TSTSTopology::GetNSides

(

)

const [inline]

Definition at line 53 of file TSTSTopology.h.

Referenced by TSTSProc::EvaluateHits(), and TSTSProc::ProcessValidMessage().

Int_t TSTSTopology::GetNStrips

(

Int_t

detId

)

const [inline]

Definition at line 54 of file TSTSTopology.h.

References fNStrips.

UInt_t TSTSTopology::GetNxArrSize

(

UInt_t

roc

)

const

Definition at line 84 of file TSTSTopology.cxx.

References fRocNxConnections.

UInt_t TSTSTopology::GetNxArrSize

(

)

const

Definition at line 73 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TestMapping().

Int_t TSTSTopology::GetNxArrSize

(

)

const [inline]

Definition at line 49 of file TSTSTopology.h.

References kNxArrSize.

ESTSOddEvenConnectors TSTSTopology::GetOddEvenConn	(	Int_t	rocId,
		Int_t	nxId
	)			const [inline]

Definition at line 64 of file TSTSTopology.h.

References fNx2Conn.

Referenced by GetStrip().

UInt_t TSTSTopology::GetRocArrSize

(

)

const

Definition at line 59 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TSTSProc::FinalizeEvent(), and TestMapping().

Int_t TSTSTopology::GetRocArrSize

(

)

const [inline]

Definition at line 48 of file TSTSTopology.h.

References kRocArrSize.

ESTSSide TSTSTopology::GetSide	(	Int_t	rocId,
		Int_t	nxId = kIrrelevantNxId
	)			const [inline]

Definition at line 62 of file TSTSTopology.h.

References fRoc2Side.

TSTSTopology::ESTSSide TSTSTopology::GetSide	(	UInt_t	roc,
		UInt_t	nx
	)			const

Definition at line 114 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TSTSProc::FinalizeEvent(), GetStrip(), TSTSProc::ProcessValidMessage(), and TestMapping().

static Char_t TSTSTopology::GetSideName

(

UInt_t

side

)

[inline, static]

Definition at line 84 of file TSTSTopology.h.

References kPSide.

Referenced by TSTSProc::CreateHistograms(), GetStripCheckNegative(), TSTSClusterizer::PrintBuffer(), and TestMapping().

static Char_t TSTSTopology::GetSideName

(

Int_t

side

)

[inline, static]

Definition at line 63 of file TSTSTopology.h.

References kPSide.

UInt_t TSTSTopology::GetStrip	(	UInt_t	roc,
		UInt_t	nx,
		UInt_t	ch
	)			const

Definition at line 154 of file TSTSTopology.cxx.

References GetConnector(), GetDetector(), and GetSide().

Referenced by TSTSProc::FinalizeEvent(), GetStripArrSize(), and TSTSProc::ProcessValidMessage().

UInt_t TSTSTopology::GetStrip	(	UInt_t	det,
		UInt_t	side,
		UInt_t	conn,
		UInt_t	ch
	)			const

Definition at line 147 of file TSTSTopology.cxx.

References GetStripNoCheck().

Int_t TSTSTopology::GetStrip	(	Int_t	rocId,
		Int_t	nxId,
		Int_t	nxCh
	)			const

Definition at line 95 of file TSTSTopology.cxx.

References GetDetector(), GetOddEvenConn(), GetSide(), GetStrip_Dem0b(), GetStrip_Dem2b4(), and GetStrip_DemFsd().

Int_t TSTSTopology::GetStrip_Dem0b	(	ESTSSide	side,
		ESTSOddEvenConnectors	conn,
		Int_t	nxCh
	)			const [protected]

Definition at line 118 of file TSTSTopology.cxx.

References kEvenConnectors, and kPSide.

Referenced by GetStrip().

Int_t TSTSTopology::GetStrip_Dem2b4	(	ESTSSide	side,
		ESTSOddEvenConnectors	conn,
		Int_t	nxCh
	)			const [protected]

Definition at line 143 of file TSTSTopology.cxx.

References kEvenConnectors, and kPSide.

Referenced by GetStrip().

Int_t TSTSTopology::GetStrip_DemFsd	(	ESTSSide	side,
		ESTSOddEvenConnectors	conn,
		Int_t	nxCh
	)			const [protected]

Definition at line 167 of file TSTSTopology.cxx.

References kEvenConnectors, and kPSide.

Referenced by GetStrip().

UInt_t TSTSTopology::GetStripArrSize	(	UInt_t	det,
		UInt_t	side
	)			const

Definition at line 164 of file TSTSTopology.cxx.

References fMappings, GetNNxCh(), GetStrip(), and IsMappingSet().

Referenced by TSTSProc::CreateHistograms(), and TestMapping().

UInt_t TSTSTopology::GetStripCheckNegative	(	UInt_t	det,
		UInt_t	side,
		UInt_t	conn,
		UInt_t	ch
	)			const [protected]

Definition at line 135 of file TSTSTopology.cxx.

References GetSideName(), and GetStripNoCheck().

Referenced by TestMapping().

Double_t TSTSTopology::GetStripNoCheck	(	UInt_t	det,
		UInt_t	side,
		UInt_t	conn,
		UInt_t	ch
	)			const [protected]

Definition at line 128 of file TSTSTopology.cxx.

References fMappings.

Referenced by GetStrip(), and GetStripCheckNegative().

Bool_t TSTSTopology::IsMappingSet	(	UInt_t	det,
		UInt_t	side,
		UInt_t	conn
	)			const

Definition at line 217 of file TSTSTopology.cxx.

References fMappings.

Referenced by GetStripArrSize().

Bool_t TSTSTopology::IsValidCh

(

UInt_t

ch

)

const

Definition at line 210 of file TSTSTopology.cxx.

References GetNNxCh().

Bool_t TSTSTopology::IsValidCh

(

Int_t

ch

)

const [inline]

Definition at line 59 of file TSTSTopology.h.

References kNCh.

Bool_t TSTSTopology::IsValidDet

(

Int_t

det

)

const [inline]

Definition at line 60 of file TSTSTopology.h.

References GetNDetectors().

Bool_t TSTSTopology::IsValidNx	(	Int_t	rocId,
		Int_t	nxId
	)			const [inline]

Definition at line 58 of file TSTSTopology.h.

References fValidNxs.

Bool_t TSTSTopology::IsValidNx	(	UInt_t	roc,
		UInt_t	nx
	)			const

Definition at line 197 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TestMapping().

Bool_t TSTSTopology::IsValidRoc

(

Int_t

rocId

)

const [inline]

Definition at line 57 of file TSTSTopology.h.

References fValidRocs.

Bool_t TSTSTopology::IsValidRoc

(

UInt_t

roc

)

const

Definition at line 182 of file TSTSTopology.cxx.

References fRocNxConnections.

Referenced by TSTSProc::FinalizeEvent(), and TestMapping().

static ESTSSide TSTSTopology::OppositeSide

(

ESTSSide

side

)

[inline, static]

Definition at line 85 of file TSTSTopology.h.

References kNSide, and kPSide.

Referenced by TSTSHiterizer::IsClusterBuffersContainSufficientTimeInterval(), and TSTSHiterizer::ReconstructHits().

void TSTSTopology::SetConnection	(	UInt_t	roc,
		UInt_t	nx,
		UInt_t	det,
		ESTSSide	side,
		UInt_t	conn
	)

Definition at line 23 of file TSTSTopology.cxx.

References fRocNxConnections.

void TSTSTopology::SetMapping	(	UInt_t	det,
		UInt_t	side,
		UInt_t	conn,
		const Char_t *	mapping
	)

Definition at line 39 of file TSTSTopology.cxx.

References fMappings, GetNNxCh(), and kNSides.

void TSTSTopology::TestMapping

(

Bool_t

doPrint = kFALSE

)

const

Definition at line 233 of file TSTSTopology.cxx.

References TSTSTopology::TRocNxChConn::fCh, TSTSTopology::TRocNxChConn::fConn, TSTSTopology::TRocNxChConn::fNx, TSTSTopology::TRocNxChConn::fRoc, TSTSTopology::TRocNxChConn::fSet, GetConnector(), GetDetArrSize(), GetDetector(), GetNNxCh(), GetNxArrSize(), GetRocArrSize(), GetSide(), GetSideName(), GetStripArrSize(), GetStripCheckNegative(), IsValidNx(), IsValidRoc(), and kNSides.

---

Field Documentation

std::vector< std::vector < std::vector < TF1 * > > > TSTSTopology::fMappings [protected]

Definition at line 45 of file TSTSTopology.h.

Referenced by GetStripArrSize(), GetStripNoCheck(), IsMappingSet(), SetMapping(), and ~TSTSTopology().

Int_t TSTSTopology::fNNxs [protected]

Definition at line 37 of file TSTSTopology.h.

Referenced by GetNNxs().

Int_t TSTSTopology::fNRocs [protected]

Definition at line 36 of file TSTSTopology.h.

Referenced by GetNRocs().

std::vector< Int_t > TSTSTopology::fNStrips [protected]

Definition at line 25 of file TSTSTopology.h.

Referenced by GetNStrips().

std::vector< std::vector< ESTSOddEvenConnectors > > TSTSTopology::fNx2Conn [protected]

Definition at line 28 of file TSTSTopology.h.

Referenced by GetOddEvenConn().

std::vector< Int_t > TSTSTopology::fRoc2Detector [protected]

Definition at line 26 of file TSTSTopology.h.

Referenced by GetDetector().

std::vector< ESTSSide > TSTSTopology::fRoc2Side [protected]

Definition at line 27 of file TSTSTopology.h.

Referenced by GetSide().

std::vector< std::vector< TDetSideConn > > TSTSTopology::fRocNxConnections [protected]

Definition at line 44 of file TSTSTopology.h.

Referenced by GetConnector(), GetDetArrSize(), GetDetector(), GetNxArrSize(), GetRocArrSize(), GetSide(), IsValidNx(), IsValidRoc(), and SetConnection().

std::vector< std::vector< Int_t > > TSTSTopology::fValidNxs [protected]

Definition at line 24 of file TSTSTopology.h.

Referenced by IsValidNx().

std::vector< Int_t > TSTSTopology::fValidRocs [protected]

Definition at line 23 of file TSTSTopology.h.

Referenced by IsValidRoc().

Int_t const TSTSTopology::kInvalidDetectorId = -1 [static, protected]

Definition at line 20 of file TSTSTopology.h.

Int_t const TSTSTopology::kIrrelevantNxId = -2 [static, protected]

Definition at line 21 of file TSTSTopology.h.

Int_t const TSTSTopology::kNAdcBins = 4096 [static, protected]

Definition at line 18 of file TSTSTopology.h.

Referenced by GetNAdcBins().

Int_t const TSTSTopology::kNCh = 128 [static, protected]

Definition at line 19 of file TSTSTopology.h.

Referenced by GetNCh(), and IsValidCh().

Int_t const TSTSTopology::kNDetectors = 3 [static, protected]

Definition at line 14 of file TSTSTopology.h.

Referenced by GetNDetectors().

UInt_t const TSTSTopology::kNNxCh = 128 [static, protected]

Definition at line 14 of file TSTSTopology.h.

Referenced by GetNNxCh().

Int_t const TSTSTopology::kNxArrSize = 3 [static, protected]

Definition at line 16 of file TSTSTopology.h.

Referenced by GetNxArrSize().

Int_t const TSTSTopology::kRocArrSize = 7 [static, protected]

Definition at line 15 of file TSTSTopology.h.

Referenced by GetRocArrSize().

---

The documentation for this class was generated from the following files:

• beamtime/cosy-jan12/go4/STS/TSTSTopology.h (r4864/r3122)
• beamtime/sts-lasertest/go4/STS/TSTSTopology.h (r4864/r3054)
• beamtime/cosy-jan12/go4/STS/TSTSTopology.cxx (r4864/r3122)
• beamtime/sts-lasertest/go4/STS/TSTSTopology.cxx (r4864/r3054)
