#include <TTrbProc.h>

Inheritance diagram for TTrbProc:

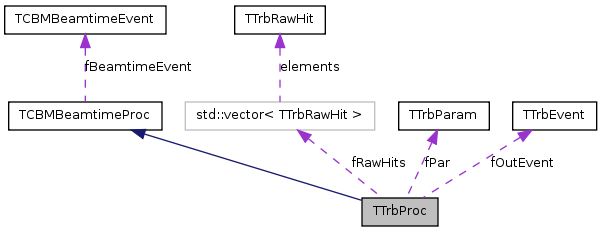

Collaboration diagram for TTrbProc:

Public Member Functions
	TTrbProc ()
	TTrbProc (const char *name)
virtual	~TTrbProc ()
virtual void	InitEvent (TGo4EventElement *evt)
virtual void	ProcessSubevent (TGo4MbsSubEvent *subevt)
virtual Bool_t	BuildEvent (TGo4EventElement *)
virtual void	FinalizeEvent ()
Short_t	GetTriggerNumber () const
Int_t	GetEventNumber () const
Long_t	ExecuteScript (const char *script_name)
Protected Member Functions
void	ProcessTrbSubevent (Trb_Subevent *sub)
void	ResetTDCV3TriggerTimes ()
void	ProcessTDCV3 (Trb_Subevent *sub)
void	EvaluateTDCV3Data (UShort_t board=0)
void	DumpData (Trb_Subevent *hadsubevent)
Bool_t	IsAnyCalibration () const
Bool_t	WithoutCalibration () const
double	GetLinearFineCalibration (unsigned fine_cnt)
void	AddSubProcessor (TCBMBeamtimeProc *)
Protected Attributes
TCBMBeamtimeEvent *	fBeamtimeEvent
TGo4MbsEvent *	fMbsInput
Short_t	fMbsTriggerNumber
Int_t	fMbsEventNumber
Private Member Functions
void	DoCalibration (UShort_t board, UShort_t tdc, UShort_t ch, Bool_t generalcal, Bool_t contcal)
void	GenHistos1 (TString dirname, Int_t b, Int_t t)
void	GenHistos2 (TString dirname, Int_t b, Int_t t, Int_t i)
void	GenHistos3 (TString dirname, Int_t b, Int_t t, Int_t i)
Private Attributes
TH1 *	hTDCDataVolume
TH1 *	hSubevSize
bool	fCanAssignTrigger
bool	fCurrentTriggerType
unsigned	fLastTriggerId
int	fLostTriggerCnt
int	fTakenTriggerCnt
TH1 *	hLostRate
TH1 *	hEventMultipl [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hPulserMultipl [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
int	fNumHitsSelected [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hTriggerCount [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hChannelCount [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hLeadingCoarseAll [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hLeadingFineAll [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hLeadingDeltaCalAll [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hLeadingDeltaCalAllFine [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hTrailingCoarseAll [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hTrailingFineAll [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hTrailingDeltaCalAll [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hLeadingCoarse [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hLeadingFine [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hLeadingFineBuffer [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hLeadingDeltaCal [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hLeadingDeltaRef [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hTrailingCoarse [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hTrailingFine [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hTrailingFineBuffer [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hTrailingDeltaCal [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hTrailingDeltaRef [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH2 *	hLeadingCoarseAllChans [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH2 *	hLeadingFineAllChans [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH2 *	hTrailingCoarseAllChans [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH2 *	hTrailingFineAllChans [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TH1 *	hCalcBinWidth [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hCalBinTime [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
TH1 *	hTrbTriggerCount
TH1 *	hEpoch [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TGo4WinCond *	cLeadingFineTimeGate [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TGo4WinCond *	cLeadingCoarseTimeGate [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TGo4WinCond *	cTrailingFineTimeGate [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TGo4WinCond *	cTrailingCoarseTimeGate [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TGo4WinCond *	cLeadingDeltaTimeGate [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
TGo4WinCond *	cTrailingDeltaTimeGate [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC]
Bool_t	fbHasCalibration [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][TRB_TDC3_CHANNELS]
Bool_t	fNoCalibration
TTrbParam *	fPar
TTrbEvent *	fOutEvent
UInt_t	fSubeventStatus
Double_t	fLastTrigTime [TRB_TDC3_NUMBOARDS][TRB_TDC3_NUMTDC][2]
std::vector< TTrbRawHit >	fRawHits [TRB_TDC3_NUMBOARDS]
Static Private Attributes
static const TString	leadingcoarseallname = "LeadingCoarseAllChans"
static const TString	leadingfineallname = "LeadingFineAllChans"
static const TString	leadingdeltacalallname = "LeadingDeltaCalAllChans"
static const TString	trailingcoarseallname = "TrailingCoarseAllChans"
static const TString	trailingfineallname = "TrailingFineAllChans"
static const TString	trailingdeltacalallname = "TrailingDeltaCalAllChans"

Detailed Description

Definition at line 13 of file TTrbProc.h.

Constructor & Destructor Documentation

TTrbProc::TTrbProc ( )

Definition at line 216 of file TTrbProc.cxx.

TTrbProc::TTrbProc ( const char * name )

Init user analysis objects

Histograms

Reset calibration flag for each channel

Leading edges

Trailing edges

Calibration histograms

Reset time bin correction arrays

Maps for all channels - TH2 (resolution lowered by 2 for coarse and by4 in fine)

Leading edges

Trailing edges

Trigger count

HEADER - counter of tdc and data headers

this is within the tdc data (after tdc header) [ INVALID - counter of data headers with the (error bits != 0) LEADING - counter of data words with the (isrising bit == 1) TRAILING - counter of data words with the (isrising bit == 0) EPOCH - counter of epoch words DEBUG - counter of debug words RESERVED - counter of reserved words ]

(at least must be) TOTAL = HEADER + LEADING + TRAILING + EPOCH + DEBUG + RESERVED

Conditions

Absolute times - Leading edges

Absolute times - Trailing edges

Delta times - Leading Edges

Delta times - Trailing Edges

Pictures

Leading edges

Trailing edges

Here we optionally override conditions with setup macro, if existing

Here we protect calibration histogramms

Definition at line 221 of file TTrbProc.cxx.

References TTrbEvent::AssertTDC(), TTrbEvent::AssertTRB(), cLeadingCoarseTimeGate, cLeadingDeltaTimeGate, cLeadingFineTimeGate, cTrailingCoarseTimeGate, cTrailingDeltaTimeGate, cTrailingFineTimeGate, TCBMBeamtimeProc::ExecuteScript(), fbHasCalibration, TTrbParam::fEventCount, TTrbParam::fillRaw, fLastTriggerId, fLostTriggerCnt, fOutEvent, fPar, fTakenTriggerCnt, GenHistos1(), GenHistos2(), GenHistos3(), hCalBinTime, hCalcBinWidth, hChannelCount, hEventMultipl, hLeadingCoarse, hLeadingCoarseAll, hLeadingCoarseAllChans, hLeadingDeltaCal, hLeadingDeltaCalAll, hLeadingDeltaCalAllFine, hLeadingDeltaRef, hLeadingFine, hLeadingFineAll, hLeadingFineAllChans, hLeadingFineBuffer, hLostRate, hPulserMultipl, hSubevSize, hTDCDataVolume, hTrailingCoarse, hTrailingCoarseAll, hTrailingCoarseAllChans, hTrailingDeltaCal, hTrailingDeltaCalAll, hTrailingDeltaRef, hTrailingFine, hTrailingFineAll, hTrailingFineAllChans, hTrailingFineBuffer, hTrbTriggerCount, hTriggerCount, leadingcoarseallname, leadingdeltacalallname, leadingfineallname, TTrbParam::processTrailing, TTrbParam::SetConfigTrbs(), trailingcoarseallname, trailingdeltacalallname, trailingfineallname, TRB_TDC3_COARSEBINS, TRB_TDC3_COARSEUNIT, TRB_TDC3_FINEBINS, and WithoutCalibration().

TTrbProc::~TTrbProc ( ) [virtual]

Definition at line 569 of file TTrbProc.cxx.

Member Function Documentation

void TCBMBeamtimeProc::AddSubProcessor ( TCBMBeamtimeProc * proc ) [protected, inherited]

Definition at line 41 of file TCBMBeamtimeProc.cxx.

References TCBMBeamtimeProc::fSubProcessors.

Referenced by TCernGem12DetectorProc::TCernGem12DetectorProc(), TCernGem12FinalProc::TCernGem12FinalProc(), TCernGem12UnpackProc::TCernGem12UnpackProc(), TCernOct11DetectorProc::TCernOct11DetectorProc(), TCernOct11UnpackProc::TCernOct11UnpackProc(), TCernOct12DetectorProc::TCernOct12DetectorProc(), TCernOct12FinalProc::TCernOct12FinalProc(), TCernOct12UnpackProc::TCernOct12UnpackProc(), TCosyJan12DetectorProc::TCosyJan12DetectorProc(), TCosyJan12FinalProc::TCosyJan12FinalProc(), TCosyJan12UnpackProc::TCosyJan12UnpackProc(), TCosyNov11DetectorProc::TCosyNov11DetectorProc(), TCosyNov11UnpackProc::TCosyNov11UnpackProc(), TGsiAug12CalibrationProc::TGsiAug12CalibrationProc(), TGsiAug12DetectorProc::TGsiAug12DetectorProc(), TGsiAug12OutputProc::TGsiAug12OutputProc(), TGsiAug12TrackingProc::TGsiAug12TrackingProc(), TGsiAug12UnpackProc::TGsiAug12UnpackProc(), TLaserTest12DetectorProc::TLaserTest12DetectorProc(), and TLaserTest12UnpackProc::TLaserTest12UnpackProc().

Bool_t TCBMBeamtimeProc::BuildEvent ( TGo4EventElement * outevnt ) [virtual, inherited]

Reimplemented in TCernNov10Proc, TCosyDec10Proc, TRocProc, and TSpadicProc.

Definition at line 52 of file TCBMBeamtimeProc.cxx.

References TCBMBeamtimeProc::fBeamtimeEvent, TCBMBeamtimeProc::FinalizeEvent(), TCBMBeamtimeProc::fMbsEventNumber, TCBMBeamtimeProc::fMbsInput, TCBMBeamtimeProc::fMbsTriggerNumber, TCBMBeamtimeProc::fProcIterator, TCBMBeamtimeProc::InitEvent(), and TCBMBeamtimeProc::ProcessSubevent().

void TTrbProc::DoCalibration	(	UShort_t	board,
		UShort_t	tdc,
		UShort_t	ch,
		Bool_t	generalcal,
		Bool_t	contcal
	)			`[private]`

We use sum of leading and trailing times for calibration

Since we did clone originals here!

Definition at line 1374 of file TTrbProc.cxx.

References fbHasCalibration, fPar, hCalBinTime, hCalcBinWidth, hLeadingFine, hLeadingFineBuffer, hTrailingFine, hTrailingFineBuffer, TTrbParam::processTrailing, and TRB_TDC3_COARSEUNIT.

Referenced by EvaluateTDCV3Data().

void TTrbProc::DumpData ( Trb_Subevent * hadsubevent ) [protected]

Default printout of data fields if switched on in parameter

Definition at line 1440 of file TTrbProc.cxx.

References Trb_Subevent::Alignment(), Trb_Subevent::Data(), Trb_Subevent::GetDecoding(), and Trb_Subevent::GetSize().

Referenced by ProcessTrbSubevent().

void TTrbProc::EvaluateTDCV3Data ( UShort_t board = 0 ) [protected]

Evaluate data method

First half for leading, second for trailing

Check that only general or only continuous calibration is switched on

Get the pointer to the board

Check here if input data was valid

Check if the calibration should be done on the current event (according to the period)

Reference channel calibrating and last trig time filling (from the reference channel) Here refchCounter is the counter of reference channel hits. refchCounter should be 1 for the channel where the data comes (where datachCounter > 0), other case is errornous

Initialization of counters

Counting the number of hits in the reference and other channels of each TDC Calibrating reference channel if needed

This is a reference channel - so, calibrating a reference channel

Everything is ok in case if we have data packages only in the TDCs that have only one hit in the reference channel We may also have reference channel hits with no data channel hits. I allow this by now.

Here we check if the reference channel has calibration. If calibrated - compute the difference If not, skip only difference computation, but keep collecting the statistics

last trig time from the refHit - ONLY FOR LEADING

last trig time from the refHit - ONLY FOR TRAILING

Main loop

Fine

Coarse

Fine

TODO: Do we need to compute differences of the reference channel (to itself)?

Update calibration if necessary TODO - optimize (how?)

Skip not configured delta channel - in fact, obsolete

Full time current

Full time reference is formed in the previous loop through the RAW hits.

Delta T = full(cur) - full(ref)

Full time current

Full time difference

Histograms

PAIRS

Sending the output data!!!

Full time current

Full time difference

Histograms

PAIRS

Sending the output data!!!

Definition at line 1017 of file TTrbProc.cxx.

References TTrbEvent::AssertTDC(), TTrbParam::calibrationPeriod, cLeadingCoarseTimeGate, cLeadingDeltaTimeGate, cLeadingFineTimeGate, TTrbParam::continuousCalibration, cTrailingCoarseTimeGate, cTrailingFineTimeGate, DoCalibration(), EPRINT, fbHasCalibration, fCanAssignTrigger, TTrbParam::fEventCount, TTrbData::fHits, fLastTrigTime, fNumHitsSelected, fOutEvent, fPar, fRawHits, fSubeventStatus, TTrbParam::generalCalibration, TTrbRawHit::GetChannel(), TTrbRawHit::GetLCTime(), TTrbRawHit::GetLEpoch(), TTrbRawHit::GetLFTime(), GetLinearFineCalibration(), TTrbRawHit::GetTCTime(), TTrbRawHit::GetTDC(), TTrbRawHit::GetTEpoch(), TTrbRawHit::GetTFTime(), hCalBinTime, hChannelCount, hLeadingCoarse, hLeadingCoarseAll, hLeadingCoarseAllChans, hLeadingDeltaCal, hLeadingDeltaCalAll, hLeadingDeltaCalAllFine, hLeadingFine, hLeadingFineAll, hLeadingFineAllChans, hLeadingFineBuffer, hTrailingCoarse, hTrailingCoarseAll, hTrailingCoarseAllChans, hTrailingDeltaCal, hTrailingDeltaCalAll, hTrailingFine, hTrailingFineAll, hTrailingFineAllChans, hTrailingFineBuffer, hTriggerCount, IsAnyCalibration(), TTrbRawHit::IsLeading(), TTrbRawHit::IsTrailing(), TTrbParam::processTrailing, TTrbParam::refChannel, TTrbRawHit::SetLeadingTimeCorr(), TTrbRawHit::SetTrailingTimeCorr(), TRB_TDC3_COARSEUNIT, TRB_TDC3_EPOCHUNIT, TRB_TDC3_NUMTDC, and WithoutCalibration().

Referenced by ProcessTrbSubevent().

Long_t TCBMBeamtimeProc::ExecuteScript ( const char * script_name ) [inherited]

Temporary here - will be from 4.5.3 version in distribution

Definition at line 142 of file TCBMBeamtimeProc.cxx.

Referenced by TCernOct12UnpackProc::TCernOct12UnpackProc(), TFaspProc::TFaspProc(), TFiberHodProc::TFiberHodProc(), TSpadicV10Proc::TSpadicV10Proc(), and TTrbProc().

virtual void TCBMBeamtimeProc::FinalizeEvent ( ) [inline, virtual, inherited]

Reimplemented in TGem1Proc, TGem2Proc, TTrackingProc, TTRDBucharestProc, TTRDDubnaProc, TTRDMuensterFrankfurtProc, TRICHProc, TBeamMonitorProc, TTRDBucharestProc, TTRDMuensterFrankfurtProc, TRICHProc, TBeamMonitorProc, TTrackingProc, TGEMProc, TSTSProc, TBeamMonitorProc, TTrackingProc, TBucharestProc, TDiamondProc, TRootConverterProc, TRossendorfProc, TRPCProc, TSiStripsProc, TBeamMonitorProc, TGet4v1Proc, TMatchingProc, TPlasticsProc, TRootConverterProc, TRpcProc, TScalersProc, TVftxProc, TBucharestProc, TBeamMonitorProc, TRootConverterProc, TRossendorfProc, TRPCProc, TVftxProc, TMatchingProc, TPadRpcProc, TPlasticsProc, TRootConverterProc, TRpcProc, TScalersProc, TVftxProc, TSTSProc, TGet4v1Proc, TMatchingProc, TPadRpcProc, TPlasticsProc, TRootConverterProc, TRpcProc, TScalersProc, TVftxProc, TEpicsProc, TFiberHodProc, TRocProc, and TSpadicV10Proc.

Definition at line 39 of file TCBMBeamtimeProc.h.

Referenced by TCBMBeamtimeProc::BuildEvent().

void TTrbProc::GenHistos1	(	TString	dirname,
		Int_t	b,
		Int_t	t
	)			`[private]`

Aux procedures of generating histograms. Called only from the constructor.

histo name tbins trange hLeadingCoarseAll TRB_TDC3_COARSEBINS TRB_TDC3_EPOCHUNIT hLeadingFineAll TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS hLeadingDeltaCalAll TRB_TDC3_DELTAHISTBINS / 4 TRB_TDC3_DELTAHISTBINS hTrailingCoarseAll TRB_TDC3_COARSEBINS TRB_TDC3_EPOCHUNIT hTrailingFineAll TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS hTrailingDeltaCalAll TRB_TDC3_DELTAHISTBINS / 4 TRB_TDC3_DELTAHISTBINS hEpoch TRB_TDC3_EPOCHBINS / 1024 TRB_TDC3_EPOCHUNIT * TRB_TDC3_EPOCHBINS

Definition at line 38 of file TTrbProc.cxx.

References fPar, hEpoch, hLeadingCoarseAll, hLeadingDeltaCalAll, hLeadingDeltaCalAllFine, hLeadingFineAll, hTrailingCoarseAll, hTrailingDeltaCalAll, hTrailingFineAll, leadingcoarseallname, leadingdeltacalallname, leadingfineallname, TTrbParam::processTrailing, trailingcoarseallname, trailingdeltacalallname, trailingfineallname, TRB_TDC3_DELTAHISTBINS, TRB_TDC3_EPOCHBINS, and TRB_TDC3_EPOCHUNIT.

Referenced by TTrbProc().

void TTrbProc::GenHistos2	(	TString	dirname,
		Int_t	b,
		Int_t	t,
		Int_t	i
	)			`[private]`

histo name tbins trange hLeadingCoarse TRB_TDC3_COARSEBINS TRB_TDC3_EPOCHUNIT hLeadingFine TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS hLeadingFineBuffer TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS hLeadingDeltaCal TRB_TDC3_DELTAHISTBINS / 4 TRB_TDC3_DELTAHISTBINS hLeadingCorrelFine TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS

Definition at line 103 of file TTrbProc.cxx.

References fPar, hLeadingCoarse, hLeadingDeltaCal, hLeadingDeltaRef, hLeadingFine, hLeadingFineBuffer, IsAnyCalibration(), TTrbParam::refChannel, and TRB_TDC3_DELTAHISTBINS.

Referenced by TTrbProc().

void TTrbProc::GenHistos3	(	TString	dirname,
		Int_t	b,
		Int_t	t,
		Int_t	i
	)			`[private]`

histo name tbins trange hTrailingCoarse TRB_TDC3_COARSEBINS TRB_TDC3_EPOCHUNIT hTrailingFine TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS hTrailingFineBuffer TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS hTrailingDeltaCal TRB_TDC3_DELTAHISTBINS / 4 TRB_TDC3_DELTAHISTBINS hTrailingCorrelFine TRB_TDC3_FINEBINS TRB_TDC3_FINEBINS

Definition at line 164 of file TTrbProc.cxx.

References fPar, hTrailingCoarse, hTrailingDeltaCal, hTrailingDeltaRef, hTrailingFine, hTrailingFineBuffer, TTrbParam::refChannel, and TRB_TDC3_DELTAHISTBINS.

Referenced by TTrbProc().

Int_t TCBMBeamtimeProc::GetEventNumber ( ) const [inline, inherited]

Returns event number of main MBS event

Definition at line 48 of file TCBMBeamtimeProc.h.

References TCBMBeamtimeProc::fMbsEventNumber.

Referenced by TSpadicV10Proc::FinalizeEvent(), TRocProc::FinalizeEvent(), TGet4v1Proc::FinalizeEvent(), TRPCProc::FinalizeEvent(), TGet4v1Proc::ProcessSubevent(), and TGet4v1Proc::ProcessTriggerMessage().

double TTrbProc::GetLinearFineCalibration ( unsigned fine_cnt ) [inline, protected]

Returns time in ns, which correspond to liner calibration of fine counter

Definition at line 48 of file TTrbProc.h.

Referenced by EvaluateTDCV3Data().

Short_t TCBMBeamtimeProc::GetTriggerNumber ( ) const [inline, inherited]

Returns trigger number of main MBS event

Definition at line 45 of file TCBMBeamtimeProc.h.

References TCBMBeamtimeProc::fMbsTriggerNumber.

Referenced by TSpadicV10Proc::FinalizeEvent(), TRocProc::FinalizeEvent(), ProcessSubevent(), TSpadicV10Proc::ProcessSubevent(), TSpadicProc::ProcessSubevent(), TGet4v1Proc::ProcessSubevent(), and TMbsCrateProc::ProcessSubevent().

void TTrbProc::InitEvent ( TGo4EventElement * evt ) [virtual]

Test if we are in beamtime or standalone mode: since output event object is never discarded within processor lifetime, we just search for subevent by name once to speed up processing

Reimplemented from TCBMBeamtimeProc.

Definition at line 573 of file TTrbProc.cxx.

References fOutEvent, and TCBMBeamtimeEvent::GetSubEvent().

Bool_t TTrbProc::IsAnyCalibration ( ) const [inline, protected]

Returns true if any kind of calibration should be done

Definition at line 40 of file TTrbProc.h.

References TTrbParam::continuousCalibration, fPar, and TTrbParam::generalCalibration.

Referenced by EvaluateTDCV3Data(), and GenHistos2().

void TTrbProc::ProcessSubevent ( TGo4MbsSubEvent * subevt ) [virtual]

here the full hadaq event is available at pdata:

subevent index for Go4 output event

skip possible padding bytes before next subevent:

hadaq padding is relative to begin of payload data field!

Reimplemented from TCBMBeamtimeProc.

Definition at line 592 of file TTrbProc.cxx.

References EPRINT, fCurrentTriggerType, fLastTriggerId, fLostTriggerCnt, fNumHitsSelected, fPar, fTakenTriggerCnt, Trb_Subevent::GetDecoding(), Trb_Subevent::GetId(), Trb_Event::GetId(), Trb_Event::GetSeqNr(), Trb_Subevent::GetSize(), Trb_Event::GetSize(), TCBMBeamtimeProc::GetTriggerNumber(), Trb_Subevent::GetTrigNr(), hEventMultipl, hLostRate, hPulserMultipl, hSubevSize, Trb_Subevent::IsSwapped(), TTrbParam::printErrors, ProcessTrbSubevent(), and ResetTDCV3TriggerTimes().

void TTrbProc::ProcessTDCV3 ( Trb_Subevent * sub ) [protected]

Unpack method

hadsubevent->GetSize() gives the number of bytes of the header+data. So, to get the number of words only of a data, divide it by 4 and subtract 4 (header)

Extract data portion from the whole packet (in a loop)

================= RICH-FEE TDC header ========================

HEADER

TOTAL

TRB - TDC

TRB TOTAL

Loop inside the TDC data (after the TDC header)

Look only for the data headers, data words, epoch markers, debug or reserved messages

Data processing

------- The most important lines - forming 'hit' and putting it into the vector -------

---------------------------------------------------------------------------------------

LEADING
