(r4864/r1091)

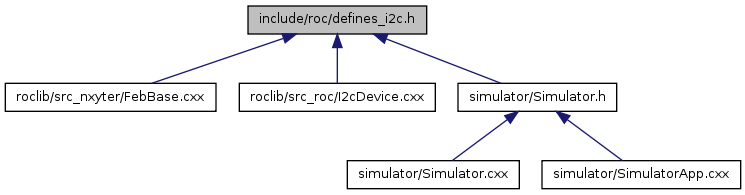

Go to the source code of this file.
Defines | |
| #define | ROC_NX_I2C_DATA 0x410000 |
| #define | ROC_NX_I2C_SLAVEADDR 0x41000C |
| #define | ROC_NX_I2C_REGISTER 0x410010 |
| #define | ROC_NX_I2C_ERROR 0x410020 |
| #define | ROC_NX_I2C_SWITCH 0x410100 |
| #define | ROC_NX_I2C_READ16 0x410104 |
Define Documentation
| #define ROC_NX_I2C_DATA 0x410000 |
{ROC, read/write, 8/16 bit} I2C bus data port. A write into this register or a read from this register will initiate a initiate an I2C bus write or read cycle, respectively. The addressing is determined by the contents of the ROC_I2C1_SWITCH, ROC_I2C1_SLAVEADDR, and ROC_I2C1_REGISTER registers. Any error conditions during the I2C bus cycle are registered in ROC_I2C1_ERROR. The setting of ROC_NX_I2C_READ16 determines whether 8 or 16 bit are read. Write cycles are always 8 bit.
Part of Generic I2C bus interface.
Definition at line 16 of file defines_i2c.h.
Referenced by roc::I2cDevice::addAddrMap(), UdpSimulator::GetReg(), and UdpSimulator::PutReg().
| #define ROC_NX_I2C_ERROR 0x410020 |
{ROC, read-only, 2 bit} Holds error status flags of the last I2C bus access
- bit 0 is set when a bus cycle is aborted due to a timeout, e.g. because a slave does excessive cycle stretching. Firmware after 01070208 has proper pull-ups, so an open I2C bus shouldn't cause timeouts anymore.
- bit 1 is set when an I2C acknowledge is missing, e.g. because no device responds to the slave address.
Part of Generic I2C bus interface.
Definition at line 43 of file defines_i2c.h.
Referenced by roc::I2cDevice::addAddrMap(), and UdpSimulator::GetReg().
| #define ROC_NX_I2C_READ16 0x410104 |
{ROC, write-only, 1 bit} Determines whether 1 or 2 bytes are read in a I2C read cycle. When LSB is 0, the default, only a single byte is read. When LSB is 1, the interface expects that 2 bytes are transmitted from the device and a total of 16 bit is returned in ROC_NX_I2C_DATA.
Part of Generic I2C bus interface.
Definition at line 60 of file defines_i2c.h.
Referenced by roc::I2cDevice::addAddrMap().
| #define ROC_NX_I2C_REGISTER 0x410010 |
{ROC, write-only, 8 bit} Holds the device register address for the next I2C bus access. The register is write-only. The address stays after an I2C bus cycle, it is not auto-incremented.
Part of Generic I2C bus interface.
Definition at line 31 of file defines_i2c.h.
Referenced by roc::I2cDevice::addAddrMap(), and UdpSimulator::PutReg().
| #define ROC_NX_I2C_SLAVEADDR 0x41000C |
{ROC, read/write, 7 bit} Holds the I2C slave address for the next I2C bus access.
Part of Generic I2C bus interface.
Definition at line 23 of file defines_i2c.h.
Referenced by roc::I2cDevice::addAddrMap(), UdpSimulator::GetReg(), and UdpSimulator::PutReg().
| #define ROC_NX_I2C_SWITCH 0x410100 |
{ROC, write-only, 1 bit} Selects the port to be used for the next I2C bus access.
Part of Generic I2C bus interface.
Definition at line 50 of file defines_i2c.h.
Referenced by roc::I2cDevice::addAddrMap(), UdpSimulator::PutReg(), nxyter::FebBase::resetNxI2cBus(), and nxyter::FebBase::resetNxI2cRegister().
