#include <TGet4v1Rec.h>

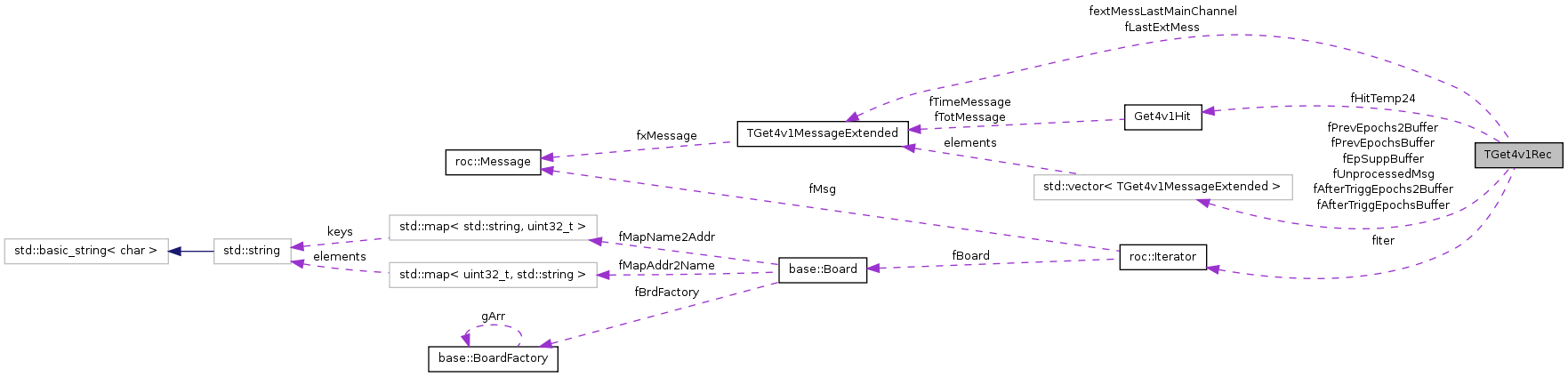

Collaboration diagram for TGet4v1Rec:

Public Member Functions
	TGet4v1Rec ()
UInt_t	GetFullEpochNumber ()
UInt_t	GetFullEpoch2Number (UInt_t uGet4Id)
	TGet4v1Rec ()
ULong64_t	GetFullEpochNumber ()
ULong64_t	GetFullEpoch2Number (UInt_t uGet4Id)
ULong64_t	GetSuperCycleEpOffset ()
ULong64_t	GetSuperCycleEp2Offset (UInt_t uGet4Id)
Double_t	GetSuperCycleEp2OffsetD (UInt_t uGet4Id)
Data Fields
Int_t	fRocId
roc::Iterator	fIter
TH1 *	fMsgTypes
TH1 *	fSysTypes
TH1 *	fSysUserTypes
TH1 *	fAUXch
TH1 *	fTrigger_All
TH1 *	fTrigger_AUX
TH1 *	fTrigger_All_100
TH1 *	fTrigger_All_us
TH1 *	fTrigger_All_ms
TH1 *	fTrigger_All_s
TGo4WinCond *	fTriggerWind
TGo4WinCond *	fAUXWind
TGo4WinCond *	fSelfTrigWind
TH1 *	fEvntMultipl
TH1 *	fALLt
TH1 *	fDATAt
TH1 *	fSelfTriggT
TH1 *	fAUXt [MAX_AUX]
TH1 *	fSYNCt [MAX_SYNC]
uint64_t	fLastTm
uint64_t	fLastTriggerTm
uint64_t	fLastAuxTm [MAX_AUX]
uint64_t	fLastSyncTm [MAX_SYNC]
uint32_t	fLastSyncId [MAX_SYNC]
uint64_t	fStartSyncTm
uint64_t	fStopSyncTm
std::vector < TGet4v1MessageExtended >	fUnprocessedMsg
Int_t	fDabcSeparator
Bool_t	bIgnoreData
Int_t	fIgnoreCnt
uint64_t	fIgnoreTime
uint64_t	fCollectTime
UInt_t	fuCurrEpoch
UInt_t	fuEpochCycle
UInt_t	fuCurrEpoch2 [MAX_GET4_PER_ROC]
UInt_t	fuEpoch2Cycle [MAX_GET4_PER_ROC]
TH1 *	fDistribEpochs
TH2 *	fDistribEpochs2
Bool_t	fbBufferWithLastFullEpoch
std::vector < TGet4v1MessageExtended >	fPrevEpochsBuffer [2]
Bool_t	fbEpochSinceTrigger
std::vector < TGet4v1MessageExtended >	fAfterTriggEpochsBuffer [2]
Bool_t	fbBufferWithLastFullEpoch2 [MAX_GET4_PER_ROC]
std::vector < TGet4v1MessageExtended >	fPrevEpochs2Buffer [MAX_GET4_PER_ROC][2]
Bool_t	fbEpoch2SinceTrigger [MAX_GET4_PER_ROC]
std::vector < TGet4v1MessageExtended >	fAfterTriggEpochs2Buffer [MAX_GET4_PER_ROC][2]
Bool_t	fbPastEpochsRocDone
Bool_t	fbSelectionRocDone
Bool_t	fbPastEpochs2Done [MAX_GET4_PER_ROC]
Bool_t	fbSelectionDone [MAX_GET4_PER_ROC]
TH1 *	fTrigger_Get4Channel [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fTriggerMs_Get4Channel [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fTriggerS_Get4Channel [MAX_GET4_PER_ROC][NB_CHAN_GET4]
uint64_t	fulLastTimeMainChannel
UInt_t	fuLastEpoch2MainChannel
uint64_t	fulLastTimeSecChannel [MAX_SEC_TDC]
UInt_t	fuLastEpoch2SecChannel [MAX_SEC_TDC]
TH2 *	fChannelsMapping
TH1 *	fChannelInputMessCount
TH2 *	fChannelMultiplicity
TH1 *	fTot [MAX_GET4_PER_ROC][NB_CHAN_GET4]
Get4v1Hit	fHitTemp24 [MAX_GET4_PER_ROC][NB_CHAN_GET4]
Bool_t	fb32bitsReadoutDetected
TH2 *	fGet4V1SlowControlType
TH2 *	fGet4V1SlowControlScaler
TH2 *	fGet4V1SlowControlDeadTime
TH1 *	fGet4ErrorChip
TH2 *	fGet4ErrorChan
TH2 *	fGet4ErrorPatt
Bool_t	fbDllFlag [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH2 *	fGet4V1DllLockBit
TGet4v1MessageExtended	fLastExtMess [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH2 *	fGet4V1HitsDistanceNs [MAX_GET4_PER_ROC]
TH2 *	fGet4V1HitsDistanceUs [MAX_GET4_PER_ROC]
TH2 *	fGet4V1HitsDistanceMs [MAX_GET4_PER_ROC]
TH2 *	fGet4V1HitsDistanceS [MAX_GET4_PER_ROC]
TH1 *	fLeadingFTS [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fTrailingFTS [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fLeadingDnl [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fLeadingDnlSum [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fTrailingDnl [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fTrailingDnlSum [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fTimeDiffInsideChip [2][NB_CHAN_GET4 *(NB_CHAN_GET4-1)/2]
TH1 *	fTimeDiffBetweenChips [NB_CHAN_GET4 *NB_CHAN_GET4]
TH1 *	fFTCorrel [2][NB_CHAN_GET4 *(NB_CHAN_GET4-1)/2]
TH2 *	fFTCorrel2D [2][NB_CHAN_GET4 *(NB_CHAN_GET4-1)/2]
TH1 *	fFTCorrelChipToChip [NB_CHAN_GET4 *NB_CHAN_GET4]
TH1 *	fERRORt
TH1 *	fSLOWCt
TH1 *	fEPOCHt
TH1 *	fEPOCH2t [MAX_GET4_PER_ROC]
TH1 *	fAllSelectedT
TH1 *	fSelectedT [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH1 *	fAllLongT
TH1 *	fDataLongT
TH1 *	fErrorLongT
TH1 *	fSlowCLongT
TH1 *	fSelfTriggLongT
TH1 *	fSyncLongT [MAX_SYNC]
TH1 *	fEpochLongT
TH1 *	fAllEpoch2LongT
TH1 *	fAllSelLongT
TH2 *	fEpochShiftsPerChip
TH2 *	fEpochShiftsDurationPerChip
Int_t	fiEpochShift [MAX_GET4_PER_ROC]
UInt_t	fuNbShiftedEpochs [MAX_GET4_PER_ROC]
TH2 *	fEpochShiftsDuration [MAX_GET4_PER_ROC]
Bool_t	bLookInPreviousEpoch [MAX_GET4_PER_ROC]
Bool_t	bLookInNextEpoch [MAX_GET4_PER_ROC]
Bool_t	fbDataTimeOut [MAX_GET4_PER_ROC][NB_CHAN_GET4]
Bool_t	fbDataFallingOut [MAX_GET4_PER_ROC][NB_CHAN_GET4]
TH2 *	fDataSelfTriggerPerEvent
TH2 *	fDataSelfTrigDistanceNs
TH2 *	fDataSelfTrigDistanceUs
TH2 *	fDataSelfTrigDistanceMs
TH2 *	fDataSelfTrigDistanceS
UInt_t	fuDataSelfTriggerCount [MAX_DATA_TRIGG]
Double_t	fdLastFullTimeSelfTrigger [MAX_DATA_TRIGG]
TGet4v1MessageExtended	fextMessLastMainChannel [MAX_DATA_TRIGG]
Double_t	fdLastFullTimeMainChannelTot [MAX_DATA_TRIGG]
Double_t	fdLastFullTimeSecChannel [MAX_DATA_TRIGG][MAX_SEC_TRIG]
Double_t	fdLastFullTimeSecChannelTot [MAX_DATA_TRIGG][MAX_SEC_TRIG]
TH1 *	fNbEventsPerMbsEvent
TH1 *	fNbNotEmptyEventsPerMbsEvent
TH1 *	fChipRateEvolution [MAX_GET4_PER_ROC]
TH1 *	fChannelRateEvolution [MAX_GET4_PER_ROC][NB_CHAN_GET4]
Double_t	fdRateEvolutionBinSize
UInt_t	fuNbHitsChipEpoch [MAX_GET4_PER_ROC]
TH1 *	fRawTot [MAX_GET4_PER_ROC][NB_CHAN_GET4]
Bool_t	fb24bitsReadoutDetected
UInt_t	fuEpochWithData [MAX_GET4_PER_ROC]
std::vector < TGet4v1MessageExtended >	fEpSuppBuffer [MAX_GET4_PER_ROC]
TH2 *	fGet4V1SlowControlHamming
TH2 *	fGet4V1SlowControlSeuEvo
