#include <ABBdaemon.h>

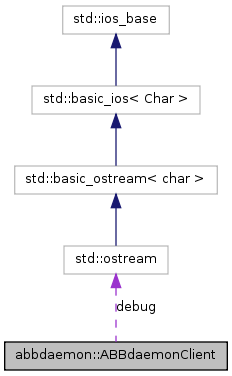

Collaboration diagram for abbdaemon::ABBdaemonClient:

Public Member Functions
	ABBdaemonClient (const char *name="mprace-0", int role=0)
virtual	~ABBdaemonClient ()
void	setReg (uint32_t reg, uint32_t value)
void	enableDebugMessages (bool enable)
uint32_t	submitReset (uint32_t reset=RESET_ALL)
uint32_t	submitPut (uint32_t rocid, uint32_t retid, uint32_t addr, uint32_t value)
uint32_t	submitNPut (uint32_t rocid, uint32_t retid, int n, uint32_t addr, uint32_t values, uint32_t *retvals=0)
uint32_t	submitGet (uint32_t rocid, uint32_t retid, uint32_t addr, uint32_t *value)
uint32_t	submitNGet (uint32_t rocid, uint32_t retid, int n, uint32_t addr, uint32_t value, uint32_t *retvals=0)
uint32_t	submitNOper (uint32_t rocid, uint32_t retid, int n, uint32_t addr, uint32_t value, uint32_t *retvals=0)
uint32_t	submitPutDLM (uint32_t value)
uint32_t	submitGetDLM (uint32_t *value)
uint32_t	readDMAserialized (const unsigned int address, DMABUFFER_HANDLE buffer_handle, const unsigned int count, const unsigned int offset=0, const bool inc=true, const bool lock=true, const float timeout=0.0)
DMABUFFER_HANDLE	registerBuffer (unsigned int len, void *address)
void	syncBuffer (DMABUFFER_HANDLE buffer)
void	unregisterBuffer (DMABUFFER_HANDLE buffer)
uint32_t	getFIFOStatus ()
uint32_t	getCTLStatus ()
void	getDesignID (uint32_t version, uint32_t major, uint32_t author, uint32_t minor)
Protected Attributes
mprace::ABB *	board
std::ostream *	debug

Detailed Description

Definition at line 47 of file ABBdaemon.h.

Constructor & Destructor Documentation

abbdaemon::ABBdaemonClient::ABBdaemonClient	(	const char *	name = `"mprace-0"`,
		int	role = `0`
	)

Definition at line 36 of file ABBdaemon.cxx.

References board, and debug.

abbdaemon::ABBdaemonClient::~ABBdaemonClient ( ) [virtual]

Destructor. Will clean up the connection.

Definition at line 49 of file ABBdaemon.cxx.

References board.

Member Function Documentation

void abbdaemon::ABBdaemonClient::enableDebugMessages ( bool enable )

Enables or disables debug messages.

Parameters:

enable

If true, debug messages will be enabled.

Definition at line 55 of file ABBdaemon.cxx.

References debug.

uint32_t abbdaemon::ABBdaemonClient::getCTLStatus ( )

Gets the FIFO status for the CTL FIFO (communication with the ROC). See the ABB (see ABB user guide section 3.1.16).

Definition at line 283 of file ABBdaemon.cxx.

References board, and CTL_STATUS.

Referenced by main().

void abbdaemon::ABBdaemonClient::getDesignID	(	uint32_t *	version,
		uint32_t *	major,
		uint32_t *	author,
		uint32_t *	minor
	)

Gets the ABB design ID and stores the different parts of it in the given variables.

Parameters:

	version	will hold the Design version
	major	will hold the Design major revision
	author	will hold the author code
	minor	will hold the design minor revision

Definition at line 290 of file ABBdaemon.cxx.

References board, and DID.

Referenced by main().

uint32_t abbdaemon::ABBdaemonClient::getFIFOStatus ( )

Gets the FIFO status (how many quad-words are inside the FIFO at the moment).

Definition at line 275 of file ABBdaemon.cxx.

References board, and EVENT_BUFFER_STATUS.

Referenced by main(), roc::AbbTransport::Read_Complete(), and roc::AbbTransport::Read_Size().

uint32_t abbdaemon::ABBdaemonClient::readDMAserialized	(	const unsigned int	address,
		DMABUFFER_HANDLE	buffer_handle,
		const unsigned int	count,
		const unsigned int	offset = `0`,
		const bool	inc = `true`,
		const bool	lock = `true`,
		const float	timeout = `0.0`
	)

Issue a readDMA, but properly lock before doing it so that multiple processes can use DMA.

Parameters:

	board	The board to perform the DMA on
	address	Address in the board.
	buf	the mprace DMA buffer
	count	Number of values to read from the board in dwords.
	timeout	Timeout for the DMA read in milliseconds

Definition at line 232 of file ABBdaemon.cxx.

References board, and debug.

Referenced by main(), and roc::AbbTransport::Read_Complete().

abbdaemon::DMABUFFER_HANDLE abbdaemon::ABBdaemonClient::registerBuffer	(	unsigned int	len,
		void *	address
	)

Registers the given buffer for use with the ABBdaemon.

Parameters:

	len	length in bytes of the given buffer
	address	Address of the buffer

Returns:: DMABUFFER_HANDLE, which is just a void* pointer

Definition at line 251 of file ABBdaemon.cxx.

References board, and debug.

Referenced by main(), and roc::AbbTransport::ProcessPoolChanged().

void abbdaemon::ABBdaemonClient::setReg	(	uint32_t	reg,
		uint32_t	value
	)

Extra functionality compare to normal daemon - Method to set register on ABB board directly

Definition at line 302 of file ABBdaemon.cxx.

References board.

Referenced by main().

uint32_t abbdaemon::ABBdaemonClient::submitGet	(	uint32_t	rocid,
		uint32_t	retid,
		uint32_t	addr,
		uint32_t *	value
	)

Reads the value of the given address using the ABB daemon.

Parameters:

	rocid	ROC id to send the message to
	retid	Return host id to receive the data
	addr	Address on the device from where to read the value
	value	Pointer where to store the value

Returns:: 0 on success

Definition at line 180 of file ABBdaemon.cxx.

References submitNOper().

Referenced by roc::AbbDevice::CreateTransport(), roc::AbbDevice::ExecuteCommand(), and main().

uint32_t abbdaemon::ABBdaemonClient::submitGetDLM ( uint32_t * value )

Get a DLM from the port.

Parameters:

value

Pointer on where to write the incoming message.

Returns:: 0 on success

Definition at line 205 of file ABBdaemon.cxx.

References board, debug, and DLM_R2H.

uint32_t abbdaemon::ABBdaemonClient::submitNGet	(	uint32_t	rocid,
		uint32_t	retid,
		int	n,
		uint32_t *	addr,
		uint32_t *	value,
		uint32_t *	retvals = `0`
	)

Read an array of n uint32_t addr and value pairs.

See also:: submitGet

Definition at line 185 of file ABBdaemon.cxx.

References submitNOper().

uint32_t abbdaemon::ABBdaemonClient::submitNOper	(	uint32_t	rocid,
		uint32_t	retid,
		int	n,
		uint32_t *	addr,
		uint32_t *	value,
		uint32_t *	retvals = `0`
	)

Reads or writes an array of n uint32_t addr and value pairs. The type of the operation is specified in the MSB of the address value (if the MSB is set the operation is write, if it is not set, the operation is read).

Parameters:

retvals

Array to store the return values of each command.

Definition at line 89 of file ABBdaemon.cxx.

References board, and debug.

Referenced by roc::AbbDevice::ExecuteCommand(), main(), submitGet(), submitNGet(), submitNPut(), and submitPut().

uint32_t abbdaemon::ABBdaemonClient::submitNPut	(	uint32_t	rocid,
		uint32_t	retid,
		int	n,
		uint32_t *	addr,
		uint32_t *	values,
		uint32_t *	retvals = `0`
	)

Submit an array of n uint32_t addr and value pairs. Internally, not only the main message queue is used, but another one is created with message size n * sizeof(uint32_t) and two messages max. The first message will be the addr array, the second one the value array. This queue will be removed by the server after processing the request.

Parameters:

retvals

An arry of n * sizeof(uint32_t) size which will store the return values for each put request. You can pass NULL to signalize that you are not interested in the return values.

See also:: submitPut

Returns:: 0 on success

Exceptions:

when

NULL-pointers are passed

Definition at line 168 of file ABBdaemon.cxx.

References submitNOper().

uint32_t abbdaemon::ABBdaemonClient::submitPut	(	uint32_t	rocid,
		uint32_t	retid,
		uint32_t	addr,
		uint32_t	value
	)

Writes a value at the given address using the ABB daemon.

Parameters:

	rocid	ROC id to send the message to
	retid	Return host id to receive the ackowledge
	addr	Address on the device where to write the given value
	value	The value to write at the specified address

Returns:: 0 on success

Definition at line 162 of file ABBdaemon.cxx.

References submitNOper().

Referenced by roc::AbbDevice::ExecuteCommand(), and main().

uint32_t abbdaemon::ABBdaemonClient::submitPutDLM ( uint32_t value )

Writes a DLM to the port.

Parameters:

value

The message to send. Only the 4 lsb are used.

Returns:: 0 on success

Definition at line 191 of file ABBdaemon.cxx.

References board, debug, DLM_H2R, and DLM_MASK.

Referenced by roc::AbbDevice::ExecuteCommand(), and main().

uint32_t abbdaemon::ABBdaemonClient::submitReset ( uint32_t reset = RESET_ALL )

Reset the CTL FIFOs in the ABB board.

Returns:: 0 on success

Definition at line 60 of file ABBdaemon.cxx.

References board, CTL_CONTROL, CTL_FIFO_RESET, CTL_STATUS, debug, EVENT_BUFFER_RESET, EVENT_BUFFER_STATUS, GSR, abbdaemon::RESET_ABB, abbdaemon::RESET_ALL, abbdaemon::RESET_CTL_FIFO, and abbdaemon::RESET_FIFO_TIMEOUT.

Referenced by roc::AbbContextRef::CreateDaemon(), roc::AbbDevice::ExecuteCommand(), and main().

void abbdaemon::ABBdaemonClient::syncBuffer ( DMABUFFER_HANDLE buffer )

Synchronize the content of the given buffer, which has been registered with registerBuffer before. This should be done after a non-locking DMA is completed to ensure proper memory read.

Definition at line 260 of file ABBdaemon.cxx.

void abbdaemon::ABBdaemonClient::unregisterBuffer ( DMABUFFER_HANDLE buffer )

Unregisters (frees) the given buffer, which has been registered with registerBuffer before.

Definition at line 267 of file ABBdaemon.cxx.

References debug.

Referenced by main(), and roc::AbbTransport::ProcessPoolChanged().
