#include <StreamProc.h>

Inheritance diagram for base::StreamProc:

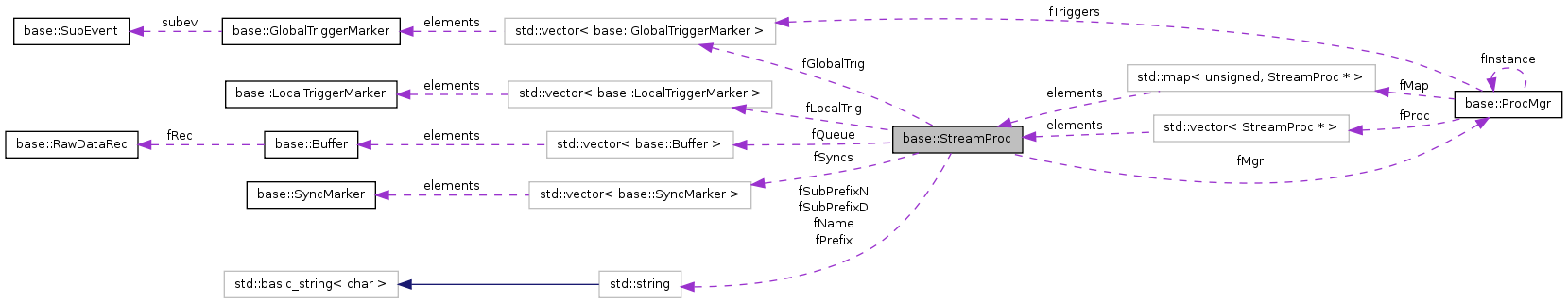

Collaboration diagram for base::StreamProc:

Public Member Functions
virtual	~StreamProc ()
ProcMgr *	mgr () const
const std::string	GetProcName () const
void	SetTimeSorting (bool on)
bool	IsTimeSorting () const
void	SetTriggerWindow (double left, double right)
bool	IsSynchronisationRequired () const
virtual bool	AddNextBuffer (const Buffer &buf)
virtual bool	ScanNewBuffers ()
virtual bool	ScanNewBuffersTm ()
virtual void	SkipAllData ()
virtual bool	SkipBuffers (unsigned cnt)
virtual bool	FirstBufferScan (const base::Buffer &buf)
virtual bool	SecondBufferScan (const base::Buffer &buf)
unsigned	numSyncs () const
SyncMarker &	getSync (unsigned n)
SyncMarker &	lastSync ()
bool	eraseSyncAt (unsigned indx)
virtual bool	CollectTriggers (GlobalTriggerMarksQueue &queue)
virtual bool	DistributeTriggers (const GlobalTriggerMarksQueue &queue)
virtual bool	ScanDataForNewTriggers ()
unsigned	NumReadySubevents () const
virtual bool	AppendSubevent (base::Event *evt)
Protected Types
typedef std::vector< base::Buffer >	BuffersQueue
typedef std::vector < base::SyncMarker >	SyncMarksQueue
typedef std::vector < base::LocalTriggerMarker >	LocalTriggerMarksQueue
Protected Member Functions
	StreamProc (const char *name="", int indx=-1)
void	SetSubPrefix (const char subname="", int indx=-1, const char subname2="", int indx2=-1)
H1handle	MakeH1 (const char name, const char title, int nbins, double left, double right, const char *xtitle=0)
void	FillH1 (H1handle h1, double x, double weight=1.)
H2handle	MakeH2 (const char name, const char title, int nbins1, double left1, double right1, int nbins2, double left2, double right2, const char *options=0)
void	FillH2 (H1handle h2, double x, double y, double weight=1.)
C1handle	MakeC1 (const char *name, double left, double right, H1handle h1=0)
void	ChangeC1 (C1handle c1, double left, double right)
int	TestC1 (C1handle c1, double value, double *dist=0)
double	GetC1Limit (C1handle c1, bool isleft=true)
void	AddSyncMarker (SyncMarker &marker)
void	AddTriggerMarker (LocalTriggerMarker &marker)
double	local_time_dist (GlobalTime_t tm1, GlobalTime_t tm2)
GlobalTime_t	LocalToGlobalTime (GlobalTime_t localtm, unsigned *lastindx=0)
virtual bool	doTriggerSelection () const
virtual GlobalTime_t	ProvidePotentialFlushTime (GlobalTime_t last_marker)
bool	VerifyFlushTime (const base::GlobalTime_t &flush_time)
virtual double	MaximumDisorderTm () const
unsigned	TestHitTime (const base::GlobalTime_t &hittime, bool normal_hit)
virtual unsigned	GetTriggerMultipl (unsigned indx)
virtual void	SortDataInSubEvent (base::SubEvent *)
Protected Attributes
std::string	fName
ProcMgr *	fMgr
	processor name, used for event naming
BuffersQueue	fQueue
unsigned	fQueueScanIndex
	index of next buffer which should be scanned
unsigned	fQueueScanIndexTm
	index of buffer to scan and set correct times of the buffer head
bool	fIsSynchronisationRequired
	true if sync is required
SyncMarksQueue	fSyncs
	list of sync markers
unsigned	fSyncScanIndex
	sync scan index, use to adjust syncs over many processors
bool	fSyncFlag
	boolean, used in sync adjustment procedure
LocalTriggerMarksQueue	fLocalTrig
	list of local triggers
GlobalTriggerMarksQueue	fGlobalTrig
	list of global triggers in work
unsigned	fGlobalTrigScanIndex
	index with first trigger which is not yet ready
unsigned	fGlobalTrigRightIndex
	temporary value, used during second buffers scan
bool	fTimeSorting
	defines if time sorting should be used for the messages
std::string	fPrefix
	prefix, used for histogram names
std::string	fSubPrefixD
	sub-prefix for histogram directory
std::string	fSubPrefixN
	sub-prefix for histogram names
base::H1handle	fTriggerTm
base::H1handle	fMultipl
	histogram with time relative to the trigger
base::C1handle	triggerWindow
	histogram of event multiplicity
Friends
class	ProcMgr

Detailed Description

Definition at line 78 of file StreamProc.h.

Member Typedef Documentation

typedef std::vector<base::Buffer> base::StreamProc::BuffersQueue [protected]

Definition at line 83 of file StreamProc.h.

typedef std::vector<base::LocalTriggerMarker> base::StreamProc::LocalTriggerMarksQueue [protected]

Definition at line 87 of file StreamProc.h.

typedef std::vector<base::SyncMarker> base::StreamProc::SyncMarksQueue [protected]

Definition at line 85 of file StreamProc.h.

Constructor & Destructor Documentation

base::StreamProc::StreamProc	(	const char *	name = `""`,
		int	indx = `-1`
	)			`[protected]`

Make constructor protected - no way to create base class instance

Definition at line 41 of file StreamProc.cxx.

References base::ProcMgr::AddProc(), fMgr, fMultipl, fName, fPrefix, fTriggerTm, MakeC1(), MakeH1(), and triggerWindow.

base::StreamProc::~StreamProc ( ) [virtual]

Definition at line 73 of file StreamProc.cxx.

References fGlobalTrig, fLocalTrig, fQueue, and fSyncs.

Member Function Documentation

bool base::StreamProc::AddNextBuffer ( const Buffer & buf ) [virtual]

Provide next port of data to the processor

Definition at line 273 of file StreamProc.cxx.

References fQueue.

void base::StreamProc::AddSyncMarker ( base::SyncMarker & marker ) [protected]

Definition at line 352 of file StreamProc.cxx.

References base::SyncMarker::bufid, fQueueScanIndex, fSyncs, base::SyncMarker::globaltm, and IsSynchronisationRequired().

Referenced by nx::Processor::FirstBufferScan(), and get4::Processor::FirstBufferScan().

void base::StreamProc::AddTriggerMarker ( LocalTriggerMarker & marker ) [protected]

Definition at line 365 of file StreamProc.cxx.

References base::LocalTriggerMarker::bufid, fLocalTrig, and fQueueScanIndex.

Referenced by nx::Processor::FirstBufferScan(), and get4::Processor::FirstBufferScan().

bool base::StreamProc::AppendSubevent ( base::Event * evt ) [virtual]

Append data for first trigger to the main event

Definition at line 474 of file StreamProc.cxx.

References base::Event::AddSubEvent(), fGlobalTrig, fGlobalTrigScanIndex, FillH1(), fMultipl, GetProcName(), GetTriggerMultipl(), IsTimeSorting(), and SortDataInSubEvent().

void base::StreamProc::ChangeC1	(	C1handle	c1,
		double	left,
		double	right
	)			`[protected]`

Definition at line 176 of file StreamProc.cxx.

References base::ProcMgr::ChangeC1(), and mgr().

Referenced by SetTriggerWindow().

bool base::StreamProc::CollectTriggers ( GlobalTriggerMarksQueue & queue ) [virtual]

Method to deliver detected triggers from processor to central manager

Definition at line 420 of file StreamProc.cxx.

References fLocalTrig, fQueueScanIndexTm, base::GlobalTriggerMarker::globaltm, and LocalToGlobalTime().

bool base::StreamProc::DistributeTriggers ( const GlobalTriggerMarksQueue & queue ) [virtual]

This is method to get back identified triggers from central manager

Definition at line 452 of file StreamProc.cxx.

References fGlobalTrig, GetC1Limit(), and triggerWindow.

virtual bool base::StreamProc::doTriggerSelection ( ) const [inline, protected, virtual]

Returns true when processor used to select trigger signal

Reimplemented in base::SysCoreProc, and get4::Processor.

Definition at line 149 of file StreamProc.h.

bool base::StreamProc::eraseSyncAt ( unsigned indx )

Removes sync at specified position

Definition at line 193 of file StreamProc.cxx.

References fSyncs, and fSyncScanIndex.

Referenced by base::ProcMgr::AnalyzeSyncMarkers().

void base::StreamProc::FillH1	(	H1handle	h1,
		double	x,
		double	weight = `1.`
	)			`[protected]`

Definition at line 137 of file StreamProc.cxx.

References base::ProcMgr::FillH1(), and mgr().

Referenced by AppendSubevent(), base::SysCoreProc::FillMsgPerBrdHist(), nx::Processor::FirstBufferScan(), get4::Processor::FirstBufferScan(), and TestHitTime().

void base::StreamProc::FillH2	(	H1handle	h2,
		double	x,
		double	y,
		double	weight = `1.`
	)			`[protected]`

Definition at line 158 of file StreamProc.cxx.

References base::ProcMgr::FillH2(), and mgr().

Referenced by nx::Processor::FirstBufferScan().

virtual bool base::StreamProc::FirstBufferScan ( const base::Buffer & buf ) [inline, virtual]

Central method to scan new data in the queue This should include:

data indexing;
raw histogram filling;
search for special time markers;
multiplicity histogramming (if necessary)

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 215 of file StreamProc.h.

Referenced by ScanNewBuffers().

double base::StreamProc::GetC1Limit	(	C1handle	c1,
		bool	isleft = `true`
	)			`[protected]`

Definition at line 188 of file StreamProc.cxx.

References base::ProcMgr::GetC1Limit(), and mgr().

Referenced by DistributeTriggers(), and ScanDataForNewTriggers().

const std::string base::StreamProc::GetProcName ( ) const [inline]

Definition at line 174 of file StreamProc.h.

References fName.

Referenced by AppendSubevent(), and nx::Processor::~Processor().

SyncMarker& base::StreamProc::getSync ( unsigned n ) [inline]

Definition at line 223 of file StreamProc.h.

References fSyncs.

Referenced by base::ProcMgr::AnalyzeSyncMarkers(), and LocalToGlobalTime().

virtual unsigned base::StreamProc::GetTriggerMultipl ( unsigned indx ) [inline, protected, virtual]

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 163 of file StreamProc.h.

Referenced by AppendSubevent().

bool base::StreamProc::IsSynchronisationRequired ( ) const [inline]

Method indicate if any kind of time-synchronization technique should be applied for the processor. If true, sync messages must be produced by processor and will be used. If false, local time stamps could be immediately used (with any necessary conversion)

Definition at line 191 of file StreamProc.h.

References fIsSynchronisationRequired.

Referenced by AddSyncMarker(), base::ProcMgr::AnalyzeSyncMarkers(), and LocalToGlobalTime().

bool base::StreamProc::IsTimeSorting ( ) const [inline]

Definition at line 178 of file StreamProc.h.

References fTimeSorting.

Referenced by AppendSubevent().

SyncMarker& base::StreamProc::lastSync ( ) [inline]

Definition at line 224 of file StreamProc.h.

References fSyncs.

double base::StreamProc::local_time_dist	(	GlobalTime_t	tm1,
		GlobalTime_t	tm2
	)			`[inline, protected]`

Definition at line 142 of file StreamProc.h.

Referenced by LocalToGlobalTime().

base::GlobalTime_t base::StreamProc::LocalToGlobalTime	(	base::GlobalTime_t	localtm,
		unsigned *	lastindx = `0`
	)			`[protected]`

Method converts local time (in ns representation) to global time TODO: One could introduce more precise method, which works with stamps

Definition at line 203 of file StreamProc.cxx.

References getSync(), base::SyncMarker::globaltm, IsSynchronisationRequired(), local_time_dist(), base::SyncMarker::localtm, and numSyncs().

Referenced by CollectTriggers(), ScanNewBuffersTm(), nx::Processor::SecondBufferScan(), and get4::Processor::SecondBufferScan().

base::C1handle base::StreamProc::MakeC1	(	const char *	name,
		double	left,
		double	right,
		H1handle	h1 = `0`
	)			`[protected]`

Definition at line 164 of file StreamProc.cxx.

References fPrefix, fSubPrefixD, fSubPrefixN, base::ProcMgr::MakeC1(), and mgr().

Referenced by StreamProc().

base::H1handle base::StreamProc::MakeH1	(	const char *	name,
		const char *	title,
		int	nbins,
		double	left,
		double	right,
		const char *	xtitle = `0`
	)			`[protected]`

Definition at line 120 of file StreamProc.cxx.

References fName, fPrefix, fSubPrefixD, fSubPrefixN, base::ProcMgr::MakeH1(), and mgr().

Referenced by base::SysCoreProc::CreateBasicHistograms(), nx::Processor::Processor(), get4::Processor::Processor(), get4::Processor::setRefChannel(), and StreamProc().

base::H2handle base::StreamProc::MakeH2	(	const char *	name,
		const char *	title,
		int	nbins1,
		double	left1,
		double	right1,
		int	nbins2,
		double	left2,
		double	right2,
		const char *	options = `0`
	)			`[protected]`

Definition at line 142 of file StreamProc.cxx.

References fName, fPrefix, fSubPrefixD, fSubPrefixN, base::ProcMgr::MakeH2(), and mgr().

Referenced by nx::Processor::Processor().

virtual double base::StreamProc::MaximumDisorderTm ( ) const [inline, protected, virtual]

Time constant, defines how far disorder of messages can go

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 158 of file StreamProc.h.

Referenced by ScanDataForNewTriggers(), and TestHitTime().

ProcMgr* base::StreamProc::mgr ( ) const [inline]

Definition at line 172 of file StreamProc.h.

References fMgr.

Referenced by ChangeC1(), FillH1(), FillH2(), GetC1Limit(), MakeC1(), MakeH1(), MakeH2(), nx::Processor::Processor(), get4::Processor::Processor(), base::SysCoreProc::SysCoreProc(), and TestC1().

unsigned base::StreamProc::NumReadySubevents ( ) const [inline]

Returns number of already build events

Definition at line 238 of file StreamProc.h.

References fGlobalTrigScanIndex.

unsigned base::StreamProc::numSyncs ( ) const [inline]

Returns total number of sync markers

Definition at line 222 of file StreamProc.h.

References fSyncs.

Referenced by base::ProcMgr::AnalyzeSyncMarkers(), and LocalToGlobalTime().

base::GlobalTime_t base::StreamProc::ProvidePotentialFlushTime ( GlobalTime_t last_marker ) [protected, virtual]

Method should return time, which could be flushed from the processor

Definition at line 325 of file StreamProc.cxx.

References fQueue, and fQueueScanIndexTm.

bool base::StreamProc::ScanDataForNewTriggers ( ) [virtual]

Here each processor should scan data again for new triggers

Definition at line 571 of file StreamProc.cxx.

References fGlobalTrig, fGlobalTrigRightIndex, fGlobalTrigScanIndex, fQueue, fQueueScanIndexTm, GetC1Limit(), MaximumDisorderTm(), SecondBufferScan(), SkipBuffers(), and triggerWindow.

bool base::StreamProc::ScanNewBuffers ( ) [virtual]

Scanning all new buffers in the queue

Definition at line 280 of file StreamProc.cxx.

References FirstBufferScan(), fQueue, and fQueueScanIndex.

bool base::StreamProc::ScanNewBuffersTm ( ) [virtual]

With new calibration set (where possible) time of buffers

Definition at line 306 of file StreamProc.cxx.

References fQueue, fQueueScanIndexTm, fSyncs, fSyncScanIndex, and LocalToGlobalTime().

virtual bool base::StreamProc::SecondBufferScan ( const base::Buffer & buf ) [inline, virtual]

Second generic scan of buffer Here selection of data for region-of-interest should be performed

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 219 of file StreamProc.h.

Referenced by ScanDataForNewTriggers().

void base::StreamProc::SetSubPrefix	(	const char *	subname = `""`,
		int	indx = `-1`,
		const char *	subname2 = `""`,
		int	indx2 = `-1`
	)			`[protected]`

Set subprefix for histograms and conditions

Definition at line 84 of file StreamProc.cxx.

References fSubPrefixD, and fSubPrefixN.

Referenced by nx::Processor::Processor(), get4::Processor::Processor(), and get4::Processor::setRefChannel().

void base::StreamProc::SetTimeSorting ( bool on ) [inline]

Enable/disable time sorting of data in output event

Definition at line 177 of file StreamProc.h.

References fTimeSorting.

void base::StreamProc::SetTriggerWindow	(	double	left,
		double	right
	)			`[inline]`

Definition at line 181 of file StreamProc.h.

References ChangeC1(), and triggerWindow.

void base::StreamProc::SkipAllData ( ) [virtual]

Method to remove all buffers, all triggers and so on

Definition at line 292 of file StreamProc.cxx.

References fGlobalTrig, fLocalTrig, fQueue, fQueueScanIndexTm, fSyncs, fSyncScanIndex, and SkipBuffers().

bool base::StreamProc::SkipBuffers ( unsigned cnt ) [virtual]

Force processor to skip buffers from input

Definition at line 372 of file StreamProc.cxx.

References fLocalTrig, fQueue, fQueueScanIndex, fQueueScanIndexTm, fSyncs, and fSyncScanIndex.

Referenced by ScanDataForNewTriggers(), and SkipAllData().

virtual void base::StreamProc::SortDataInSubEvent ( base::SubEvent * ) [inline, protected, virtual]

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 165 of file StreamProc.h.

Referenced by AppendSubevent().

int base::StreamProc::TestC1	(	C1handle	c1,
		double	value,
		double *	dist = `0`
	)			`[protected]`

Definition at line 182 of file StreamProc.cxx.

References mgr(), and base::ProcMgr::TestC1().

unsigned base::StreamProc::TestHitTime	(	const base::GlobalTime_t &	hittime,
		bool	normal_hit
	)			`[protected]`

Method decides to which trigger window belong hit

Definition at line 513 of file StreamProc.cxx.

References fGlobalTrig, fGlobalTrigRightIndex, fGlobalTrigScanIndex, FillH1(), fTriggerTm, and MaximumDisorderTm().

Referenced by nx::Processor::SecondBufferScan(), and get4::Processor::SecondBufferScan().

bool base::StreamProc::VerifyFlushTime ( const base::GlobalTime_t & flush_time ) [protected]

Method must ensure that processor scanned such time and can really skip this data

Definition at line 338 of file StreamProc.cxx.

References fQueue, and fQueueScanIndexTm.

Friends And Related Function Documentation

friend class ProcMgr [friend]

Definition at line 79 of file StreamProc.h.

Field Documentation

GlobalTriggerMarksQueue base::StreamProc::fGlobalTrig [protected]

list of global triggers in work

Definition at line 105 of file StreamProc.h.

Referenced by AppendSubevent(), DistributeTriggers(), nx::Processor::GetTriggerMultipl(), get4::Processor::GetTriggerMultipl(), ScanDataForNewTriggers(), nx::Processor::SecondBufferScan(), get4::Processor::SecondBufferScan(), SkipAllData(), TestHitTime(), and ~StreamProc().

unsigned base::StreamProc::fGlobalTrigRightIndex [protected]

temporary value, used during second buffers scan

Definition at line 108 of file StreamProc.h.

Referenced by ScanDataForNewTriggers(), and TestHitTime().

unsigned base::StreamProc::fGlobalTrigScanIndex [protected]

index with first trigger which is not yet ready

Definition at line 107 of file StreamProc.h.

Referenced by AppendSubevent(), NumReadySubevents(), ScanDataForNewTriggers(), and TestHitTime().

bool base::StreamProc::fIsSynchronisationRequired [protected]

true if sync is required

Definition at line 98 of file StreamProc.h.

Referenced by IsSynchronisationRequired(), and base::SysCoreProc::SetSyncSource().

LocalTriggerMarksQueue base::StreamProc::fLocalTrig [protected]

list of local triggers

Definition at line 103 of file StreamProc.h.

Referenced by AddTriggerMarker(), CollectTriggers(), SkipAllData(), SkipBuffers(), and ~StreamProc().

ProcMgr* base::StreamProc::fMgr [protected]

processor name, used for event naming

Definition at line 91 of file StreamProc.h.

Referenced by mgr(), and StreamProc().

base::H1handle base::StreamProc::fMultipl [protected]

histogram with time relative to the trigger

Definition at line 117 of file StreamProc.h.

Referenced by AppendSubevent(), and StreamProc().

std::string base::StreamProc::fName [protected]

Definition at line 89 of file StreamProc.h.

Referenced by GetProcName(), MakeH1(), MakeH2(), and StreamProc().

std::string base::StreamProc::fPrefix [protected]

prefix, used for histogram names

Definition at line 112 of file StreamProc.h.

Referenced by MakeC1(), MakeH1(), MakeH2(), and StreamProc().

BuffersQueue base::StreamProc::fQueue [protected]

Definition at line 93 of file StreamProc.h.

Referenced by AddNextBuffer(), nx::Processor::IsValidBufIndex(), get4::Processor::IsValidBufIndex(), ProvidePotentialFlushTime(), ScanDataForNewTriggers(), ScanNewBuffers(), ScanNewBuffersTm(), SkipAllData(), SkipBuffers(), VerifyFlushTime(), and ~StreamProc().

unsigned base::StreamProc::fQueueScanIndex [protected]

index of next buffer which should be scanned

Definition at line 95 of file StreamProc.h.

Referenced by AddSyncMarker(), AddTriggerMarker(), ScanNewBuffers(), and SkipBuffers().

unsigned base::StreamProc::fQueueScanIndexTm [protected]

index of buffer to scan and set correct times of the buffer head

Definition at line 96 of file StreamProc.h.

Referenced by CollectTriggers(), ProvidePotentialFlushTime(), ScanDataForNewTriggers(), ScanNewBuffersTm(), SkipAllData(), SkipBuffers(), and VerifyFlushTime().

std::string base::StreamProc::fSubPrefixD [protected]

sub-prefix for histogram directory

Definition at line 113 of file StreamProc.h.

Referenced by MakeC1(), MakeH1(), MakeH2(), and SetSubPrefix().

std::string base::StreamProc::fSubPrefixN [protected]

sub-prefix for histogram names

Definition at line 114 of file StreamProc.h.

Referenced by MakeC1(), MakeH1(), MakeH2(), and SetSubPrefix().

bool base::StreamProc::fSyncFlag [protected]

boolean, used in sync adjustment procedure

Definition at line 101 of file StreamProc.h.

Referenced by base::ProcMgr::AnalyzeSyncMarkers().

SyncMarksQueue base::StreamProc::fSyncs [protected]

list of sync markers

Definition at line 99 of file StreamProc.h.

Referenced by AddSyncMarker(), eraseSyncAt(), getSync(), lastSync(), numSyncs(), ScanNewBuffersTm(), SkipAllData(), SkipBuffers(), and ~StreamProc().

unsigned base::StreamProc::fSyncScanIndex [protected]

sync scan index, use to adjust syncs over many processors

Definition at line 100 of file StreamProc.h.

Referenced by base::ProcMgr::AnalyzeSyncMarkers(), eraseSyncAt(), ScanNewBuffersTm(), SkipAllData(), and SkipBuffers().

bool base::StreamProc::fTimeSorting [protected]

defines if time sorting should be used for the messages

Definition at line 110 of file StreamProc.h.

Referenced by IsTimeSorting(), and SetTimeSorting().

base::H1handle base::StreamProc::fTriggerTm [protected]

Definition at line 116 of file StreamProc.h.

Referenced by StreamProc(), and TestHitTime().

base::C1handle base::StreamProc::triggerWindow [protected]

histogram of event multiplicity

window used for data selection

Definition at line 119 of file StreamProc.h.

Referenced by DistributeTriggers(), ScanDataForNewTriggers(), SetTriggerWindow(), and StreamProc().

The documentation for this class was generated from the following files:

newmonitor/base/StreamProc.h (r3879/r3878)
newmonitor/base/StreamProc.cxx (r3879/r3878)

base::StreamProc Class Reference

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Field Documentation
