#include <SysCoreProc.h>

Inheritance diagram for base::SysCoreProc:

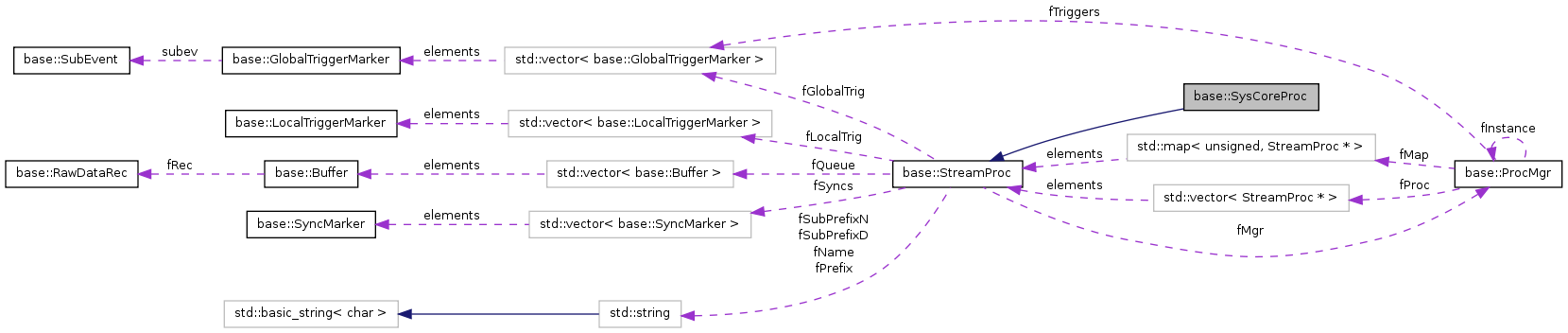

Collaboration diagram for base::SysCoreProc:

Public Member Functions
	SysCoreProc (const char *name, unsigned brdid)
virtual	~SysCoreProc ()
unsigned	GetBoardId () const
void	SetSyncSource (unsigned id)
void	SetNoSyncSource ()
void	SetTriggerSignal (unsigned id)
void	SetNoTriggerSignal ()
void	SetPrint (int nummsg, double left=-1., double right=-1.)
ProcMgr *	mgr () const
const std::string	GetProcName () const
void	SetTimeSorting (bool on)
bool	IsTimeSorting () const
void	SetTriggerWindow (double left, double right)
bool	IsSynchronisationRequired () const
virtual bool	AddNextBuffer (const Buffer &buf)
virtual bool	ScanNewBuffers ()
virtual bool	ScanNewBuffersTm ()
virtual void	SkipAllData ()
virtual bool	SkipBuffers (unsigned cnt)
virtual bool	FirstBufferScan (const base::Buffer &buf)
virtual bool	SecondBufferScan (const base::Buffer &buf)
unsigned	numSyncs () const
SyncMarker &	getSync (unsigned n)
SyncMarker &	lastSync ()
bool	eraseSyncAt (unsigned indx)
virtual bool	CollectTriggers (GlobalTriggerMarksQueue &queue)
virtual bool	DistributeTriggers (const GlobalTriggerMarksQueue &queue)
virtual bool	ScanDataForNewTriggers ()
unsigned	NumReadySubevents () const
virtual bool	AppendSubevent (base::Event *evt)
Static Public Member Functions
static void	SetMaxBrdId (unsigned max)
Protected Types
typedef std::vector< base::Buffer >	BuffersQueue
typedef std::vector < base::SyncMarker >	SyncMarksQueue
typedef std::vector < base::LocalTriggerMarker >	LocalTriggerMarksQueue
Protected Member Functions
virtual bool	doTriggerSelection () const
	maximum allowed board id, used for histogramming
void	CreateBasicHistograms ()
void	FillMsgPerBrdHist (unsigned cnt)
void	SetSubPrefix (const char subname="", int indx=-1, const char subname2="", int indx2=-1)
H1handle	MakeH1 (const char name, const char title, int nbins, double left, double right, const char *xtitle=0)
void	FillH1 (H1handle h1, double x, double weight=1.)
H2handle	MakeH2 (const char name, const char title, int nbins1, double left1, double right1, int nbins2, double left2, double right2, const char *options=0)
void	FillH2 (H1handle h2, double x, double y, double weight=1.)
C1handle	MakeC1 (const char *name, double left, double right, H1handle h1=0)
void	ChangeC1 (C1handle c1, double left, double right)
int	TestC1 (C1handle c1, double value, double *dist=0)
double	GetC1Limit (C1handle c1, bool isleft=true)
void	AddSyncMarker (SyncMarker &marker)
void	AddTriggerMarker (LocalTriggerMarker &marker)
double	local_time_dist (GlobalTime_t tm1, GlobalTime_t tm2)
GlobalTime_t	LocalToGlobalTime (GlobalTime_t localtm, unsigned *lastindx=0)
virtual GlobalTime_t	ProvidePotentialFlushTime (GlobalTime_t last_marker)
bool	VerifyFlushTime (const base::GlobalTime_t &flush_time)
virtual double	MaximumDisorderTm () const
unsigned	TestHitTime (const base::GlobalTime_t &hittime, bool normal_hit)
virtual unsigned	GetTriggerMultipl (unsigned indx)
virtual void	SortDataInSubEvent (base::SubEvent *)
Protected Attributes
unsigned	fBrdId
unsigned	fSyncSource
	board id, which will be used for the filling
unsigned	fTriggerSignal
int	fNumPrintMessages
double	fPrintLeft
	number of messages to be printed
double	fPrintRight
	left border to start printing
bool	fAnyPrinted
	right border to stop printing
base::H1handle	fMsgPerBrd
	true when any message was printed
base::H1handle	fALLt
	common histogram for all boards with similar prefix
base::H1handle	fAUXt [4]
	histogram for all messages times
base::H1handle	fSYNCt [2]
	histogram for AUX times
std::string	fName
ProcMgr *	fMgr
	processor name, used for event naming
BuffersQueue	fQueue
unsigned	fQueueScanIndex
	index of next buffer which should be scanned
unsigned	fQueueScanIndexTm
	index of buffer to scan and set correct times of the buffer head
bool	fIsSynchronisationRequired
	true if sync is required
SyncMarksQueue	fSyncs
	list of sync markers
unsigned	fSyncScanIndex
	sync scan index, use to adjust syncs over many processors
bool	fSyncFlag
	boolean, used in sync adjustment procedure
LocalTriggerMarksQueue	fLocalTrig
	list of local triggers
GlobalTriggerMarksQueue	fGlobalTrig
	list of global triggers in work
unsigned	fGlobalTrigScanIndex
	index with first trigger which is not yet ready
unsigned	fGlobalTrigRightIndex
	temporary value, used during second buffers scan
bool	fTimeSorting
	defines if time sorting should be used for the messages
std::string	fPrefix
	prefix, used for histogram names
std::string	fSubPrefixD
	sub-prefix for histogram directory
std::string	fSubPrefixN
	sub-prefix for histogram names
base::H1handle	fTriggerTm
base::H1handle	fMultipl
	histogram with time relative to the trigger
base::C1handle	triggerWindow
	histogram of event multiplicity
Static Protected Attributes
static unsigned	fMaxBrdId = 16
	histogram for SYNC times

Detailed Description

SysCoreProc is base class for many processors of data, provided by SysCore2/3 boards. Main idea is to collect common settings/methods for SysCore variants like: nXYTER, GET4, Spadic1 and probably STS-XYTER Main common part is 250 MHz clock and SYNC/AUX messages which could be used for time synchronization.

Definition at line 15 of file SysCoreProc.h.

Member Typedef Documentation

typedef std::vector<base::Buffer> base::StreamProc::BuffersQueue [protected, inherited]

Definition at line 83 of file StreamProc.h.

typedef std::vector<base::LocalTriggerMarker> base::StreamProc::LocalTriggerMarksQueue [protected, inherited]

Definition at line 87 of file StreamProc.h.

typedef std::vector<base::SyncMarker> base::StreamProc::SyncMarksQueue [protected, inherited]

Definition at line 85 of file StreamProc.h.

Constructor & Destructor Documentation

base::SysCoreProc::SysCoreProc	(	const char *	name,
		unsigned	brdid
	)

Definition at line 7 of file SysCoreProc.cxx.

References fMaxBrdId, fMsgPerBrd, base::ProcMgr::MakeH1(), and base::StreamProc::mgr().

base::SysCoreProc::~SysCoreProc ( ) [virtual]

Definition at line 24 of file SysCoreProc.cxx.

Member Function Documentation

bool base::StreamProc::AddNextBuffer ( const Buffer & buf ) [virtual, inherited]

Provide next port of data to the processor

Definition at line 273 of file StreamProc.cxx.

References base::StreamProc::fQueue.

void base::StreamProc::AddSyncMarker ( base::SyncMarker & marker ) [protected, inherited]

Definition at line 352 of file StreamProc.cxx.

References base::SyncMarker::bufid, base::StreamProc::fQueueScanIndex, base::StreamProc::fSyncs, base::SyncMarker::globaltm, and base::StreamProc::IsSynchronisationRequired().

Referenced by nx::Processor::FirstBufferScan(), and get4::Processor::FirstBufferScan().

void base::StreamProc::AddTriggerMarker ( LocalTriggerMarker & marker ) [protected, inherited]

Definition at line 365 of file StreamProc.cxx.

References base::LocalTriggerMarker::bufid, base::StreamProc::fLocalTrig, and base::StreamProc::fQueueScanIndex.

Referenced by nx::Processor::FirstBufferScan(), and get4::Processor::FirstBufferScan().

bool base::StreamProc::AppendSubevent ( base::Event * evt ) [virtual, inherited]

Append data for first trigger to the main event

Definition at line 474 of file StreamProc.cxx.

References base::Event::AddSubEvent(), base::StreamProc::fGlobalTrig, base::StreamProc::fGlobalTrigScanIndex, base::StreamProc::FillH1(), base::StreamProc::fMultipl, base::StreamProc::GetProcName(), base::StreamProc::GetTriggerMultipl(), base::StreamProc::IsTimeSorting(), and base::StreamProc::SortDataInSubEvent().

void base::StreamProc::ChangeC1	(	C1handle	c1,
		double	left,
		double	right
	)			`[protected, inherited]`

Definition at line 176 of file StreamProc.cxx.

References base::ProcMgr::ChangeC1(), and base::StreamProc::mgr().

Referenced by base::StreamProc::SetTriggerWindow().

bool base::StreamProc::CollectTriggers ( GlobalTriggerMarksQueue & queue ) [virtual, inherited]

Method to deliver detected triggers from processor to central manager

Definition at line 420 of file StreamProc.cxx.

References base::StreamProc::fLocalTrig, base::StreamProc::fQueueScanIndexTm, base::GlobalTriggerMarker::globaltm, and base::StreamProc::LocalToGlobalTime().

void base::SysCoreProc::CreateBasicHistograms ( ) [protected]

Definition at line 29 of file SysCoreProc.cxx.

References fALLt, fAUXt, fSYNCt, and base::StreamProc::MakeH1().

Referenced by nx::Processor::Processor(), and get4::Processor::Processor().

bool base::StreamProc::DistributeTriggers ( const GlobalTriggerMarksQueue & queue ) [virtual, inherited]

This is method to get back identified triggers from central manager

Definition at line 452 of file StreamProc.cxx.

References base::StreamProc::fGlobalTrig, base::StreamProc::GetC1Limit(), and base::StreamProc::triggerWindow.

virtual bool base::SysCoreProc::doTriggerSelection ( ) const [inline, protected, virtual]

maximum allowed board id, used for histogramming

Returns true when processor used to select trigger signal In subclass one could have alternative ways of trigger or ROI selections

Reimplemented from base::StreamProc.

Reimplemented in get4::Processor.

Definition at line 37 of file SysCoreProc.h.

References fTriggerSignal.

bool base::StreamProc::eraseSyncAt ( unsigned indx ) [inherited]

Removes sync at specified position

Definition at line 193 of file StreamProc.cxx.

References base::StreamProc::fSyncs, and base::StreamProc::fSyncScanIndex.

Referenced by base::ProcMgr::AnalyzeSyncMarkers().

void base::StreamProc::FillH1	(	H1handle	h1,
		double	x,
		double	weight = `1.`
	)			`[protected, inherited]`

Definition at line 137 of file StreamProc.cxx.

References base::ProcMgr::FillH1(), and base::StreamProc::mgr().

Referenced by base::StreamProc::AppendSubevent(), FillMsgPerBrdHist(), nx::Processor::FirstBufferScan(), get4::Processor::FirstBufferScan(), and base::StreamProc::TestHitTime().

void base::StreamProc::FillH2	(	H1handle	h2,
		double	x,
		double	y,
		double	weight = `1.`
	)			`[protected, inherited]`

Definition at line 158 of file StreamProc.cxx.

References base::ProcMgr::FillH2(), and base::StreamProc::mgr().

Referenced by nx::Processor::FirstBufferScan().

void base::SysCoreProc::FillMsgPerBrdHist ( unsigned cnt ) [inline, protected]

Definition at line 41 of file SysCoreProc.h.

References base::StreamProc::FillH1(), fMsgPerBrd, and GetBoardId().

Referenced by nx::Processor::FirstBufferScan(), and get4::Processor::FirstBufferScan().

virtual bool base::StreamProc::FirstBufferScan ( const base::Buffer & buf ) [inline, virtual, inherited]

Central method to scan new data in the queue This should include:

data indexing;
raw histogram filling;
search for special time markers;
multiplicity histogramming (if necessary)

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 215 of file StreamProc.h.

Referenced by base::StreamProc::ScanNewBuffers().

unsigned base::SysCoreProc::GetBoardId ( ) const [inline]

Returns configured board id

Definition at line 49 of file SysCoreProc.h.

References fBrdId.

Referenced by FillMsgPerBrdHist(), nx::Processor::FirstBufferScan(), get4::Processor::FirstBufferScan(), nx::Processor::SecondBufferScan(), and get4::Processor::SecondBufferScan().

double base::StreamProc::GetC1Limit	(	C1handle	c1,
		bool	isleft = `true`
	)			`[protected, inherited]`

Definition at line 188 of file StreamProc.cxx.

References base::ProcMgr::GetC1Limit(), and base::StreamProc::mgr().

Referenced by base::StreamProc::DistributeTriggers(), and base::StreamProc::ScanDataForNewTriggers().

const std::string base::StreamProc::GetProcName ( ) const [inline, inherited]

Definition at line 174 of file StreamProc.h.

References base::StreamProc::fName.

Referenced by base::StreamProc::AppendSubevent(), and nx::Processor::~Processor().

SyncMarker& base::StreamProc::getSync ( unsigned n ) [inline, inherited]

Definition at line 223 of file StreamProc.h.

References base::StreamProc::fSyncs.

Referenced by base::ProcMgr::AnalyzeSyncMarkers(), and base::StreamProc::LocalToGlobalTime().

virtual unsigned base::StreamProc::GetTriggerMultipl ( unsigned indx ) [inline, protected, virtual, inherited]

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 163 of file StreamProc.h.

Referenced by base::StreamProc::AppendSubevent().

bool base::StreamProc::IsSynchronisationRequired ( ) const [inline, inherited]

Method indicate if any kind of time-synchronization technique should be applied for the processor. If true, sync messages must be produced by processor and will be used. If false, local time stamps could be immediately used (with any necessary conversion)

Definition at line 191 of file StreamProc.h.

References base::StreamProc::fIsSynchronisationRequired.

Referenced by base::StreamProc::AddSyncMarker(), base::ProcMgr::AnalyzeSyncMarkers(), and base::StreamProc::LocalToGlobalTime().

bool base::StreamProc::IsTimeSorting ( ) const [inline, inherited]

Definition at line 178 of file StreamProc.h.

References base::StreamProc::fTimeSorting.

Referenced by base::StreamProc::AppendSubevent().

SyncMarker& base::StreamProc::lastSync ( ) [inline, inherited]

Definition at line 224 of file StreamProc.h.

References base::StreamProc::fSyncs.

double base::StreamProc::local_time_dist	(	GlobalTime_t	tm1,
		GlobalTime_t	tm2
	)			`[inline, protected, inherited]`

Definition at line 142 of file StreamProc.h.

Referenced by base::StreamProc::LocalToGlobalTime().

base::GlobalTime_t base::StreamProc::LocalToGlobalTime	(	base::GlobalTime_t	localtm,
		unsigned *	lastindx = `0`
	)			`[protected, inherited]`

Method converts local time (in ns representation) to global time TODO: One could introduce more precise method, which works with stamps

Definition at line 203 of file StreamProc.cxx.

References base::StreamProc::getSync(), base::SyncMarker::globaltm, base::StreamProc::IsSynchronisationRequired(), base::StreamProc::local_time_dist(), base::SyncMarker::localtm, and base::StreamProc::numSyncs().

Referenced by base::StreamProc::CollectTriggers(), base::StreamProc::ScanNewBuffersTm(), nx::Processor::SecondBufferScan(), and get4::Processor::SecondBufferScan().

base::C1handle base::StreamProc::MakeC1	(	const char *	name,
		double	left,
		double	right,
		H1handle	h1 = `0`
	)			`[protected, inherited]`

Definition at line 164 of file StreamProc.cxx.

References base::StreamProc::fPrefix, base::StreamProc::fSubPrefixD, base::StreamProc::fSubPrefixN, base::ProcMgr::MakeC1(), and base::StreamProc::mgr().

Referenced by base::StreamProc::StreamProc().

base::H1handle base::StreamProc::MakeH1	(	const char *	name,
		const char *	title,
		int	nbins,
		double	left,
		double	right,
		const char *	xtitle = `0`
	)			`[protected, inherited]`

Definition at line 120 of file StreamProc.cxx.

References base::StreamProc::fName, base::StreamProc::fPrefix, base::StreamProc::fSubPrefixD, base::StreamProc::fSubPrefixN, base::ProcMgr::MakeH1(), and base::StreamProc::mgr().

Referenced by CreateBasicHistograms(), nx::Processor::Processor(), get4::Processor::Processor(), get4::Processor::setRefChannel(), and base::StreamProc::StreamProc().

base::H2handle base::StreamProc::MakeH2	(	const char *	name,
		const char *	title,
		int	nbins1,
		double	left1,
		double	right1,
		int	nbins2,
		double	left2,
		double	right2,
		const char *	options = `0`
	)			`[protected, inherited]`

Definition at line 142 of file StreamProc.cxx.

References base::StreamProc::fName, base::StreamProc::fPrefix, base::StreamProc::fSubPrefixD, base::StreamProc::fSubPrefixN, base::ProcMgr::MakeH2(), and base::StreamProc::mgr().

Referenced by nx::Processor::Processor().

virtual double base::StreamProc::MaximumDisorderTm ( ) const [inline, protected, virtual, inherited]

Time constant, defines how far disorder of messages can go

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 158 of file StreamProc.h.

Referenced by base::StreamProc::ScanDataForNewTriggers(), and base::StreamProc::TestHitTime().

ProcMgr* base::StreamProc::mgr ( ) const [inline, inherited]

Definition at line 172 of file StreamProc.h.

References base::StreamProc::fMgr.

Referenced by base::StreamProc::ChangeC1(), base::StreamProc::FillH1(), base::StreamProc::FillH2(), base::StreamProc::GetC1Limit(), base::StreamProc::MakeC1(), base::StreamProc::MakeH1(), base::StreamProc::MakeH2(), nx::Processor::Processor(), get4::Processor::Processor(), SysCoreProc(), and base::StreamProc::TestC1().

unsigned base::StreamProc::NumReadySubevents ( ) const [inline, inherited]

Returns number of already build events

Definition at line 238 of file StreamProc.h.

References base::StreamProc::fGlobalTrigScanIndex.

unsigned base::StreamProc::numSyncs ( ) const [inline, inherited]

Returns total number of sync markers

Definition at line 222 of file StreamProc.h.

References base::StreamProc::fSyncs.

Referenced by base::ProcMgr::AnalyzeSyncMarkers(), and base::StreamProc::LocalToGlobalTime().

base::GlobalTime_t base::StreamProc::ProvidePotentialFlushTime ( GlobalTime_t last_marker ) [protected, virtual, inherited]

Method should return time, which could be flushed from the processor

Definition at line 325 of file StreamProc.cxx.

References base::StreamProc::fQueue, and base::StreamProc::fQueueScanIndexTm.

bool base::StreamProc::ScanDataForNewTriggers ( ) [virtual, inherited]

Here each processor should scan data again for new triggers

Definition at line 571 of file StreamProc.cxx.

References base::StreamProc::fGlobalTrig, base::StreamProc::fGlobalTrigRightIndex, base::StreamProc::fGlobalTrigScanIndex, base::StreamProc::fQueue, base::StreamProc::fQueueScanIndexTm, base::StreamProc::GetC1Limit(), base::StreamProc::MaximumDisorderTm(), base::StreamProc::SecondBufferScan(), base::StreamProc::SkipBuffers(), and base::StreamProc::triggerWindow.

bool base::StreamProc::ScanNewBuffers ( ) [virtual, inherited]

Scanning all new buffers in the queue

Definition at line 280 of file StreamProc.cxx.

References base::StreamProc::FirstBufferScan(), base::StreamProc::fQueue, and base::StreamProc::fQueueScanIndex.

bool base::StreamProc::ScanNewBuffersTm ( ) [virtual, inherited]

With new calibration set (where possible) time of buffers

Definition at line 306 of file StreamProc.cxx.

References base::StreamProc::fQueue, base::StreamProc::fQueueScanIndexTm, base::StreamProc::fSyncs, base::StreamProc::fSyncScanIndex, and base::StreamProc::LocalToGlobalTime().

virtual bool base::StreamProc::SecondBufferScan ( const base::Buffer & buf ) [inline, virtual, inherited]

Second generic scan of buffer Here selection of data for region-of-interest should be performed

Reimplemented in get4::Processor, and nx::Processor.

Definition at line 219 of file StreamProc.h.

Referenced by base::StreamProc::ScanDataForNewTriggers().

static void base::SysCoreProc::SetMaxBrdId ( unsigned max ) [inline, static]

Set maximum board number, used for histograming

Definition at line 86 of file SysCoreProc.h.

References fMaxBrdId.

void base::SysCoreProc::SetNoSyncSource ( ) [inline]

This declares that local time stamp will be used. Should work with single ROC setup or with optical-based readout, where all time counters are synchronized

Definition at line 63 of file SysCoreProc.h.

References SetSyncSource().

Referenced by get4::Processor::Processor().

void base::SysCoreProc::SetNoTriggerSignal ( ) [inline]

Disable any trigger generation

Definition at line 71 of file SysCoreProc.h.

References fTriggerSignal.

Referenced by nx::Processor::Processor(), and get4::Processor::Processor().

void base::SysCoreProc::SetPrint	(	int	nummsg,
		double	left = `-1.`,
		double	right = `-1.`
	)			`[inline]`

Set number of messages to be printed Optionally, one could specify time window where messages should be taken Time is same as time on histogram like AUX0t or SYNC1 (truncated to 1000 s)

Definition at line 77 of file SysCoreProc.h.

References fAnyPrinted, fNumPrintMessages, fPrintLeft, and fPrintRight.

void base::StreamProc::SetSubPrefix	(	const char *	subname = `""`,
		int	indx = `-1`,
		const char *	subname2 = `""`,
		int	indx2 = `-1`
	)			`[protected, inherited]`

Set subprefix for histograms and conditions

Definition at line 84 of file StreamProc.cxx.

References base::StreamProc::fSubPrefixD, and base::StreamProc::fSubPrefixN.

Referenced by nx::Processor::Processor(), get4::Processor::Processor(), and get4::Processor::setRefChannel().

void base::SysCoreProc::SetSyncSource ( unsigned id ) [inline]

Set signal id, used for time synchronization One could use SYNC0 (id=0) or SYNC1 (id=1) for synchronization with other components if other id specified, local time stamp will be used and no any sync will be used

Definition at line 54 of file SysCoreProc.h.

References base::StreamProc::fIsSynchronisationRequired, and fSyncSource.

Referenced by nx::Processor::Processor(), and SetNoSyncSource().

void base::StreamProc::SetTimeSorting ( bool on ) [inline, inherited]

Enable/disable time sorting of data in output event

Definition at line 177 of file StreamProc.h.

References base::StreamProc::fTimeSorting.

void base::SysCoreProc::SetTriggerSignal ( unsigned id ) [inline]

Set signal kind which should be used for data selection Values 0..3 are for AUX0 - AUX3 Values 10,11 are for SYNC0, SYNC1

Definition at line 68 of file SysCoreProc.h.

References fTriggerSignal.
