sw-host/syscoreshell.h File Reference

(r4864/r1008)

#include "defines.h"
#include <ctype.h>
#include <string.h>
#include <stdarg.h>
#include <stdlib.h>
#include "xbasic_types.h"
#include "xio.h"
#include "xexception_l.h"
#include "xutil.h"
#include "xtime_l.h"
#include "xcache_l.h"
#include "xparameters.h"
#include "xuartlite_l.h"
#include <xuartlite.h>
#include "ddr_header.h"
#include "tapdev.h"
#include "ether.h"
#include "ip.h"
#include "arp.h"
#include "udp.h"
#include "crc32.h"
#include "sd_reader.h"
#include "flash_access.h"

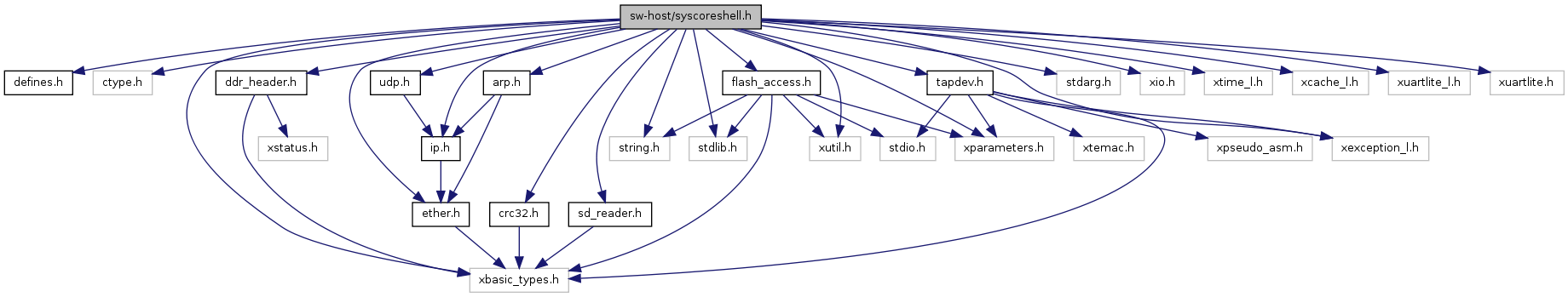

Include dependency graph for syscoreshell.h:

Go to the source code of this file.

Data Structures
struct	sc_config
struct	SysCore_Message_Packet
struct	SysCoreProfile
struct	SysCore_Data_Packet
struct	SysCore_Data_Request
struct	sc_statistic
struct	sc_data
Defines
#define	SYSCORE_VERSION   0x02000007
#define	DEBUGLEVEL   0
#define	NODE_FORBIDDEN   0
#define	NODE_MASTER   1
#define	NODE_CONTROL   2
#define	NODE_OBSERVER   3
#define	NODE_SKIP   4
#define	SCP_HEADER_OFFSET   UDP_PAYLOAD_OFFSET
#define	SCP_PAYLOAD_OFFSET   (SCP_HEADER_OFFSET + sizeof(struct SysCore_Message_Packet))
#define	SCP_MESSAGE_ETHER_FRAME_SIZE   (SCP_PAYLOAD_OFFSET + 80)
#define	MAX_SCP_PAYLOAD   MAX_UDP_PAYLOAD - sizeof(struct SysCore_Message_Packet)
#define	StartProfile(name)
#define	StopProfile(name, limit, label)
#define	RESEND_MAX_SIZE   128
#define	MASTER_DISCONNECT_TIME   500
#define	LOCK_RELEASE_TIME   200
Functions
Xuint32	GetReg (int nodekind, Xuint32 addr, Xuint32 *retVal, Xuint8 *rawdata, Xuint32 *rawdatasize)
Xuint32	PutReg (int nodekind, Xuint32 addr, Xuint32 val, Xuint8 *rawdata)
int	ethernetPacketDispatcher ()
void	timer_set (XTime *timer, XTime timeoutMS)
Xuint8	timer_expired (XTime *timer)
void	swap_byteorder (Xuint8 *target, Xuint16 bytes)
void	sc_printf (const char *fmt,...)
void	resetBuffers (int full)
void	processDataRequest (struct SysCore_Data_Request *req)
void	addSystemMessage (Xuint8 id, int flush)
void	sendConsoleData (Xuint32 addr, void *data, unsigned payloadSize)
int	overwriteSDFile ()
Variables
struct sc_config	gC
char	defConfigFileName []
Xuint8	global_file_buffer [ROC_ETH_FBUF_SIZE]
struct sc_data	gD
struct sc_statistic	gCnt

---

Define Documentation

#define DEBUGLEVEL   0

Definition at line 141 of file syscoreshell.h.

#define LOCK_RELEASE_TIME   200

Definition at line 349 of file syscoreshell.h.

#define MASTER_DISCONNECT_TIME   500

Definition at line 346 of file syscoreshell.h.

#define MAX_SCP_PAYLOAD   MAX_UDP_PAYLOAD - sizeof(struct SysCore_Message_Packet)

Definition at line 252 of file syscoreshell.h.

#define NODE_CONTROL   2

Definition at line 197 of file syscoreshell.h.

#define NODE_FORBIDDEN   0

Definition at line 195 of file syscoreshell.h.

#define NODE_MASTER   1

Definition at line 196 of file syscoreshell.h.

#define NODE_OBSERVER   3

Definition at line 198 of file syscoreshell.h.

#define NODE_SKIP   4

Definition at line 199 of file syscoreshell.h.

#define RESEND_MAX_SIZE   128

Definition at line 343 of file syscoreshell.h.

#define SCP_HEADER_OFFSET   UDP_PAYLOAD_OFFSET

Definition at line 249 of file syscoreshell.h.

#define SCP_MESSAGE_ETHER_FRAME_SIZE   (SCP_PAYLOAD_OFFSET + 80)

Definition at line 251 of file syscoreshell.h.

#define SCP_PAYLOAD_OFFSET   (SCP_HEADER_OFFSET + sizeof(struct SysCore_Message_Packet))

Definition at line 250 of file syscoreshell.h.

#define StartProfile

(

name

)

Value:

static struct SysCoreProfile name = { 0, 0, 0, 0 }; \
   XTime_GetTime(&(name.tm1));

Definition at line 297 of file syscoreshell.h.

#define StopProfile	(		name,
			limit,
			label
	)

Value:

XTime_GetTime(&(name.tm2)); \
   name.sum += (name.tm2 - name.tm1); \
   if (++name.cnt >= limit) { \
      int irate = (name.sum / name.cnt) * 1000; \
      int drate = irate % XPAR_CPU_PPC405_CORE_CLOCK_FREQ_HZ; \
      irate = irate / XPAR_CPU_PPC405_CORE_CLOCK_FREQ_HZ; \
      drate = (drate * 1000) / XPAR_CPU_PPC405_CORE_CLOCK_FREQ_HZ; \
      xil_printf(label" tm = %d us\r\n", irate*1000 + drate); \
      name.sum = 0; \
      name.cnt = 0; \
   }

Definition at line 301 of file syscoreshell.h.

#define SYSCORE_VERSION   0x02000007

Definition at line 138 of file syscoreshell.h.

---

Function Documentation

void addSystemMessage	(	Xuint8	id,
		int	flush
	)

int ethernetPacketDispatcher

(

)

Xuint32 GetReg	(	int	nodekind,
		Xuint32	addr,
		Xuint32 *	retVal,
		Xuint8 *	rawdata,
		Xuint32 *	rawdatasize
	)

int overwriteSDFile

(

)

void processDataRequest

(

struct SysCore_Data_Request *

req

)

Xuint32 PutReg	(	int	nodekind,
		Xuint32	addr,
		Xuint32	val,
		Xuint8 *	rawdata
	)

void resetBuffers

(

int

full

)

void sc_printf	(	const char *	fmt,
			...
	)

void sendConsoleData	(	Xuint32	addr,
		void *	data,
		unsigned	payloadSize
	)

void swap_byteorder	(	Xuint8 *	target,
		Xuint16	bytes
	)

Xuint8 timer_expired

(

XTime *

timer

)

void timer_set	(	XTime *	timer,
		XTime	timeoutMS
	)

---

Variable Documentation

char defConfigFileName[]

struct sc_config gC

Definition at line 19 of file Simulator.cxx.

Referenced by UdpSimulator::GetReg(), UdpSimulator::initNewSockets(), UdpSimulator::mainLoop(), UdpSimulator::PutReg(), UdpSimulator::resetSimulator(), and UdpSimulator::UdpSimulator().

struct sc_statistic gCnt

struct sc_data gD

Definition at line 21 of file Simulator.cxx.

Referenced by UdpSimulator::checkCtrlOperationAllowed(), UdpSimulator::GetReg(), UdpSimulator::mainLoop(), UdpSimulator::makeSysMessage(), UdpSimulator::OnRawData(), UdpSimulator::processDataRequest(), UdpSimulator::PutReg(), UdpSimulator::sendDataPacket(), and UdpSimulator::UdpSimulator().

Xuint8 global_file_buffer[ROC_ETH_FBUF_SIZE]

Definition at line 226 of file syscoreshell.h.
