roc::BoardsVector Class Reference

#include <BoardsVector.h>

Inheritance diagram for roc::BoardsVector:

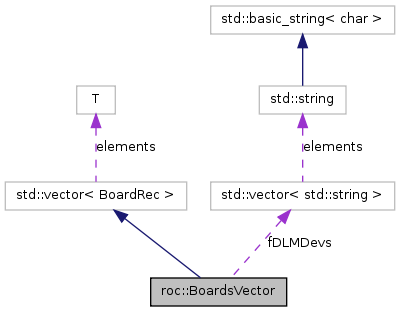

Collaboration diagram for roc::BoardsVector:

Public Member Functions
	BoardsVector ()
virtual	~BoardsVector ()
void	addRoc (const std::string &roc, const std::string &febs)
bool	setBoard (unsigned n, roc::Board *brd, std::string devname)
void	addDLMDev (const std::string &dlm)
void	returnBoards ()
void	produceSystemMessage (uint32_t id)
roc::Board *	brd (unsigned n)
int	numAdc (unsigned n, unsigned nfeb)
MessagesVector *	readoutExtraMessages ()
void	autoped_switch (bool on)
void	issueDLM (int code)
bool	isAnyGet4 ()
void	ResetAllGet4 ()
Protected Member Functions
void	autoped_issue_system_message (roc::Board *brd, uint32_t type)
void	autoped_setnxmode (nxyter::FebBase *feb, bool testtrig)
void	readFeb (uint32_t rocid, uint32_t febid, nxyter::FebBase *feb, MessagesVector *vect)
Protected Attributes
std::vector< std::string >	fDLMDevs

---

Detailed Description

Definition at line 44 of file BoardsVector.h.

---

Constructor & Destructor Documentation

roc::BoardsVector::BoardsVector

(

)

[inline]

Definition at line 48 of file BoardsVector.h.

virtual roc::BoardsVector::~BoardsVector

(

)

[inline, virtual]

Definition at line 49 of file BoardsVector.h.

---

Member Function Documentation

void roc::BoardsVector::addDLMDev

(

const std::string &

dlm

)

[inline]

Definition at line 53 of file BoardsVector.h.

References fDLMDevs.

Referenced by roc::ReadoutApplication::CreateRocCombiner().

void roc::BoardsVector::addRoc	(	const std::string &	roc,
		const std::string &	febs
	)

Definition at line 13 of file BoardsVector.cxx.

References roc::BoardRec::febskind, and roc::BoardRec::rocname.

Referenced by roc::ReadoutApplication::CreateAppModules(), and bnet::RocWorkerApplication::CreateCombiner().

void roc::BoardsVector::autoped_issue_system_message	(	roc::Board *	brd,
		uint32_t	type
	)			[protected]

Definition at line 238 of file BoardsVector.cxx.

References base::Board::put(), and ROC_ADDSYSMSG.

Referenced by autoped_switch().

void roc::BoardsVector::autoped_setnxmode	(	nxyter::FebBase *	feb,
		bool	testtrig
	)			[protected]

Definition at line 256 of file BoardsVector.cxx.

References nxyter::FebBase::getNxOffline(), nxyter::NxChip::i2c(), nxyter::FebBase::numNx(), nxyter::FebBase::nx(), and nxyter::NxI2c::setTestModes().

Referenced by autoped_switch().

void roc::BoardsVector::autoped_switch

(

bool

on

)

Definition at line 268 of file BoardsVector.cxx.

References autoped_issue_system_message(), autoped_setnxmode(), brd(), nxyter::RocNx::fireTestPulse(), base::Gpio::setConfig(), roc::SYSMSG_USER_CALIBR_OFF, roc::SYSMSG_USER_CALIBR_ON, and roc::SYSMSG_USER_RECONFIGURE.

Referenced by roc::ReadoutApplication::SwitchCalibrationMode(), and bnet::RocWorkerApplication::SwitchCalibrationMode().

roc::Board* roc::BoardsVector::brd

(

unsigned

n

)

[inline]

Definition at line 59 of file BoardsVector.h.

Referenced by autoped_switch(), ResetAllGet4(), and returnBoards().

bool roc::BoardsVector::isAnyGet4

(

)

Definition at line 97 of file BoardsVector.cxx.

void roc::BoardsVector::issueDLM

(

int

code

)

Definition at line 304 of file BoardsVector.cxx.

References fDLMDevs.

int roc::BoardsVector::numAdc	(	unsigned	n,
		unsigned	nfeb
	)

Definition at line 170 of file BoardsVector.cxx.

References nxyter::FebBase::getNumMonAdc().

Referenced by roc::ReadoutApplication::CreateAppModules(), and bnet::RocWorkerApplication::CreateReadout().

void roc::BoardsVector::produceSystemMessage

(

uint32_t

id

)

Definition at line 247 of file BoardsVector.cxx.

References ROC_ADDSYSMSG.

Referenced by roc::ReadoutApplication::ExecuteCommand().

void roc::BoardsVector::readFeb	(	uint32_t	rocid,
		uint32_t	febid,
		nxyter::FebBase *	feb,
		MessagesVector *	vect
	)			[protected]

Definition at line 180 of file BoardsVector.cxx.

References nxyter::FebBase::getMonAdc(), nxyter::FebBase::getNumMonAdc(), nxyter::FebBase::monAdcSupport(), roc::MSG_SYS, roc::Message::reset(), roc::Message::setMessageType(), roc::Message::setRocNumber(), roc::Message::setSysMesData(), roc::Message::setSysMesType(), and roc::SYSMSG_ADC.

Referenced by readoutExtraMessages().

roc::MessagesVector * roc::BoardsVector::readoutExtraMessages

(

)

Definition at line 207 of file BoardsVector.cxx.

References roc::MSG_SYS, readFeb(), roc::Message::reset(), roc::Message::setMessageType(), roc::Message::setRocNumber(), roc::Message::setSysMesData(), roc::Message::setSysMesType(), and roc::SYSMSG_PCTIME.

Referenced by roc::ReadoutApplication::SwitchCalibrationMode(), and bnet::RocWorkerApplication::SwitchCalibrationMode().

void roc::BoardsVector::ResetAllGet4

(

)

Definition at line 104 of file BoardsVector.cxx.

References base::OperList::addPut(), brd(), ROC_ADDSYSMSG, ROC_FEET_CMD_TO_FEET, ROC_FEET_TRANSMIT_MASK, and roc::SYSMSG_USER_RECONFIGURE.

Referenced by roc::ReadoutApplication::ExecuteCommand().

void roc::BoardsVector::returnBoards

(

)

Definition at line 140 of file BoardsVector.cxx.

References roc::CmdReturnBoardPtr::Board(), brd(), fDLMDevs, nxyter::RocNx::fireTestPulse(), and base::Gpio::setConfig().

Referenced by roc::ReadoutApplication::BeforeAppModulesDestroyed(), bnet::RocWorkerApplication::BeforeAppModulesDestroyed(), roc::ReadoutApplication::CreateAppModules(), and bnet::RocWorkerApplication::CreateCombiner().

bool roc::BoardsVector::setBoard	(	unsigned	n,
		roc::Board *	brd,
		std::string	devname
	)

Definition at line 22 of file BoardsVector.cxx.

References roc::BoardRec::brd, roc::BoardRec::devname, roc::BoardRec::feb0, roc::BoardRec::feb1, roc::BoardRec::febskind, nxyter::RocNx::fireTestPulse(), roc::BoardRec::get4, base::Gpio::getConfig(), roc::BoardRec::gpio_mask_off, roc::BoardRec::gpio_mask_on, roc::BoardRec::gpio_mask_save, nxyter::FebBase::newFeb(), base::Gpio::packConfig(), nxyter::FebBase::stringToType(), and base::Gpio::unpackConfig().

Referenced by roc::ReadoutApplication::CreateRocCombiner().

---

Field Documentation

std::vector<std::string> roc::BoardsVector::fDLMDevs [protected]

Definition at line 46 of file BoardsVector.h.

Referenced by addDLMDev(), issueDLM(), and returnBoards().

---

The documentation for this class was generated from the following files:

• plugin/roc/BoardsVector.h (r4864/r3024)
• plugin/src/BoardsVector.cxx (r4864/r4162)
