Simple DAQ environent for setups with a single ROC and 0-2 FEBs. More...

#include <QuickDaq.h>

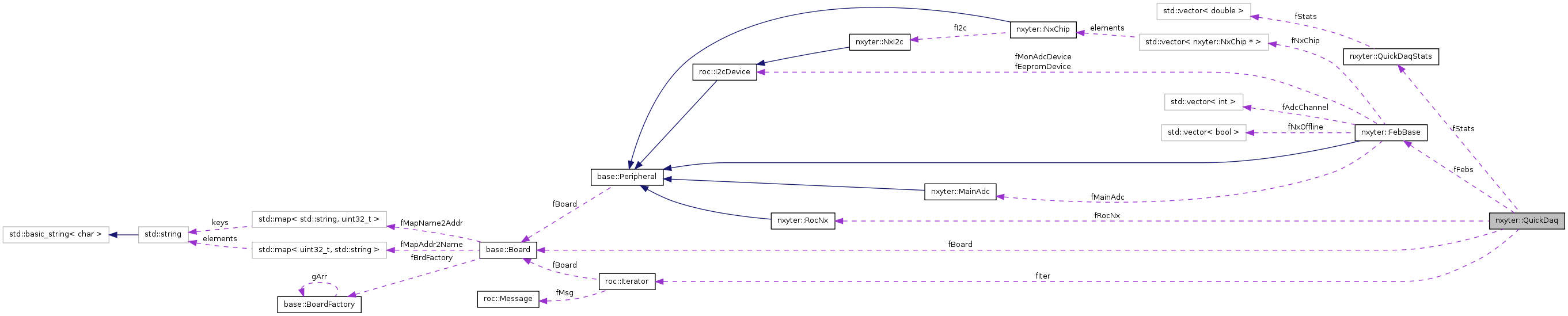

Collaboration diagram for nxyter::QuickDaq:

Public Types
enum	daqState { kDaqStopped = 0, kDaqStarting, kDaqRunning, kDaqStopping }
	Names for DAQ states. More...
enum	daqStopCode { kDaqStopPending = 0, kDaqStopByCount, kDaqStopByTime, kDaqStopByInterrupt, kDaqStopByStop, kDaqStopByTimeout }
	Names for DAQ stop codes. More...
Public Member Functions
	QuickDaq (base::Board *board)
	Constructor with Board and no FEB.
	QuickDaq (nxyter::FebBase feb0=0, nxyter::FebBase feb1=0)
	Normal constructor with one or two FEB's.
virtual	~QuickDaq ()
int	setNxTestModes (bool testpuls, bool testtrig, int calselect)
	Setup test pulser and test trigger mode in all nXYTERs.
int	setNxRegisterAll (uint8_t reg, uint8_t val, bool veri=true)
	Write a value into a register of all nXYTERs.
void	nextRunNxMask (int nxmask)
	Set active nXYTER mask for next run.
int	startRun (int maxmsg=0, double maxtime=0., bool noinit=false)
	Prepare for data taking, start a run.
int	stopRun (bool hardstop=false)
	End data taking.
void	interruptRun ()
	Interrupt data taking.
bool	testRun (double timeout=0.)
	Check run status.
roc::Message &	msg ()
	Access current message data object.
uint32_t	getMsgEpoch () const
	Returns current epoch.
double	getMsgTime ()
	Returns full message time as `double`.
double	getRunTime ()
	Returns wall clock time of message (measured since start run).
double	getStartTime ()
	Returns start time.
double	getStopTime ()
	Returns stop time.
const QuickDaqStats &	stats ()
	Access statistics object.
int	getState ()
	Returns DAQ state.
int	getStopCode ()
	Returns DAQ stop code.
Static Public Member Functions
static double	now ()
	Returns current time as a `double`.
Protected Attributes
base::Board *	fBoard
	board pointer
nxyter::FebBase *	fFebs [2]
	available FEBs
nxyter::RocNx	fRocNx
	rocnx pointer
int	fState
	DAQ state.
int	fStopCode
	DAQ stop code.
int	fDaqLowWater
	for setRocLowHighWater
int	fDaqHighWater
	for setRocLowHighWater
uint32_t	fDaqFlushTimer
	for setRocBufferFlushTimer
double	fDaqStaStoTimeout
	timeout for start/stop
QuickDaqStats	fStats
	statistic counters
bool	fNextNxMaskActive
	nextRunNxMask() called
int	fNextNxMask
	nXYTER mask for next run
double	fStartTime
	time start call
double	fStopTime
	time stop call
double	fStartMsgTime
	time start message
double	fStopMsgTime
	time stop message
double	fMaxMsg
	maximal number of msg in run
double	fMaxTime
	maximal time of run
roc::Iterator	fIter
	current iterator
double	fMsgTime
	current message time stamp
double	fNowTime
	wall time of message

Detailed Description

Simple DAQ environent for setups with a single ROC and 0-2 FEBs.

Definition at line 19 of file QuickDaq.h.

Member Enumeration Documentation

enum nxyter::QuickDaq::daqState

Names for DAQ states.

Enumerator:

kDaqStopped	stopped, not active
kDaqStarting	started, before start sysmsg
kDaqRunning	started, start sysmsg received
kDaqStopping	rundown, before stopped sysmsg

Definition at line 46 of file QuickDaq.h.

enum nxyter::QuickDaq::daqStopCode

Names for DAQ stop codes.

Enumerator:

kDaqStopPending	DAQ active or never started.
kDaqStopByCount	stop due to message count
kDaqStopByTime	stop due to time expired
kDaqStopByInterrupt	stop due to interrupt()
kDaqStopByStop	stop due to stop()
kDaqStopByTimeout	stop due to timeout

Definition at line 53 of file QuickDaq.h.

Constructor & Destructor Documentation

nxyter::QuickDaq::QuickDaq ( base::Board * board ) [explicit]

Constructor with Board and no FEB.

Sets up QuickDaq object with no FEB.

Parameters:

board

ROC board pointer

Definition at line 31 of file QuickDaq.cxx.

References fFebs.

nxyter::QuickDaq::QuickDaq	(	nxyter::FebBase *	feb0 = `0`,
		nxyter::FebBase *	feb1 = `0`
	)			`[explicit]`

Normal constructor with one or two FEB's.

Sets up QuickDaq object with full board and FEB context.

Parameters:

	feb0	1st connected FEB (maybe 0)
	feb1	2nd connected FEB (maybe 0)

Exceptions:

runtime_error

when both feb0 and feb1 or null pointers or if two febs given both not hosted by the same board.

Definition at line 63 of file QuickDaq.cxx.

References fBoard, fFebs, and base::Peripheral::getBoard().

nxyter::QuickDaq::~QuickDaq ( ) [virtual]

Todo:: recheck dtor logic, is buffer drain needed with DABC (it is with KNUT)

Definition at line 95 of file QuickDaq.cxx.

References fState, kDaqRunning, and stopRun().

Member Function Documentation

uint32_t nxyter::QuickDaq::getMsgEpoch ( ) const [inline]

Returns current epoch.

Definition at line 83 of file QuickDaq.h.

References fIter, and roc::Iterator::getMsgEpoch().

Referenced by cmd_printdata().

double nxyter::QuickDaq::getMsgTime ( ) [inline]

Returns full message time as double.

Definition at line 87 of file QuickDaq.h.

References fMsgTime.

Referenced by cmd_testrocaux(), and cmd_testrocsync().

double nxyter::QuickDaq::getRunTime ( ) [inline]

Returns wall clock time of message (measured since start run).

Definition at line 91 of file QuickDaq.h.

References fNowTime, and fStartTime.

double nxyter::QuickDaq::getStartTime ( ) [inline]

Returns start time.

Definition at line 95 of file QuickDaq.h.

References fStartTime.

Referenced by cmd_printdata(), cmd_testrocaux(), cmd_testrocsync(), and print_daq_stats().

int nxyter::QuickDaq::getState ( ) [inline]

Returns DAQ state.

Definition at line 107 of file QuickDaq.h.

References fState.

int nxyter::QuickDaq::getStopCode ( ) [inline]

Returns DAQ stop code.

Definition at line 111 of file QuickDaq.h.

References fStopCode.

double nxyter::QuickDaq::getStopTime ( ) [inline]

Returns stop time.

Definition at line 99 of file QuickDaq.h.

References fStopTime.

Referenced by cmd_printdata(), cmd_testrocaux(), cmd_testrocsync(), and print_daq_stats().

void nxyter::QuickDaq::interruptRun ( )

Interrupt data taking.

Main application for this method is to be called from a signal handler, often a SIGINT handler to catch a ^C. The code example below shows how such a SIGINT handler can be implemented.

void hdl_int(int sig, siginfo_t *info, void *cnxt)
{
  p_to_quickdaq->interruptRun();
}


int main(int argc, char* argv[])
{
  struct sigaction act;
  memset (&act, '\0', sizeof(act));
  act.sa_sigaction = &hdl_int;
  act.sa_flags = SA_SIGINFO;
  if (sigaction(SIGINT, &act, 0) < 0) {
    perror ("sigaction");
  }
...
}

With such a handler DAQ runs will be gracefully terminated upon ^C.

Definition at line 288 of file QuickDaq.cxx.

References fState, fStopCode, and kDaqStopped.

Referenced by hdl_int().

roc::Message& nxyter::QuickDaq::msg ( ) [inline]

Access current message data object.

Definition at line 79 of file QuickDaq.h.

References fIter, and roc::Iterator::msg().

Referenced by acquire_data(), nxyter::FebUtil::acquireTestTriggerData(), cmd_autosettrh(), cmd_printdata(), cmd_testrocaux(), cmd_testrocsync(), and testRun().

void nxyter::QuickDaq::nextRunNxMask ( int nxmask )

Set active nXYTER mask for next run.

Definition at line 151 of file QuickDaq.cxx.

References fNextNxMask, and fNextNxMaskActive.

Referenced by nxyter::FebUtil::acquireTestTriggerData().

double nxyter::QuickDaq::now ( ) [static]

Returns current time as a double.

Definition at line 385 of file QuickDaq.cxx.

Referenced by startRun(), stopRun(), and testRun().

int nxyter::QuickDaq::setNxRegisterAll	(	uint8_t	reg,
		uint8_t	val,
		bool	veri = `true`
	)

Write a value into a register of all nXYTERs.

Writes val into register reg of all nXYTERs in the setup.

Parameters:

	reg	register number
	val	value to be written
	veri	if `true` readback verification done (default is `true`)

Returns:: see roc::Board get/put/oper return codes

Definition at line 137 of file QuickDaq.cxx.

References fFebs, base::Board::operErrBuildInc(), and nxyter::FebBase::setNxRegisterAll().

int nxyter::QuickDaq::setNxTestModes	(	bool	testpuls,
		bool	testtrig,
		int	calselect
	)

Setup test pulser and test trigger mode in all nXYTERs.

Calls for all nXYTERs in the setup the NxI2c::setTestModes() method, check the documentation of this method for details.

Parameters:

	testtrig	determines whether test trigger mode is enabled
	testpuls	determines whether test pulser mode is enabled
	calselect	determines which channel group receives test pulse
