Represents the I2C interface of an nXYTER. More...

#include <NxI2c.h>

Inheritance diagram for nxyter::NxI2c:

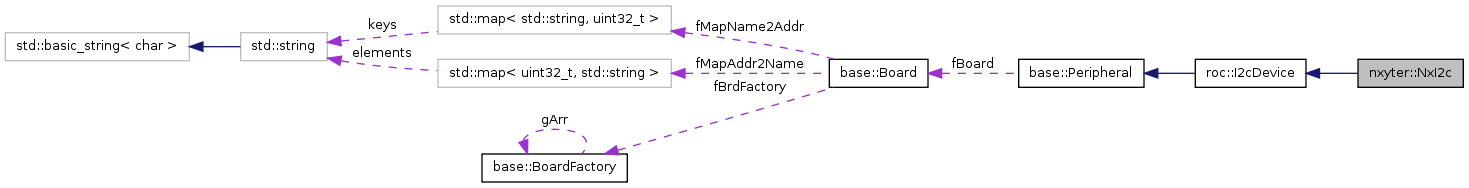

Collaboration diagram for nxyter::NxI2c:

Public Member Functions
	NxI2c (base::Board *board, int port=0, uint8_t addr=0)
	Constructor with full addressing path information.
virtual	~NxI2c ()
int	setContext (NxContext &cntx, int domask=nxyter::kDoAll, bool veri=true)
	Write the part or full context to nXYTER with optional readback verify.
int	getContext (NxContext &cntx, int domask=nxyter::kDoAll)
	Read the part or full context from nXYTER.
int	getCounters (uint16_t &overflow, uint16_t &tokenmiss)
	Read and clear the error counters from nXYTER.
int	setTestModes (bool testpuls, bool testtrig, int calselect)
	Setup test pulser and test trigger mode.
int	probe ()
	Probe whether an nXYTER exists.
int	setToDefault (bool ispos=false, int maskon=128, int poweron=128)
	Write default values into nXYTER registers.
void	printRegisters (std::ostream &os, int domask=nxyter::kDoAll)
	Read nXYTER registers and print to stream os.
int	setRegMask (const uint8_t *val)
	Write the mask nXYTER register set.
int	setRegCore (const uint8_t *val)
	Write the core nXYTER register set.
int	setRegTrim (const uint8_t *val)
	Write 129 8 bit data values to the trim-daq register 42.
int	getRegMask (uint8_t *val)
	Read the mask nXYTER register set.
int	getRegCore (uint8_t *val)
	Read the core nXYTER register set.
int	getRegTrim (uint8_t *val)
	Read 129 8 bit data values from the trim-daq register 42.
bool	isSPI () const
void	setPortNumber (int port)
	Set I2C bus port number on ROC.
int	getPortNumber () const
	Returns I2C bus port number on ROC.
void	setSlaveAddr (uint8_t addr)
	Set slave address of device on I2C bus.
uint8_t	getSlaveAddr () const
	Return slave address of device on I2C bus.
int	setRegister (uint8_t reg, uint8_t val, bool veri=false)
	Write to device register with optional readback verification.
int	getRegister (uint8_t reg, uint8_t &val)
	Read 8 bit from device register.
int	getRegister16 (uint8_t reg, uint16_t &val)
	Read 16 bit from device register.
int	setRegisterVerify (uint8_t reg, uint8_t valset, uint8_t &valget)
	Write to device register and return the readback value.
int	setRegisterArray (uint8_t reg, const uint8_t *val, int nreg, bool veri=false)
	Write to device register array with optional readback verification.
int	getRegisterArray (uint8_t reg, uint8_t *val, int nreg)
	Read from device register array.
int	setMailboxRegister (uint8_t reg, const uint8_t *val, int nval)
	Write to device mailbox register.
int	getMailboxRegister (uint8_t reg, uint8_t *val, int nval)
	Read from device mailbox register.
base::Board &	board ()
	Return reference to `roc::Board` which hosts the `Peripheral`.
base::Board *	getBoard () const
	Returns pointer to the roc::Board which hosts the `Peripheral`.
Static Public Member Functions
static const char *	registerName (int reg)
	Returns name for register reg (or "" if undefined).
static const char *	configurationBitName (int bit)
	Returns descriptive string for configuration bit bit.
static uint8_t	delayToSetting (uint8_t delay)
	Convert delay to a nXYTER delay buffer setting.
static uint8_t	settingToDelay (uint8_t val)
	Convert nXYTER delay buffer setting into a delay.
static void	addAddrMap (base::Board *board)
	Add the I2C interface address set to the address mapping tables.
Protected Attributes
int	fUseSPI
	indicate that SPI->I2C interface for SysCore3 should be used
int	fPort
	I2C bus port number.
uint8_t	fSlaveAddr
	I2C device slave address.
base::Board *	fBoard
	board pointer
Related Functions
(Note that these are not member functions.)
std::ostream &	operator<< (std::ostream &os, nxyter::NxI2c &obj)
	ostream insertion for nxyter::NxI2c

Detailed Description

Represents the I2C interface of an nXYTER.

This class represents the I2C interface of an nXYTER. It is derived from roc::I2cDevice and provides

a probe() method to check whether an xXYTER is connected
methods to write/read a complete register context to/from an nXYTER, see setContext() and getContext()
a method to access the error counters, see getCounters()
a convenience method to manipulate configuration bits, see setTestModes()
some convenient methods to write/read the main registers and the trim-daq (shift) register.

Note:: The nxyter::NxContext class represents the nXYTER register context, while this class mediates the access to the nXYTER.

Definition at line 78 of file NxI2c.h.

Constructor & Destructor Documentation

nxyter::NxI2c::NxI2c	(	base::Board *	board,
		int	port = `0`,
		uint8_t	addr = `0`
	)			`[explicit]`

Constructor with full addressing path information.

Sets up NxI2c object with full addressing information

Parameters:

	board	ROC board pointer
	port	the ROC port (equivalent to the I2C bus interface port)
	addr	the I2C device slave address

Definition at line 37 of file NxI2c.cxx.

nxyter::NxI2c::~NxI2c ( ) [virtual]

Definition at line 45 of file NxI2c.cxx.

Member Function Documentation

void roc::I2cDevice::addAddrMap ( base::Board * board ) [static, inherited]

Add the I2C interface address set to the address mapping tables.

Definition at line 413 of file I2cDevice.cxx.

References base::Board::addRegAddrMapping(), base::Board::is_SPI_I2C(), ROC_NX_I2C_DATA, ROC_NX_I2C_ERROR, ROC_NX_I2C_READ16, ROC_NX_I2C_REGISTER, ROC_NX_I2C_SLAVEADDR, ROC_NX_I2C_SWITCH, ROC_SPI_COMMAND, ROC_SPI_MASTER_STATUS, ROC_SPI_RXDATA, ROC_SPI_TRANSMIT, and ROC_SPI_TXDATA.

Referenced by cmd_board(), and main().

base::Board & base::Peripheral::board ( ) [inherited]

Return reference to roc::Board which hosts the Peripheral.

Exceptions:

std::runtime_error

if board pointer not initialized or 0.

Definition at line 30 of file Peripheral.cxx.

References base::Peripheral::fBoard.

const char * nxyter::NxI2c::configurationBitName ( int bit ) [static]

Returns descriptive string for configuration bit bit.

The nXYTER has two configuration registers (32 and 33). For the purpose of method the bits are number through, bit 0 is LSB of register 32, bit 8 is LSB of register 33.

Definition at line 575 of file NxI2c.cxx.

Referenced by NxyterWidget::NxyterWidget(), and nxyter::NxContext::print().

uint8_t nxyter::NxI2c::delayToSetting ( uint8_t delay ) [static]

Convert delay to a nXYTER delay buffer setting.

The nXYTER delay buffer settings represent the switch settings of the internal delay elements. This method converts a nominal delay value, given as an integer number in the range 0 to 80, into a delay buffer setting suitable to be written into an nXYTER register.

Parameters:

delay

delay value, between 0 and 80

Returns:: 8 bit setting, ready to be written to delay buffer register

See also:: settingToDelay()

Note:: data taken from nXYTER Manual version: 1.40 (DRAFT) May 25, 2009

Definition at line 608 of file NxI2c.cxx.

Referenced by cmd_setnx(), and settingToDelay().

base::Board* base::Peripheral::getBoard ( ) const [inline, inherited]

Returns pointer to the roc::Board which hosts the Peripheral.

Note: normally using board() is more convenient.

Definition at line 38 of file Peripheral.h.

References base::Peripheral::fBoard.

Referenced by nxyter::FebUtil::acquireTestTriggerData(), nxyter::NxChip::activate(), nxyter::FebBase::addNxChip(), nxyter::NxChip::deactivate(), nxyter::NxChip::isactive(), and nxyter::QuickDaq::QuickDaq().

int nxyter::NxI2c::getContext	(	NxContext &	cntx,
		int	domask = `nxyter::kDoAll`
	)

Read the part or full context from nXYTER.

The domask allows to enable separately whether the mask, core or trim part of the register set is written.

Parameters:

	cntx	nXYTER register context container
	domask	one or several of the mask bits nxyter::kDoMask, nxyter::kDoCore, or nxyter::kDoTrim

Returns:: see roc::Board get/put/oper return codes

Note:: the two nXYTER error counters are not accessed, to read them use the getCounters() method.; for the read of the mask register part the test trigger mode will temporarily disabled in case it is active. This might interfere with data taking and should therefore be avoided when DAQ is active.

See also:: setContext()

Definition at line 119 of file NxI2c.cxx.

References nxyter::NxContext::dataRegisterMain(), nxyter::NxContext::dataRegisterTrim(), getRegCore(), getRegMask(), getRegTrim(), nxyter::kDoCore, nxyter::kDoMask, nxyter::kDoTrim, and base::Board::operErrBuildInc().

Referenced by cmd_autotrim(), cmd_autovbiass(), cmd_idsigch(), cmd_printstatus(), cmd_scanadclat(), cmd_scanmonadc(), cmd_scanvbiasf(), cmd_scanvbiass(), cmd_setnxmask(), cmd_setnxpower(), cmd_setnxtrim(), NxyterWidget::getSubConfig(), printRegisters(), nxyter::FebUtil::saveFeb(), setContext(), nxyter::FebUtil::testFebControlPathCombo(), and nxyter::FebUtil::testNxRegisters().

int nxyter::NxI2c::getCounters	(	uint16_t &	overflow,
		uint16_t &	tokenmiss
	)

Read and clear the error counters from nXYTER.

Returns the values of the two error counters of the nXYTER. Note that they are read-only and the read access is implemened as read and clear.

Parameters:

	overflow	Overflow counter
	tokenmiss	Missing token counter

Returns:: see roc::Board get/put/oper return codes

Definition at line 149 of file NxI2c.cxx.

References roc::I2cDevice::getRegisterArray().

int roc::I2cDevice::getMailboxRegister	(	uint8_t	reg,
		uint8_t *	val,
		int	nval
	)			`[inherited]`

Read from device mailbox register.

Reads nreg 8bit values from a single device register reg. This method is useful for Fifo's or mailbox type registers. The I2C error flags are checked for each transfer, reading is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nval	number of values to read

Returns:: see roc::Board get/put/oper return codes

See also:: setMailboxRegister()

Definition at line 401 of file I2cDevice.cxx.

References roc::I2cDevice::getRegister(), and base::Board::operErrBuild().

int roc::I2cDevice::getPortNumber ( ) const [inline, inherited]

Returns I2C bus port number on ROC.

Definition at line 32 of file I2cDevice.h.

References roc::I2cDevice::fPort.

Referenced by printRegisters().

int nxyter::NxI2c::getRegCore ( uint8_t * val )

Read the core nXYTER register set.

Reads the core registers, this is all except the mask and trim registers and the read-only overflow and missing token counter registers, thus 16-29,32,33,38,39,43-45.

Parameters:

val

array with 46 values

Returns:: see roc::Board get/put/oper return codes

See also:: setRegCore()

Note:: consider to use getContext().

Definition at line 457 of file NxI2c.cxx.

References roc::I2cDevice::getRegisterArray(), and base::Board::operErrBuildInc().

Referenced by getContext().

int roc::I2cDevice::getRegister	(	uint8_t	reg,
		uint8_t &	val
	)			`[inherited]`

Read 8 bit from device register.

Reads an 8bit value from device register reg and checks I2C status for error flags.

Parameters:

	reg	device register number
	val	value

Returns:: see roc::Board get/put/oper return codes

See also:: setRegister()

Definition at line 152 of file I2cDevice.cxx.

References base::Peripheral::board(), roc::I2cDevice::fPort, roc::I2cDevice::fSlaveAddr, roc::I2cDevice::isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), and base::Board::operGen().

Referenced by nxyter::FebUtil::acquireTestPulserData(), cmd_autotrim(), cmd_getnx(), roc::I2cDevice::getMailboxRegister(), roc::I2cDevice::getRegisterArray(), getRegMask(), getRegTrim(), probe(), setTestModes(), and nxyter::FebUtil::testNxRegisters().

int roc::I2cDevice::getRegister16	(	uint8_t	reg,
		uint16_t &	val
	)			`[inherited]`

Read 16 bit from device register.

Reads an 16bit value from device register reg and checks I2C status for error flags.

Parameters:

	reg	device register number
	val	value

Returns:: see roc::Board get/put/oper return codes

Definition at line 220 of file I2cDevice.cxx.

References base::Peripheral::board(), roc::I2cDevice::fPort, roc::I2cDevice::fSlaveAddr, roc::I2cDevice::isSPI(), and base::Board::operGen().

Referenced by nxyter::FebBase::discoverFebs(), and nxyter::FebBase::getMonAdc().

int roc::I2cDevice::getRegisterArray	(	uint8_t	reg,
		uint8_t *	val,
		int	nreg
	)			`[inherited]`

Read from device register array.

Reads nreg 8bit values from an array of device registers starting at register number reg. The I2C error flags are checked for each transfer, reading is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nreg	number of registers to read

Returns:: see roc::Board get/put/oper return codes

See also:: setRegisterArray()

Definition at line 350 of file I2cDevice.cxx.

References roc::I2cDevice::getRegister(), and base::Board::operErrBuild().

Referenced by getCounters(), getRegCore(), and getRegMask().

int nxyter::NxI2c::getRegMask ( uint8_t * val )

Read the mask nXYTER register set.

Reads the mask registers.

Parameters:

val

array with 46 values

Returns:: see roc::Board get/put/oper return codes

Note:: consider to use getContext().; for the read of the mask register part the test trigger mode will temporarily disabled in case it is active. This might interfere with data taking and should therefore be avoided when DAQ is active. To retrieve the mask bits directly use getRegisterArray().

See also:: setRegMask()

Definition at line 423 of file NxI2c.cxx.

References roc::I2cDevice::getRegister(), roc::I2cDevice::getRegisterArray(), nxyter::kNxC0TestTrigEnable, nxyter::kNxRegConfig0, and roc::I2cDevice::setRegister().

Referenced by getContext().

int nxyter::NxI2c::getRegTrim ( uint8_t * val )

Read 129 8 bit data values from the trim-daq register 42.

Parameters:

val

array with 129 values, [0..127] holds channel 0 to 127 and [128] the test channel value.

Returns:: see roc::Board get/put/oper return codes

Bug:: This implementation is currently not atomic ! Two concurrent executions of this method will destroy the content of the nXYTER trim-daq register !

Note:: consider to use getContext().; val and nXYTER storage order differ, the test channel data is in val[128] while it is the first value to be read from the chip.

See also:: setRegTrim()

Definition at line 486 of file NxI2c.cxx.

References roc::I2cDevice::getRegister(), nxyter::kNxRegTrimDAQPower, base::Board::operErrBuild(), roc::I2cDevice::setRegister(), and roc::I2cDevice::setRegisterVerify().

Referenced by getContext().

uint8_t roc::I2cDevice::getSlaveAddr ( ) const [inline, inherited]

Return slave address of device on I2C bus.

Definition at line 40 of file I2cDevice.h.

References roc::I2cDevice::fSlaveAddr.

Referenced by cmd_getnx(), nxyter::FebBase::eepromSupport(), nxyter::FebBase::monAdcSupport(), and printRegisters().

bool roc::I2cDevice::isSPI ( ) const [inline, inherited]

Definition at line 25 of file I2cDevice.h.

References roc::I2cDevice::fUseSPI.

Referenced by roc::I2cDevice::getRegister(), roc::I2cDevice::getRegister16(), roc::I2cDevice::setRegister(), and roc::I2cDevice::setRegisterVerify().

void nxyter::NxI2c::printRegisters	(	std::ostream &	os,
		int	domask = `nxyter::kDoAll`
	)

Read nXYTER registers and print to stream os.

Reads full register context with getContext() and prints them with NxContext::print(). For details consult the documentation of these two methods.

Definition at line 331 of file NxI2c.cxx.

References getContext(), roc::I2cDevice::getPortNumber(), roc::I2cDevice::getSlaveAddr(), base::Board::operErrToString(), and nxyter::NxContext::print().

Referenced by cmd_printnx(), operator<<(), and nxyter::FebBase::printRegisters().

int nxyter::NxI2c::probe ( )

Probe whether an nXYTER exists.

This method tries to test in a reliable but as much as possible non-intrusive way whether an nXYTER chip is accessible under the port and slave address setup for the object. The probe procedure uses the registers

24: test pulse amplitue
38: test pulse delay
39: test trigger delay

and performs four steps

read these registers
write distinct values into these registers
read back and check the distinct values
restore the initial settings (saved in first step)

The method aborts and returns with a non-zero return code when any of the above operation or tests fail. In case of success the nXYTER chip is in the same state as before.

The probe is mostly non-intrusive because only registers used in test pulse/trigger modes are used, and should therefore not disput normal operation.

Note:: the obvious simple probe, using the mask registers, doesn't work because a read to register 0-15 does not return the mask registers when the chip is in test trigger mode ! Therefore the registers 24,38, and 39 are used.

Returns:: 0 on success and non-zero if any step fails. See roc::Board get/put/oper return codes for details. The index refers to the 12 get and set operations and thus allows to precisely pinpoint at what point the probe aborted.

Definition at line 271 of file NxI2c.cxx.

References roc::I2cDevice::getRegister(), nxyter::kNxRegdelayTestTrig, base::Board::kOperVerifyErr, base::Board::operErrBuild(), and roc::I2cDevice::setRegister().

Referenced by nxyter::FebBase::discoverFebs(), nxyter::FebUtil::probe(), nxyter::FebBase::probe(), and nxyter::FebUtil::testNxControlPath().

const char * nxyter::NxI2c::registerName ( int reg ) [static]

Returns name for register reg (or "" if undefined).

Definition at line 513 of file NxI2c.cxx.

Referenced by cmd_getnx(), NxyterWidget::NxyterWidget(), and nxyter::NxContext::print().

int nxyter::NxI2c::setContext	(	NxContext &	cntx,
		int	domask = `nxyter::kDoAll`,
		bool	veri = `true`
	)

Write the part or full context to nXYTER with optional readback verify.

Updates nXYTER registers with the values given by the context cntx. The domask allows to enable separately whether the mask, core or trim part of the register set is written. If veri is true, the context is readback and compared.

Parameters:

	cntx	nXYTER register context container
	domask	one or several of the mask bits nxyter::kDoMask, nxyter::kDoCore, or nxyter::kDoTrim
	veri	if `true` readback verification done (default is `true`)

Returns:: see roc::Board get/put/oper return codes.

Note:: for the readback verification of a write of the mask register part the test trigger mode will temporarily disabled in case it is active. This might interfere with data taking and should therefore be avoided when DAQ is active.

See also:: getContext()

Definition at line 71 of file NxI2c.cxx.

References nxyter::NxContext::dataRegisterMain(), nxyter::NxContext::dataRegisterTrim(), nxyter::NxContext::equal(), getContext(), nxyter::kDoCore, nxyter::kDoMask, nxyter::kDoTrim, base::Board::kOperVerifyErr, base::Board::operErrBuild(), base::Board::operErrBuildInc(), setRegCore(), setRegMask(), and setRegTrim().

Referenced by nxyter::FebUtil::acquireTestPulserData(), cmd_autosettrh(), cmd_autotrim(), cmd_autovbiass(), cmd_scanadclat(), cmd_scanmonadc(), cmd_scanvbiasf(), cmd_scanvbiass(), cmd_setnxmask(), cmd_setnxpower(), cmd_setnxtrim(), nxyter::FebUtil::restoreFeb(), NxyterWidget::setSubConfig(), setToDefault(), nxyter::FebUtil::testFebControlPathCombo(), and nxyter::FebUtil::testNxRegisters().

int roc::I2cDevice::setMailboxRegister	(	uint8_t	reg,
		const uint8_t *	val,
		int	nval
	)			`[inherited]`

Write to device mailbox register.

Writes the nreg 8bit values from array val to a single device register reg. This method is useful for Fifo's or mailbox type registers. The I2C error flags are checked for each transfer, writing is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nval	number of values to write

Returns:: see roc::Board get/put/oper return codes

See also:: getMailboxRegister()

Definition at line 376 of file I2cDevice.cxx.

References base::Board::operErrBuild(), and roc::I2cDevice::setRegister().

Referenced by setRegTrim().

void roc::I2cDevice::setPortNumber ( int port ) [inline, inherited]

Set I2C bus port number on ROC.

Definition at line 28 of file I2cDevice.h.

References roc::I2cDevice::fPort.

int nxyter::NxI2c::setRegCore ( const uint8_t * val )

Write the core nXYTER register set.

Writes the core registers, this is all except the mask and trim registers and the read-only overflow and missing token counter registers, thus 16-29,32,33,38,39,43-45.

Parameters:

val

array with 46 values

Returns:: see roc::Board get/put/oper return codes

See also:: getRegCore()

Note:: consider to use setContext().

Definition at line 372 of file NxI2c.cxx.

References base::Board::operErrBuildInc(), and roc::I2cDevice::setRegisterArray().

Referenced by setContext().

int roc::I2cDevice::setRegister	(	uint8_t	reg,
		uint8_t	val,
		bool	veri = `false`
	)			`[inherited]`

Write to device register with optional readback verification.

Writes the 8bit value val to device register reg. If veri is true, the register contents is read back and verified. The I2C status is checked for error flags after the write and optional read cycle.

Parameters:

	reg	device register number
	val	value
	veri	if `true` readback verification done (default is `false`)

Returns:: see roc::Board get/put/oper return codes

See also:: getRegister(), setRegisterVerify()

Definition at line 75 of file I2cDevice.cxx.

References base::Peripheral::board(), roc::I2cDevice::fPort, roc::I2cDevice::fSlaveAddr, roc::I2cDevice::isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), and base::Board::operGen().

Referenced by nxyter::FebUtil::acquireTestPulserData(), NxyterWidget::biasRegChanged(), cmd_autosettrh(), cmd_autotrim(), cmd_autovbiass(), cmd_scanmonadc(), cmd_scanvbiasf(), cmd_setnx(), get_vbiass_data(), getRegMask(), getRegTrim(), probe(), roc::I2cDevice::setMailboxRegister(), nxyter::FebBase::setNxRegisterAll(), roc::I2cDevice::setRegisterArray(), roc::I2cDevice::setRegisterVerify(), setRegTrim(), setTestModes(), and nxyter::FebUtil::testNxRegisters().

int roc::I2cDevice::setRegisterArray	(	uint8_t	reg,
		const uint8_t *	val,
		int	nreg,
		bool	veri = `false`
	)			`[inherited]`

Write to device register array with optional readback verification.

Writes the nreg 8bit values from array val to an array of device registers starting at register number reg. When veri is true, each value is readback and verified. The I2C error flags are checked for each transfer, writing is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nreg	number of registers to write
	veri	if `true` readback verification done (default is `false`)

Returns:: see roc::Board get/put/oper return codes

See also:: getRegisterArray()

Definition at line 324 of file I2cDevice.cxx.

References base::Board::operErrBuild(), and roc::I2cDevice::setRegister().

Referenced by setRegCore(), and setRegMask().

int roc::I2cDevice::setRegisterVerify	(	uint8_t	reg,
		uint8_t	valset,
		uint8_t &	valget
	)			`[inherited]`

Write to device register and return the readback value.

Writes the 8bit value valset to device register reg, reads it back and returns the readback value in valget. The I2C status is checked for error flags after the write and read cycle.

Parameters:

	reg	device register number
	valset	value to be written
	valget	value returned from readback

Returns:: see roc::Board get/put/oper return codes

Note:: The method just returns the readback value and does not test whether valget equals valset, thus never returns a base::Board::kOperVerifyErr return code.

See also:: setRegister(), getRegister()

Definition at line 270 of file I2cDevice.cxx.

References base::Peripheral::board(), roc::I2cDevice::fPort, roc::I2cDevice::fSlaveAddr, roc::I2cDevice::isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), base::Board::operGen(), and roc::I2cDevice::setRegister().

Referenced by getRegTrim().

int nxyter::NxI2c::setRegMask ( const uint8_t * val )

Write the mask nXYTER register set.

Writes the mask registers.

Parameters:

val

array with 46 values

Returns:: see roc::Board get/put/oper return codes

Note:: consider to use setContext().

See also:: getRegMask()

Definition at line 355 of file NxI2c.cxx.

References roc::I2cDevice::setRegisterArray().

Referenced by setContext().

int nxyter::NxI2c::setRegTrim ( const uint8_t * val )

Write 129 8 bit data values to the trim-daq register 42.

Parameters:

val

array with 129 values, [0..127] holds channel 0 to 127 and [128] the test channel value.

Returns:: see roc::Board get/put/oper return codes

Note:: consider to use setContext().; val and nXYTER storage order differ, the test channel data is in val[128] while it is the first value to be written into the chip.

See also:: getRegTrim()

Definition at line 400 of file NxI2c.cxx.

References nxyter::kNxRegTrimDAQPower, base::Board::operErrBuild(), base::Board::operErrBuildInc(), roc::I2cDevice::setMailboxRegister(), and roc::I2cDevice::setRegister().

Referenced by setContext().

void roc::I2cDevice::setSlaveAddr ( uint8_t addr ) [inline, inherited]

Set slave address of device on I2C bus.

Definition at line 36 of file I2cDevice.h.

References roc::I2cDevice::fSlaveAddr.

Referenced by cmd_setnxaddr(), and nxyter::Feb1nxGenD::Feb1nxGenD().

int nxyter::NxI2c::setTestModes	(	bool	testpuls,
		bool	testtrig,
		int	calselect
	)

Setup test pulser and test trigger mode.

The test pulse input of the nXYTER can be used to

fire a test pulse, coupled into a quarter of the channels
force a hit on all channels

This defines four operation modes, all of which have useful applications. This method sets the kNxC0TestPulsEnable and kNxC0TestTrigEnable bits in register kNxRegConfig0 according to the arguments testpuls and testtrig. The test pulse polarity, controlled by bit kNxC0TestPulsPolarity, is set according to the already configured front-end polarity, given by kNxC1FrontEndPolarity in register kNxRegConfig1.

The four possible choices of channel group receiving the test pulse are selected by calselect and written into the kNxC1CalibSelectMask bits of register kNxRegConfig1.

Parameters:

testpuls

determines whether test pulser mode is enabled

testtrig

determines whether test trigger mode is enabled

calselect

determines which channel group receives the test pulse. Only the 2 LSBs are used:

0 will select channels 0,4,8,...,124
1 will select channels 1,5,9,...,125
2 will select channels 2,6,10,...,126
3 will select channels 3,7,11,...,127

Returns:: see roc::Board get/put/oper return codes

Definition at line 195 of file NxI2c.cxx.

References roc::I2cDevice::getRegister(), nxyter::kNxC0TestPulsEnable, nxyter::kNxC0TestPulsPolarity, nxyter::kNxC0TestTrigEnable, nxyter::kNxC1CalibSelectMask, nxyter::kNxC1FrontEndPolarity, nxyter::kNxRegConfig0, nxyter::kNxRegConfig1, base::Board::operErrBuild(), and roc::I2cDevice::setRegister().

Referenced by autoped_setnxmode(), roc::BoardsVector::autoped_setnxmode(), cmd_autovbiass(), cmd_idsigch(), cmd_scanvbiasf(), cmd_scanvbiass(), cmd_setnxmode(), and nxyter::FebBase::setNxTestModes().

uint8_t nxyter::NxI2c::settingToDelay ( uint8_t val ) [static]

Convert nXYTER delay buffer setting into a delay.

The nXYTER delay buffer settings represent the switch settings of the internal delay elements. This method converts this setting into a number which should correspond to the delay. It is the inverse of delayToSetting(). It will return 0xff for settings not produced by delayToSetting().

Parameters:

val

8 bit setting, as read from delay buffer register

Returns:: delay value, or 0xff of non-recommended setting seen.

See also:: delayToSetting()

Definition at line 637 of file NxI2c.cxx.

References delay(), and delayToSetting().

Referenced by cmd_getnx(), and nxyter::NxContext::print().

int nxyter::NxI2c::setToDefault	(	bool	ispos = `false`,
		int	maskon = `128`,
		int	poweron = `128`
	)

Write default values into nXYTER registers.

Constructs a context with default values with and writes these values into the associated nXYTER. See documentation of NxContext::setToDefault() for description of the parameters ispos, maskon, and poweron.
