Base class to represent a ROC I2C Bus Device. More...

#include <I2cDevice.h>

Inheritance diagram for roc::I2cDevice:

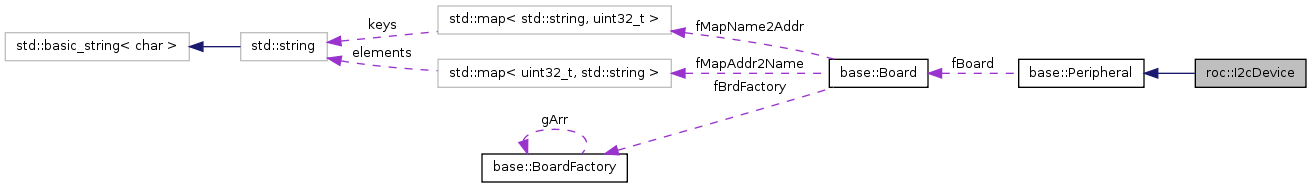

Collaboration diagram for roc::I2cDevice:

Public Member Functions
	I2cDevice ()
	Default constructor to make old ROOT hapy.
	I2cDevice (base::Board *board, int port=0, uint8_t addr=0)
	Constructor with full addressing path information.
virtual	~I2cDevice ()
bool	isSPI () const
void	setPortNumber (int port)
	Set I2C bus port number on ROC.
int	getPortNumber () const
	Returns I2C bus port number on ROC.
void	setSlaveAddr (uint8_t addr)
	Set slave address of device on I2C bus.
uint8_t	getSlaveAddr () const
	Return slave address of device on I2C bus.
int	setRegister (uint8_t reg, uint8_t val, bool veri=false)
	Write to device register with optional readback verification.
int	getRegister (uint8_t reg, uint8_t &val)
	Read 8 bit from device register.
int	getRegister16 (uint8_t reg, uint16_t &val)
	Read 16 bit from device register.
int	setRegisterVerify (uint8_t reg, uint8_t valset, uint8_t &valget)
	Write to device register and return the readback value.
int	setRegisterArray (uint8_t reg, const uint8_t *val, int nreg, bool veri=false)
	Write to device register array with optional readback verification.
int	getRegisterArray (uint8_t reg, uint8_t *val, int nreg)
	Read from device register array.
int	setMailboxRegister (uint8_t reg, const uint8_t *val, int nval)
	Write to device mailbox register.
int	getMailboxRegister (uint8_t reg, uint8_t *val, int nval)
	Read from device mailbox register.
base::Board &	board ()
	Return reference to `roc::Board` which hosts the `Peripheral`.
base::Board *	getBoard () const
	Returns pointer to the roc::Board which hosts the `Peripheral`.
Static Public Member Functions
static void	addAddrMap (base::Board *board)
	Add the I2C interface address set to the address mapping tables.
Protected Attributes
int	fUseSPI
	indicate that SPI->I2C interface for SysCore3 should be used
int	fPort
	I2C bus port number.
uint8_t	fSlaveAddr
	I2C device slave address.
base::Board *	fBoard
	board pointer

Detailed Description

Base class to represent a ROC I2C Bus Device.

A ROC can have several I2C bus ports. They are served by a common control logic, a switch determines which port is active at a given time. Each bus can have several devices attached, identified by a slave address.

The class holds the addressing information needed to reach the I2cDevice:

the ROC board pointer (in the base class)
the I2C bus port number
the I2C device slave address

Definition at line 14 of file I2cDevice.h.

Constructor & Destructor Documentation

roc::I2cDevice::I2cDevice ( )

Default constructor to make old ROOT hapy.

Definition at line 32 of file I2cDevice.cxx.

roc::I2cDevice::I2cDevice	(	base::Board *	board,
		int	port = `0`,
		uint8_t	addr = `0`
	)

Constructor with full addressing path information.

Sets up I2cDevice object with full addressing information

Parameters:

	board	ROC board pointer
	port	the I2C bus port number
	addr	the I2C device slave address

Definition at line 47 of file I2cDevice.cxx.

References fUseSPI, and base::Board::is_SPI_I2C().

roc::I2cDevice::~I2cDevice ( ) [virtual]

Definition at line 55 of file I2cDevice.cxx.

Member Function Documentation

void roc::I2cDevice::addAddrMap ( base::Board * board ) [static]

Add the I2C interface address set to the address mapping tables.

Definition at line 413 of file I2cDevice.cxx.

References base::Board::addRegAddrMapping(), base::Board::is_SPI_I2C(), ROC_NX_I2C_DATA, ROC_NX_I2C_ERROR, ROC_NX_I2C_READ16, ROC_NX_I2C_REGISTER, ROC_NX_I2C_SLAVEADDR, ROC_NX_I2C_SWITCH, ROC_SPI_COMMAND, ROC_SPI_MASTER_STATUS, ROC_SPI_RXDATA, ROC_SPI_TRANSMIT, and ROC_SPI_TXDATA.

Referenced by cmd_board(), and main().

base::Board & base::Peripheral::board ( ) [inherited]

Return reference to roc::Board which hosts the Peripheral.

Exceptions:

std::runtime_error

if board pointer not initialized or 0.

Definition at line 30 of file Peripheral.cxx.

References base::Peripheral::fBoard.

Referenced by nxyter::RocNx::fireTestPulse(), nxyter::MainAdc::getAdcDirect(), nxyter::NxChip::getChannelDelay(), nxyter::MainAdc::getChannelLatency(), nxyter::MainAdc::getClockDelayBufg(), nxyter::MainAdc::getClockDelaySrInit(), base::Gpio::getConfig(), nxyter::RocNx::getDataDebug(), nxyter::RocNx::getFifoEmpty(), nxyter::RocNx::getFifoFull(), nxyter::RocNx::getNxActive(), getRegister(), nxyter::MainAdc::getRegister(), getRegister16(), base::Gpio::getSyncBaud(), base::Gpio::getSyncScale(), nxyter::FebBase::initRoc(), nxyter::FebBase::resetNxI2cBus(), nxyter::FebBase::resetNxI2cRegister(), nxyter::RocNx::resetRocNxTs(), nxyter::NxChip::setChannelDelay(), nxyter::MainAdc::setChannelLatency(), nxyter::MainAdc::setChannelMux(), nxyter::MainAdc::setClockDelay(), nxyter::MainAdc::setClockDelayBufg(), nxyter::MainAdc::setClockDelaySrInit(), base::Gpio::setConfig(), nxyter::RocNx::setDebugMode(), nxyter::RocNx::setLTSDelay(), nxyter::RocNx::setNxActive(), nxyter::NxChip::setNxNumber(), nxyter::RocNx::setParityCheck(), setRegister(), nxyter::MainAdc::setRegister(), setRegisterVerify(), base::Gpio::setSyncBaud(), base::Gpio::setSyncScale(), and nxyter::RocNx::setToDefault().

base::Board* base::Peripheral::getBoard ( ) const [inline, inherited]

Returns pointer to the roc::Board which hosts the Peripheral.

Note: normally using board() is more convenient.

Definition at line 38 of file Peripheral.h.

References base::Peripheral::fBoard.

Referenced by nxyter::FebUtil::acquireTestTriggerData(), nxyter::NxChip::activate(), nxyter::FebBase::addNxChip(), nxyter::NxChip::deactivate(), nxyter::NxChip::isactive(), and nxyter::QuickDaq::QuickDaq().

int roc::I2cDevice::getMailboxRegister	(	uint8_t	reg,
		uint8_t *	val,
		int	nval
	)

Read from device mailbox register.

Reads nreg 8bit values from a single device register reg. This method is useful for Fifo's or mailbox type registers. The I2C error flags are checked for each transfer, reading is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nval	number of values to read

Returns:: see roc::Board get/put/oper return codes

See also:: setMailboxRegister()

Definition at line 401 of file I2cDevice.cxx.

References getRegister(), and base::Board::operErrBuild().

int roc::I2cDevice::getPortNumber ( ) const [inline]

Returns I2C bus port number on ROC.

Definition at line 32 of file I2cDevice.h.

References fPort.

Referenced by nxyter::NxI2c::printRegisters().

int roc::I2cDevice::getRegister	(	uint8_t	reg,
		uint8_t &	val
	)

Read 8 bit from device register.

Reads an 8bit value from device register reg and checks I2C status for error flags.

Parameters:

	reg	device register number
	val	value

Returns:: see roc::Board get/put/oper return codes

See also:: setRegister()

Definition at line 152 of file I2cDevice.cxx.

References base::Peripheral::board(), fPort, fSlaveAddr, isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), and base::Board::operGen().

Referenced by nxyter::FebUtil::acquireTestPulserData(), cmd_autotrim(), cmd_getnx(), getMailboxRegister(), getRegisterArray(), nxyter::NxI2c::getRegMask(), nxyter::NxI2c::getRegTrim(), nxyter::NxI2c::probe(), nxyter::NxI2c::setTestModes(), and nxyter::FebUtil::testNxRegisters().

int roc::I2cDevice::getRegister16	(	uint8_t	reg,
		uint16_t &	val
	)

Read 16 bit from device register.

Reads an 16bit value from device register reg and checks I2C status for error flags.

Parameters:

	reg	device register number
	val	value

Returns:: see roc::Board get/put/oper return codes

Definition at line 220 of file I2cDevice.cxx.

References base::Peripheral::board(), fPort, fSlaveAddr, isSPI(), and base::Board::operGen().

Referenced by nxyter::FebBase::discoverFebs(), and nxyter::FebBase::getMonAdc().

int roc::I2cDevice::getRegisterArray	(	uint8_t	reg,
		uint8_t *	val,
		int	nreg
	)

Read from device register array.

Reads nreg 8bit values from an array of device registers starting at register number reg. The I2C error flags are checked for each transfer, reading is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nreg	number of registers to read

Returns:: see roc::Board get/put/oper return codes

See also:: setRegisterArray()

Definition at line 350 of file I2cDevice.cxx.

References getRegister(), and base::Board::operErrBuild().

Referenced by nxyter::NxI2c::getCounters(), nxyter::NxI2c::getRegCore(), and nxyter::NxI2c::getRegMask().

uint8_t roc::I2cDevice::getSlaveAddr ( ) const [inline]

Return slave address of device on I2C bus.

Definition at line 40 of file I2cDevice.h.

References fSlaveAddr.

Referenced by cmd_getnx(), nxyter::FebBase::eepromSupport(), nxyter::FebBase::monAdcSupport(), and nxyter::NxI2c::printRegisters().

bool roc::I2cDevice::isSPI ( ) const [inline]

Definition at line 25 of file I2cDevice.h.

References fUseSPI.

Referenced by getRegister(), getRegister16(), setRegister(), and setRegisterVerify().

int roc::I2cDevice::setMailboxRegister	(	uint8_t	reg,
		const uint8_t *	val,
		int	nval
	)

Write to device mailbox register.

Writes the nreg 8bit values from array val to a single device register reg. This method is useful for Fifo's or mailbox type registers. The I2C error flags are checked for each transfer, writing is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nval	number of values to write

Returns:: see roc::Board get/put/oper return codes

See also:: getMailboxRegister()

Definition at line 376 of file I2cDevice.cxx.

References base::Board::operErrBuild(), and setRegister().

Referenced by nxyter::NxI2c::setRegTrim().

void roc::I2cDevice::setPortNumber ( int port ) [inline]

Set I2C bus port number on ROC.

Definition at line 28 of file I2cDevice.h.

References fPort.

int roc::I2cDevice::setRegister	(	uint8_t	reg,
		uint8_t	val,
		bool	veri = `false`
	)

Write to device register with optional readback verification.

Writes the 8bit value val to device register reg. If veri is true, the register contents is read back and verified. The I2C status is checked for error flags after the write and optional read cycle.

Parameters:

	reg	device register number
	val	value
	veri	if `true` readback verification done (default is `false`)

Returns:: see roc::Board get/put/oper return codes

See also:: getRegister(), setRegisterVerify()

Definition at line 75 of file I2cDevice.cxx.

References base::Peripheral::board(), fPort, fSlaveAddr, isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), and base::Board::operGen().

Referenced by nxyter::FebUtil::acquireTestPulserData(), NxyterWidget::biasRegChanged(), cmd_autosettrh(), cmd_autotrim(), cmd_autovbiass(), cmd_scanmonadc(), cmd_scanvbiasf(), cmd_setnx(), get_vbiass_data(), nxyter::NxI2c::getRegMask(), nxyter::NxI2c::getRegTrim(), nxyter::NxI2c::probe(), setMailboxRegister(), nxyter::FebBase::setNxRegisterAll(), setRegisterArray(), setRegisterVerify(), nxyter::NxI2c::setRegTrim(), nxyter::NxI2c::setTestModes(), and nxyter::FebUtil::testNxRegisters().

int roc::I2cDevice::setRegisterArray	(	uint8_t	reg,
		const uint8_t *	val,
		int	nreg,
		bool	veri = `false`
	)

Write to device register array with optional readback verification.

Writes the nreg 8bit values from array val to an array of device registers starting at register number reg. When veri is true, each value is readback and verified. The I2C error flags are checked for each transfer, writing is stopped when the first error is detected.

Parameters:

	reg	first device register number
	val	value array
	nreg	number of registers to write
	veri	if `true` readback verification done (default is `false`)

Returns:: see roc::Board get/put/oper return codes

See also:: getRegisterArray()

Definition at line 324 of file I2cDevice.cxx.

References base::Board::operErrBuild(), and setRegister().

Referenced by nxyter::NxI2c::setRegCore(), and nxyter::NxI2c::setRegMask().

int roc::I2cDevice::setRegisterVerify	(	uint8_t	reg,
		uint8_t	valset,
		uint8_t &	valget
	)

Write to device register and return the readback value.

Writes the 8bit value valset to device register reg, reads it back and returns the readback value in valget. The I2C status is checked for error flags after the write and read cycle.

Parameters:

	reg	device register number
	valset	value to be written
	valget	value returned from readback

Returns:: see roc::Board get/put/oper return codes

Note:: The method just returns the readback value and does not test whether valget equals valset, thus never returns a base::Board::kOperVerifyErr return code.
