Device class with all generic nXYTER access methods. More...

#include <RocNx.h>

Inheritance diagram for nxyter::RocNx:

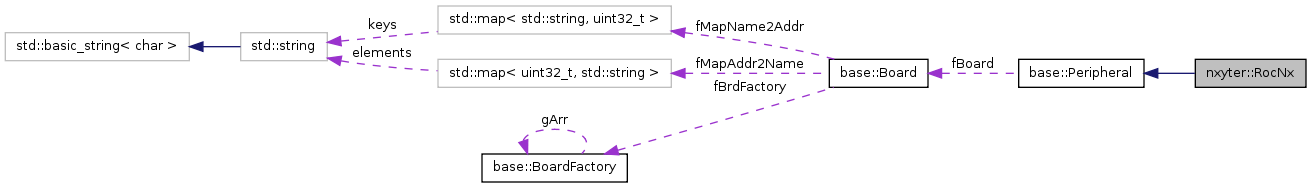

Collaboration diagram for nxyter::RocNx:

Public Member Functions
	RocNx (base::Board *board)
	Constructor with full addressing path information.
virtual	~RocNx ()
int	setToDefault ()
	Set nXYTER specific interface registers in ROC to default values.
int	resetRocNxTs ()
	Reset nXYTER (and ROC) timestamp system.
int	fireTestPulse (uint32_t delay, uint32_t period, int32_t width, uint32_t number)
	Fire a test pulse sequence after next nXYTER/ROC timestamp reset.
int	fireTestPulse (uint32_t period, int32_t width, uint32_t number)
	Fire a test pulse sequence.
int	setNxActive (int nx0, int nx1, int nx2, int nx3)
	setNxActive
int	setNxActive (uint32_t mask)
	setRocNxActive
int	getNxActive (uint32_t &mask)
	NX_getActivate.
int	setLTSDelay (uint32_t val)
	setRocLTSDelay
int	setParityCheck (uint32_t val)
	Sets nXYTER parity check flag.
int	setDebugMode (uint32_t val)
	Sets debug mode readout flag in ROC.
int	getFifoFull (uint32_t &val)
	Retrieves FIFO full state from ROC (1=fifo full).
int	getFifoEmpty (uint32_t &val)
	Retrieves FIFO empty state from ROC (1=fifo empty).
int	getDataDebug (std::vector< nxyter::DataDebug > &datvec, int nmsg)
	Try to acquire nmsg messages from 'debug' port.
base::Board &	board ()
	Return reference to `roc::Board` which hosts the `Peripheral`.
base::Board *	getBoard () const
	Returns pointer to the roc::Board which hosts the `Peripheral`.
Static Public Member Functions
static void	addAddrMap (base::Board *board, unsigned hw_kind=base::kind_nXYTER)
	Add the nXYTER interface address set to the address mapping tables.
Protected Attributes
base::Board *	fBoard
	board pointer

Detailed Description

Device class with all generic nXYTER access methods.

Definition at line 12 of file RocNx.h.

Constructor & Destructor Documentation

nxyter::RocNx::RocNx ( base::Board * board ) [explicit]

Constructor with full addressing path information.

Sets up RocNx object with full addressing information

Parameters:

board

ROC board pointer

Definition at line 24 of file RocNx.cxx.

nxyter::RocNx::~RocNx ( ) [virtual]

Definition at line 31 of file RocNx.cxx.

Member Function Documentation

void nxyter::RocNx::addAddrMap	(	base::Board *	board,
		unsigned	hw_kind = `base::kind_nXYTER`
	)			`[static]`

Add the nXYTER interface address set to the address mapping tables.

Definition at line 373 of file RocNx.cxx.

References base::Board::addRegAddrMapping(), base::kind_newNX, base::kind_nXYTER, ROC_NX_ADC_DATA, ROC_NX_BURST1, ROC_NX_BURST2, ROC_NX_BURST3, ROC_NX_DEBUG_MODE, ROC_NX_DELAY_LTS, ROC_NX_DELAY_NX0, ROC_NX_DELAY_NX1, ROC_NX_DELAY_NX2, ROC_NX_DELAY_NX3, ROC_NX_FEB4NX, ROC_NX_FIFO_EMPTY, ROC_NX_FIFO_FULL, ROC_NX_FIFO_RESET, ROC_NX_HWV, ROC_NX_I2C_REGRESET, ROC_NX_I2C_RESET, ROC_NX_INIT, ROC_NX_LT_HIGH, ROC_NX_LT_LOW, ROC_NX_NX_DATA, ROC_NX_NXACTIVE, ROC_NX_PARITY_CHECK, ROC_NX_TESTPULSE_LENGTH, ROC_NX_TESTPULSE_LENGTH2, ROC_NX_TESTPULSE_NUMBER, ROC_NX_TESTPULSE_RESET_DELAY, ROC_NX_TESTPULSE_RUNNING, ROC_NX_TESTPULSE_START, ROC_NX_THROTTLE, and ROC_NX_TS_RESET.

Referenced by cmd_board(), and main().

base::Board & base::Peripheral::board ( ) [inherited]

Return reference to roc::Board which hosts the Peripheral.

Exceptions:

std::runtime_error

if board pointer not initialized or 0.

Definition at line 30 of file Peripheral.cxx.

References base::Peripheral::fBoard.

int nxyter::RocNx::fireTestPulse	(	uint32_t	period,
		int32_t	width,
		uint32_t	number
	)

Fire a test pulse sequence.

The ROC has a build-in test pulse generator which can produce pulse trains with programmable period, width and number of cycles. This method causes the ROC to generate a test pulse sequence with a period of period * 4 ns, a pulse width of width * 4 ns, and number rising test pulse edges. If number if 0 the generator produces test pulses continuously up to the next fireTestPulse(uint32_t, int32_t, uint32_t) or fireTestPulse(uint32_t, uint32_t, int32_t uint32_t) call. To stop a continuous sequence simply call fireTestPulse(2,1,1).

Parameters:

	period	controls period, rising edges occur every period * 4 ns. If `period` is 0, a currently running test pulse train is aborted. In this case `width` and `number` are ignored and can be specified as 0.
	width	controls the pulse shape. If width > 0, the "H" time is width * 4 ns and the "L" time is period - width * 4 ns. If width < 0, the "L" time is width * 4 ns and the "H" time is period - width * 4 ns.
	number	controls number of generated pulses. Only the lower 15 LSB are used, maximal pulse train length is 32767 pulses. A 0 causes a continuous pulse train.

Returns:: see roc::Board get/put/oper return codes or -1 if the arguments are out-of-range.

Note:: The "L" time and the "H" time is limited to 4 * 2^24 = 67108864 ns. Usually width is quite small, so in practice the minimal frequency is about 14.9 Hz.

See also:: fireTestPulse(uint32_t delay, uint32_t period, int32_t width, uint32_t number)

Definition at line 135 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::operPPPP(), ROC_NX_TESTPULSE_LENGTH, ROC_NX_TESTPULSE_LENGTH2, ROC_NX_TESTPULSE_NUMBER, and ROC_NX_TESTPULSE_START.

int nxyter::RocNx::fireTestPulse	(	uint32_t	delay,
		uint32_t	period,
		int32_t	width,
		uint32_t	number
	)

Fire a test pulse sequence after next nXYTER/ROC timestamp reset.

The ROC test pulse generator can produce a pulse train with programmable period, width and number of cycles which start with a defined delay after a nXYTER/ROC timestamp reset. This allows to produce nXYTER hits with controlled timestamp and is used for calibrations of delay parameters.

This method will cause a nXYTER/ROC timestamp reset (with resetRocNxTs()) followed a test pulse train with a period of period * 4 ns, a pulse width of width * 4 ns, and number rising test pulse edges starting delay * 4 ns after the reset pulse to the nXYTER.

Parameters:

	delay	controls delay, first edge after delay * 4 ns after reset. Only the 16 LSB are used, the maximal delay is 4 * 65535 = 262140 ns.
	period	controls period, rising edges occur every period * 4 ns.
	width	controls the pulse shape. If width > 0, the "H" time is width * 4 ns and the "L" time is period - width * 4 ns. If width < 0, the "L" time is width * 4 ns and the "H" time is period - width * 4 ns.
	number	controls number of generated pulses. Only the lower 16 LSB are used, maximal pulse train length is 32767 pulses. A 0 causes a continuous pulse train.

Returns:: see roc::Board get/put/oper return codes or -1 if the arguments are out-of-range.

Note:: The "L" time and the "H" time is limited to 4 * 2^24 = 67108864 ns. Usually width is quite small, so in practice the minimal frequency is about 14.9 Hz.

See also:: fireTestPulse(uint32_t delay, uint32_t period, int32_t width)

Definition at line 199 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::operErrBuild(), base::Board::operPPPP(), resetRocNxTs(), ROC_NX_TESTPULSE_LENGTH, ROC_NX_TESTPULSE_LENGTH2, ROC_NX_TESTPULSE_NUMBER, and ROC_NX_TESTPULSE_RESET_DELAY.

Referenced by roc::BoardsVector::autoped_switch(), cmd_autoped(), cmd_autosettrh(), cmd_firepulser(), cmd_printdata(), cmd_testnxdata(), RocNxWidget::firePulse(), roc::BoardsVector::returnBoards(), roc::BoardsVector::setBoard(), and RocNxWidget::stopPulse().

base::Board* base::Peripheral::getBoard ( ) const [inline, inherited]

Returns pointer to the roc::Board which hosts the Peripheral.

Note: normally using board() is more convenient.

Definition at line 38 of file Peripheral.h.

References base::Peripheral::fBoard.

Referenced by nxyter::FebUtil::acquireTestTriggerData(), nxyter::NxChip::activate(), nxyter::FebBase::addNxChip(), nxyter::NxChip::deactivate(), nxyter::NxChip::isactive(), and nxyter::QuickDaq::QuickDaq().

int nxyter::RocNx::getDataDebug	(	std::vector< nxyter::DataDebug > &	datvec,
		int	nmsg
	)

Try to acquire nmsg messages from 'debug' port.

Uses the DAQ 'debug' port to read up to nmsg messages via ROC control space accesses. ROC must be in 'debug' mode. The method will append messages to data until either the maximal message count nmsg is reached or the 'wide FIFO' is empty.

Parameters:

	datvec	retrieved message are appended to the vector, the vector is not initially cleared by this method
	nmsg	maximal number of messages read

Returns:: number of message appended to data or -2 in case of get/put/operGen errors or -1 if ROC not in debug mode. A 0 is returned if the 'wide FIFO' is empty when getDataDebug() is called.

See also:: setDebugMode(), getRocFifoEmpty()

Definition at line 336 of file RocNx.cxx.

References base::Peripheral::board(), and base::Board::operGen().

Referenced by cmd_printdatadbg().

int nxyter::RocNx::getFifoEmpty ( uint32_t & val )

Retrieves FIFO empty state from ROC (1=fifo empty).

Definition at line 313 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::get(), and ROC_NX_FIFO_EMPTY.

int nxyter::RocNx::getFifoFull ( uint32_t & val )

Retrieves FIFO full state from ROC (1=fifo full).

Definition at line 305 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::get(), and ROC_NX_FIFO_FULL.

int nxyter::RocNx::getNxActive ( uint32_t & mask )

NX_getActivate.

Read status mask which nXYTERs is on/off

Definition at line 258 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::get(), and ROC_NX_NXACTIVE.

Referenced by nxyter::NxChip::activate(), nxyter::NxChip::deactivate(), nxyter::NxChip::isactive(), and nxyter::QuickDaq::startRun().

int nxyter::RocNx::resetRocNxTs ( )

Reset nXYTER (and ROC) timestamp system.

This method brings the timestamp system of all connected nXYTERs and the local timestamp counter of the ROC into a consistent state, counting up from almost zero.

Returns:: see roc::Board get/put/oper return codes

Definition at line 91 of file RocNx.cxx.

References base::OperList::addPut(), base::Peripheral::board(), base::Board::operGen(), and ROC_NX_TS_RESET.

Referenced by cmd_printdata(), cmd_printdatadbg(), cmd_resetrocnxts(), and fireTestPulse().

int nxyter::RocNx::setDebugMode ( uint32_t val )

Sets debug mode readout flag in ROC.

Parameters:

val

debug mode enable flag (1 is yes, 0 is no)

Returns:: see roc::Board get/put/oper return codes

Definition at line 297 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::put(), and ROC_NX_DEBUG_MODE.

Referenced by cmd_printdatadbg().

int nxyter::RocNx::setLTSDelay ( uint32_t val )

setRocLTSDelay

Sets the global LTS Delay. Please, only use this function, if know what you're doing!

Definition at line 270 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::put(), and ROC_NX_DELAY_LTS.

int nxyter::RocNx::setNxActive	(	int	nx0,
		int	nx1,
		int	nx2,
		int	nx3
	)

setNxActive

Actiavte/deactive nXYTERs, setting on/off for each nxyter

Definition at line 234 of file RocNx.cxx.

Referenced by nxyter::NxChip::activate(), nxyter::NxChip::deactivate(), and nxyter::QuickDaq::startRun().

int nxyter::RocNx::setNxActive ( uint32_t mask )

setRocNxActive

Actiavte/deactive nXYTERs, setting on/off for each nxyter

Definition at line 247 of file RocNx.cxx.

References base::Peripheral::board(), base::Board::put(), and ROC_NX_NXACTIVE.

int nxyter::RocNx::setParityCheck ( uint32_t val )

Sets nXYTER parity check flag.

Activates/Deactivates the nXYTER parity checking. If parity checking is activated, the broken nXYTER hit message is replaced by a nXYTER parity error system message.

Parameters:

val

Is parity checking on? (1 is yes, 0 is no)
