#include <OpticBoard.h>

Inheritance diagram for roc::OpticBoard:

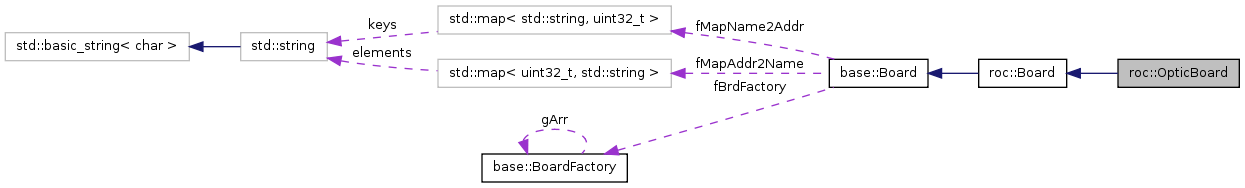

Collaboration diagram for roc::OpticBoard:

Public Types
enum	operErr { kOperSuccess = 0, kOperAddrErr = 2, kOperValueErr = 3, kOperStateErr = 4, kOperNetworkErr = 6, kHostError = 8, kOperVerifyErr = 20, kOperBusErr = 21 }
	Return codes for get, put and oper calls. More...
enum	addrErr { kAddrError = 0xffffffff }
Public Member Functions
virtual int	getTransportKind () const
	getTransportKind
uint32_t	getRocFpgaType ()
	Returns the FPGA type the firmeware was syntesized for.
uint32_t	getRocSvnRev ()
	Returns subversion revision number of the ROC firmware source code.
uint32_t	getRocBuildTime ()
	Returns the time the firmware was synthesized.
uint32_t	getRocHardwareVersion ()
	Returns hardware version of ROC (FPGA firmware version).
uint32_t	getRocHardwareType ()
	Returns hardware type (frontend/backend) of ROC (FPGA firmware kind).
uint32_t	getRocFrontendKind ()
	Return frontend kinds - kind_nXYTER (1), kind_oldFEET (2) or kind_FEET (3).
uint32_t	getRocBackendKind ()
	Return backend kinds - kind_Optic (1), kind_FX20 (2), kind_FX40 (3) or kind_FX60 (4).
virtual uint32_t	getRocBackendVersion ()
	Returns backend (Optic or UDP) version.
uint32_t	rocNumber () const
	Returns locally stored ROC number.
uint32_t	getRocNumber ()
	Returns number from ROC directly, store fRocNumber variable.
void	setRocNumber (uint32_t num)
int	uploadCommandsList (unsigned num, const base::OperList &lst, double tmout=0.)
	Add an commands list entry .
int	downloadCommandsList (unsigned num, base::OperList &lst, double tmout=0.)
	Download commands list from the ROC.
int	invokeCommandsList (unsigned num, double tmout=0.)
	Invoke command list.
int	uploadStartDaqCmdList (bool reset_frontend=false, bool reset_fifo=true)
	Produce and upload start daq commands list.
int	uploadStopDaqCmdList ()
	Produce and upload stop daq commands list.
virtual int	invokeDLM (unsigned num, double tmout=0.)
	invokeDLM - method generate DLM, which sends to every endnode
void	clearRocFifo ()
	Clears the FIFO in ROC (discard all old data).
void	restartRoc ()
	Full ROC restart (FPGA and PPC, if used).
virtual bool	restartBoard ()
	resetBoard - method should restart board. Return true if implemented. One should immediately close connection to board
int	getRocThrottleState (uint32_t &val)
	Returns the status of the throttle system.
virtual unsigned	GetBoardId () const
virtual int	setToDefault ()
	Activate DAQ.
virtual bool	enableCalibration (double period=10., double calibr=0.1, int cnt=-1)
	enableCalibration
virtual bool	disableCalibration ()
void	setDefaultTimeout (double tmout=2.)
	Set default get/put/oper timeout.
double	getDefaultTimeout () const
void	setVerbosity (int lvl=0)
int	getVerbosity () const
	Returns debug output verbosity level.
ClientRole	getRole () const
	Returns client role.
void	Debug (int lvl, const char *fmt,...)
	Print a formatted debug message.
void	setOperTrace (int lvl=1)
	Set get/put/operGen trace level.
int	getOperTrace () const
	Returns debug output verbosity level.
virtual int	operGen (OperList &lst, double tmout=0.)=0
	General operate, arbitrary list of get/put accesses to ROC control space.
virtual int	operGen (bool isput, uint32_t addr, uint32_t *value, int num, double tmout=0.)
int	put (uint32_t addr, uint32_t value, double tmout=0.)
int	get (uint32_t addr, uint32_t &value, double tmout=0.)
int	operPP (uint32_t addr0, uint32_t val0p, uint32_t addr1, uint32_t val1p, double tmout=0.)
	Put-Put accesses sequence to ROC control space.
int	operPG (uint32_t addr0, uint32_t val0p, uint32_t addr1, uint32_t &val1g, double tmout=0.)
	Put-Get accesses sequence to ROC control space.
int	operPPP (uint32_t addr0, uint32_t val0p, uint32_t addr1, uint32_t val1p, uint32_t addr2, uint32_t val2p, double tmout=0.)
	Put-Put-Put accesses sequence to ROC control space.
int	operGGG (uint32_t addr0, uint32_t &val0p, uint32_t addr1, uint32_t &val1p, uint32_t addr2, uint32_t &val2p, double tmout=0.)
	Get-Get-Get accesses sequence to ROC control space.
int	operPPPP (uint32_t addr0, uint32_t val0p, uint32_t addr1, uint32_t val1p, uint32_t addr2, uint32_t val2p, uint32_t addr3, uint32_t val3p, double tmout=0.)
	Put-Put-Put-Put accesses sequence to ROC control space.
uint32_t	findRegAddressByName (const char *name)
	Retrieve a ROC control space address by its symbolic name.
const char *	findRegNameByAddress (uint32_t addr)
	Retrieve symbolic name of a ROC control space address.
void	printRegAddressMap (std::ostream &os, bool byname=false)
void	addRegAddrMapping (const char *name, uint32_t addr)
	Add an entry to the ROC control space address mapping table.
void	fillRegAddrNames (std::list< std::string > &lst)
bool	isFile () const
	isFile
bool	isOptic () const
	isOptic - returns true when optic use for connection
bool	isUSB () const
	isUSB - returns true when optic use for connection
virtual bool	is_SPI_I2C () const
	is_SPI_I2C - return true if SPI interface should be used to access I2C bus
virtual uint32_t	getHardwareType ()
	Returns hardware type (frontend/backend) of ROC (FPGA firmware kind).
virtual uint32_t	getHardwareVersion ()
	Returns hardware version of ROC (FPGA firmware version).
virtual uint32_t	getFrontendKind ()
	Return frontend kinds - kind_nXYTER (1), kind_oldFEET (2) or kind_FEET (3).
virtual uint32_t	getBackendKind ()
	Return backend kinds - kind_Optic (1), kind_FX20 (2), kind_FX40 (3) or kind_FX60 (4).
uint32_t	boardNumber () const
	Returns locally stored board number.
uint32_t	getBoardNumber ()
	Request number from board.
void	setBoardNumber (uint32_t num)
	Change board number in device.
virtual bool	startDaq ()=0
	Activate DAQ.
virtual bool	suspendDaq ()=0
	suspendDaq
virtual bool	stopDaq ()=0
	stopDaq
virtual bool	getNextBuffer (void *&buf, unsigned &len, double tmout=1.)=0
	getNextBuffer
virtual int	getMsgFormat () const =0
	getMsgFormat
virtual void	setFlushTimeout (double tmout)
	Sets flush timeout of data transport.
Static Public Member Functions
static uint32_t	getRoclibVersion ()
	Returns software version of client software.
static bool	IsUdpAddress (const char *name)
	Check if specified address is address of the board, connected via UDP.
static bool	IsOpticAddress (const char *name)
	Check if specified address is address of board, connected via optic.
static bool	IsLmdFileAddress (const char *name)
	Check if specified address is lmd filename.
static Board *	Connect (const char *name, ClientRole role=roleDAQ)
static Board *	Connect (const char *url, ClientRole role=roleNone)
static bool	Close (Board *brd)
static bool	Close (Board *brd)
static int	operErrCode (int rc)
	Retrieve error code from get/put/oper return code.
static int	operErrIndex (int rc)
	Retrieve index from get/put/oper return code.
static int	operErrBuild (int code, int index)
	Build get/put/oper return code from error code and index value.
static int	operErrBuildInc (int rc, int inc)
	Add to index value of get/put/oper return code.
static std::string	operErrToString (int rc)
	Returns a string with a human readable form of a get/put/oper return code.
static const char *	operErrCodeName (int rc)
	Returns descriptive text for a get/put/oper error code.
static const char *	versionToString (uint32_t ver)
	Returns a string representation of a version number.
Protected Types
typedef std::map< std::string, uint32_t >	mapn2a_t
typedef std::map< uint32_t, std::string >	mapa2n_t
Protected Member Functions
	OpticBoard ()
virtual	~OpticBoard ()
void	traceOper (OperList &lst, int rc)
	Generate output for get/put/operGen traces.
void	setRole (ClientRole role)
uint32_t	initBoard (const char *name, uint32_t minversion)
	Checks and print board kind, version and id.
Protected Attributes
mapn2a_t	fMapName2Addr
mapa2n_t	fMapAddr2Name
BoardFactory *	fBrdFactory
	factory used to create board instance
double	fDefaultTimeout
	default timeout
int	fVerbosity
	Debug verbosity level.
int	fOperTrace
	Oper trace level.
ClientRole	fRole
	client role (access rights)
uint32_t	fBrdNumber
	number of connected ROC

Detailed Description

Definition at line 10 of file OpticBoard.h.

Member Typedef Documentation

typedef std::map<uint32_t,std::string> base::Board::mapa2n_t [protected, inherited]

Definition at line 65 of file Board.h.

typedef std::map<std::string,uint32_t> base::Board::mapn2a_t [protected, inherited]

Definition at line 64 of file Board.h.

Member Enumeration Documentation

enum base::Board::addrErr [inherited]

Enumerator:

kAddrError

Definition at line 106 of file Board.h.

enum base::Board::operErr [inherited]

Return codes for get, put and oper calls.

For a detailed documentation of get/put/oper return code see roc::Board get/put/oper return codes.

Enumerator:

kOperSuccess	success
kOperAddrErr	invalid address
kOperValueErr	value not allowed in context
kOperStateErr	operation not allowed in state
kOperNetworkErr	network communication error
kHostError	PC software stack errpr.
kOperVerifyErr	readback after write mismatch
kOperBusErr	secondary bus error

Definition at line 95 of file Board.h.

Constructor & Destructor Documentation

roc::OpticBoard::OpticBoard ( ) [protected]

Definition at line 3 of file OpticBoard.cxx.

roc::OpticBoard::~OpticBoard ( ) [protected, virtual]

Definition at line 8 of file OpticBoard.cxx.

Member Function Documentation

void base::Board::addRegAddrMapping	(	const char *	name,
		uint32_t	addr
	)			`[inherited]`

Add an entry to the ROC control space address mapping table.

This method is protected and used in the contructors to initialize the table.

See also:: findRegNameByAddress(), findRegAddressByName(), printRegAddressMap()

Definition at line 399 of file Board.cxx.

References base::Board::fMapAddr2Name, and base::Board::fMapName2Addr.

Referenced by roc::I2cDevice::addAddrMap(), nxyter::RocNx::addAddrMap(), nxyter::MainAdc::addAddrMap(), feet::RocFeet::addAddrMap(), base::Gpio::addAddrMap(), sp605::Board::Board(), roc::Board::Board(), and roc::UdpBoard::UdpBoard().

uint32_t base::Board::boardNumber ( ) const [inline, inherited]

Returns locally stored board number.

Definition at line 329 of file Board.h.

References base::Board::fBrdNumber.

Referenced by roc::AbbBoard::initAbbBoard(), roc::UdpDevice::initUdp(), roc::Iterator::Iterator(), roc::Iterator::nextBuffer(), and roc::Board::rocNumber().

void roc::Board::clearRocFifo ( ) [inherited]

Clears the FIFO in ROC (discard all old data).

Definition at line 391 of file Board.cxx.

References base::Board::operPP(), and ROC_NX_FIFO_RESET.

Referenced by cmd_printdatadbg().

bool base::Board::Close ( Board * brd ) [static, inherited]

Definition at line 493 of file Board.cxx.

References base::BoardFactory::DestroyBoard().

Referenced by main(), and roc::Iterator::~Iterator().

bool roc::Board::Close ( Board * brd ) [static, inherited]

Definition at line 346 of file Board.cxx.

Referenced by roc::Board::Connect(), and main().

base::Board * base::Board::Connect	(	const char *	url,
		ClientRole	role = `roleNone`
	)			`[static, inherited]`

Definition at line 488 of file Board.cxx.

References base::BoardFactory::CreateBoard().

Referenced by cmd_board(), and main().

roc::Board * roc::Board::Connect	(	const char *	name,
		roc::ClientRole	role = `roleDAQ`
	)			`[static, inherited]`

Definition at line 325 of file Board.cxx.

References roc::Board::Close().

Referenced by roc::Iterator::Iterator(), main(), and TRocSource::Open().

void base::Board::Debug	(	int	lvl,
		const char *	fmt,
			...
	)			`[inherited]`

Print a formatted debug message.

Show debug information, using functionality of factory

If the debug level lvl is less or equal to the verbosity level setup with setVerbosity() a message will be printed with ShowDebug(). The message text is defined by the printf style format fmt and variable length argument list.

Parameters:

	lvl	debug level
	fmt	format a la `printf`

Example:

    Debug(-1, "Error reading Register %d on bus %d", reg, num);

Definition at line 64 of file Board.cxx.

References base::Board::fBrdFactory, base::Board::getVerbosity(), and base::BoardFactory::ShowDebug().

Referenced by roc::UdpBoard::calcBinXOR(), roc::Board::downloadCommandsList(), base::Board::initBoard(), roc::UdpBoard::loadConfig(), roc::UdpBoard::parseBitfileHeader(), roc::UdpBoard::saveConfig(), nxyter::MainAdc::setClockDelay(), nxyter::NxChip::setNxNumber(), roc::UdpBoard::setRocLowHighWater(), nxyter::QuickDaq::startRun(), base::Board::traceOper(), roc::UdpBoard::uploadBitfile(), roc::Board::uploadCommandsList(), roc::UdpBoard::uploadDataToRoc(), and roc::UdpBoard::uploadSDfile().

virtual bool roc::Board::disableCalibration ( ) [inline, virtual, inherited]

Definition at line 199 of file Board.h.

References roc::Board::enableCalibration().

Referenced by roc::UdpDevice::CloseAsBoard().

int roc::Board::downloadCommandsList	(	unsigned	num,
		base::OperList &	lst,
		double	tmout = `0.`
	)			`[inherited]`

Download commands list from the ROC.

Method reads specified commands list from the board.

Definition at line 190 of file Board.cxx.

References base::OperList::addGet(), base::OperList::addPut(), base::OperList::clear(), base::Board::Debug(), base::OperList::number(), base::OperList::oper(), base::Board::operGen(), ROC_CMD_LST_ACTIVE, ROC_CMD_LST_MEM, ROC_CMD_LST_NUMBER, ROC_CMD_LST_PUT, and ROC_CMD_LST_SIZE.

Referenced by RocMainWidget::getCmdList().

virtual bool roc::Board::enableCalibration	(	double	period = `10.`,
		double	calibr = `0.1`,
		int	cnt = `-1`
	)			`[inline, virtual, inherited]`

enableCalibration

Preliminary functionality for nXYTER calibration Reconfigures nXYTER in test-trigger mode and fires several test pulses

Parameters:

period

can has following values: 0 - make calibration once >0 - perform calibration periodically <0 - disable calibration

Reimplemented in roc::UdpDevice.

Definition at line 197 of file Board.h.

Referenced by roc::Board::disableCalibration().

void base::Board::fillRegAddrNames ( std::list< std::string > & lst ) [inherited]

Definition at line 465 of file Board.cxx.

References base::Board::fMapName2Addr.

Referenced by BoardWidget::BoardWidget().

uint32_t base::Board::findRegAddressByName ( const char * name ) [inherited]

Retrieve a ROC control space address by its symbolic name.

Methods about map of registers addresses and their symbolic names

Locates in the ROC control space address mapping table the entry for the name name and returns the associated address in addr.

Parameters:

	name	name to be looked up
	addr	address to be returned

Returns:: found address value or kAddrError if address not found

See also:: findRegNameByAddress(), addRegAddrMapping(), printRegAddressMap()

Definition at line 417 of file Board.cxx.

References base::Board::fMapName2Addr, and base::Board::kAddrError.

Referenced by cmd_getroc(), cmd_putroc(), BoardWidget::getRegister(), and BoardWidget::putRegister().

const char * base::Board::findRegNameByAddress ( uint32_t addr ) [inherited]

Retrieve symbolic name of a ROC control space address.

Locates in the Board control space address mapping table the entry for the address addr and returns the associated symbolic name in name.

Parameters:

addr

address to be looked up

Returns:: symbolic name of the register, 0 when not found

See also:: findRegAddressByName(), addRegAddrMapping(), printRegAddressMap()

Definition at line 436 of file Board.cxx.

References base::Board::fMapAddr2Name, and base::Board::kAddrError.

Referenced by cmd_printroc(), RocMainWidget::getCmdList(), and base::Board::traceOper().

int base::Board::get	(	uint32_t	addr,
		uint32_t &	value,
		double	tmout = `0.`
	)			`[inherited]`

Definition at line 161 of file Board.cxx.

References base::Board::operGen().

Referenced by cmd_board(), cmd_getroc(), cmd_printid(), cmd_printroc(), nxyter::MainAdc::getAdcDirect(), nxyter::NxChip::getChannelDelay(), nxyter::MainAdc::getChannelLatency(), nxyter::MainAdc::getClockDelayBufg(), nxyter::MainAdc::getClockDelaySrInit(), base::Gpio::getConfig(), nxyter::RocNx::getFifoEmpty(), nxyter::RocNx::getFifoFull(), nxyter::RocNx::getNxActive(), BoardWidget::getRegister(), RocMainWidget::getSubConfig(), and base::Gpio::getSyncScale().

virtual uint32_t base::Board::getBackendKind ( ) [inline, virtual, inherited]

Return backend kinds - kind_Optic (1), kind_FX20 (2), kind_FX40 (3) or kind_FX60 (4).

Definition at line 325 of file Board.h.

References base::Board::getHardwareType().

virtual unsigned roc::Board::GetBoardId ( ) const [inline, virtual, inherited]

Method returns board id

Reimplemented from base::Board.

Definition at line 119 of file Board.h.

References roc::Board::rocNumber().

uint32_t base::Board::getBoardNumber ( ) [inherited]

Request number from board.

Returns board number as stored in ROC.

Definition at line 568 of file Board.cxx.

References base::addr_BoardId, and base::Board::fBrdNumber.

Referenced by roc::Board::getRocNumber().

double base::Board::getDefaultTimeout ( ) const [inline, inherited]

Returns default get/put/oper timeout.

See also:: setDefaultTimeout()

Definition at line 120 of file Board.h.

References base::Board::fDefaultTimeout.

Referenced by sp605::OpticBoard::invokeDLM(), roc::AbbBoard::invokeDLM(), roc::UdpDevice::operGen(), sp605::OpticBoard::operGen(), roc::AbbBoard::operGen(), and roc::UdpDevice::rawPut().

virtual uint32_t base::Board::getFrontendKind ( ) [inline, virtual, inherited]

Return frontend kinds - kind_nXYTER (1), kind_oldFEET (2) or kind_FEET (3).

Definition at line 322 of file Board.h.

References base::Board::getHardwareType().

Referenced by cmd_board(), sp605::OpticBoard::initAbbBoard(), and main().

uint32_t base::Board::getHardwareType ( ) [virtual, inherited]

Returns hardware type (frontend/backend) of ROC (FPGA firmware kind).

Returns kind of fornend (higher 16 bit) and backend (lower 16 bit)

Definition at line 512 of file Board.cxx.

Referenced by base::Board::getBackendKind(), and base::Board::getFrontendKind().

uint32_t base::Board::getHardwareVersion ( ) [virtual, inherited]

Returns hardware version of ROC (FPGA firmware version).

Returns hardware version

Definition at line 502 of file Board.cxx.

Referenced by main().

virtual int base::Board::getMsgFormat ( ) const [pure virtual, inherited]

getMsgFormat

Returns message format like roc::formatEth2, roc::formatOptic2 and so on Base on message format appropriate iterator must be used to access messages from raw buffers

Implemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Referenced by roc::ReadoutApplication::CreateRocCombiner(), roc::Iterator::Iterator(), sp605::Iterator::nextBuffer(), roc::Iterator::nextBuffer(), and TRocSource::Open().

virtual bool base::Board::getNextBuffer	(	void *&	buf,
		unsigned &	len,
		double	tmout = `1.`
	)			`[pure virtual, inherited]`

getNextBuffer

Returns pointer on the buffer which contains received messages.

Parameters:

len

returns length of buffer in bytes. Buffer is allocated by board itself, buffer content remains valid until next call of getNextBuffer() or when daq is stopped. Format of messages can be defined by getMsgFormat() To extract single messages from the buffer, roc::Iterator class should be used

See also:: roc::Iterator getMsgFormat()

Implemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Referenced by TRocSource::BuildEvent(), sp605::Iterator::nextBuffer(), and roc::Iterator::nextBuffer().

int base::Board::getOperTrace ( ) const [inline, inherited]

Returns debug output verbosity level.

See also:: setOperTrace()

Definition at line 169 of file Board.h.

References base::Board::fOperTrace.

uint32_t roc::Board::getRocBackendKind ( ) [inline, inherited]

Return backend kinds - kind_Optic (1), kind_FX20 (2), kind_FX40 (3) or kind_FX60 (4).

Definition at line 86 of file Board.h.

References roc::Board::getRocHardwareType().

Referenced by RocMainWidget::getSubConfig().

virtual uint32_t roc::Board::getRocBackendVersion ( ) [inline, virtual, inherited]

Returns backend (Optic or UDP) version.

Reimplemented in roc::AbbBoard, and roc::UdpBoard.

Definition at line 89 of file Board.h.

Referenced by RocMainWidget::getSubConfig().

uint32_t roc::Board::getRocBuildTime ( ) [inherited]

Returns the time the firmware was synthesized.

The time is given in numbers of seconds since 1970-01-01 0:00 .

Definition at line 124 of file Board.cxx.

Referenced by RocMainWidget::getSubConfig().

uint32_t roc::Board::getRocFpgaType ( ) [inherited]

Returns the FPGA type the firmeware was syntesized for.

Definition at line 101 of file Board.cxx.

Referenced by RocMainWidget::getSubConfig().

uint32_t roc::Board::getRocFrontendKind ( ) [inline, inherited]

Return frontend kinds - kind_nXYTER (1), kind_oldFEET (2) or kind_FEET (3).

Definition at line 83 of file Board.h.

References roc::Board::getRocHardwareType().

Referenced by cmd_printroc(), RocMainWidget::getSubConfig(), and roc::Board::uploadStartDaqCmdList().

uint32_t roc::Board::getRocHardwareType ( ) [inherited]

Returns hardware type (frontend/backend) of ROC (FPGA firmware kind).

Frontend: 1 - NX 2 - FEET Backend: 1 - Optics 2 - Ethernet FX20 3 - Ethernet FX40

Definition at line 381 of file Board.cxx.

Referenced by roc::Board::getRocBackendKind(), and roc::Board::getRocFrontendKind().

uint32_t roc::Board::getRocHardwareVersion ( ) [inherited]

Returns hardware version of ROC (FPGA firmware version).

Definition at line 362 of file Board.cxx.

Referenced by RocMainWidget::getSubConfig().

uint32_t roc::Board::getRoclibVersion ( ) [static, inherited]

Returns software version of client software.

Definition at line 354 of file Board.cxx.

Referenced by RocMainWidget::getSubConfig().

uint32_t roc::Board::getRocNumber ( ) [inline, inherited]

Returns number from ROC directly, store fRocNumber variable.

Definition at line 96 of file Board.h.

References base::Board::getBoardNumber().

Referenced by RocMainWidget::getSubConfig().

uint32_t roc::Board::getRocSvnRev ( ) [inherited]

Returns subversion revision number of the ROC firmware source code.

Definition at line 111 of file Board.cxx.

Referenced by RocMainWidget::getSubConfig().

int roc::Board::getRocThrottleState ( uint32_t & val ) [inherited]

Returns the status of the throttle system.

Parameters:

val

bit mask with throttle system state

bit 0 set indicates that throttling is active, thus data is currently been discarded.
bit 1 set indicates that the throttle request flip-flop is set and that a throttle request is emitted from GPIO pin 0.

Returns:: see roc::Board get/put/oper return codes

Definition at line 429 of file Board.cxx.

ClientRole base::Board::getRole ( ) const [inline, inherited]

Returns client role.

Definition at line 128 of file Board.h.

References base::Board::fRole.

Referenced by cmd_board(), cmd_feb(), roc::UdpDevice::ExecuteCommand(), roc::UdpDevice::InitAsBoard(), roc::UdpDevice::initUdp(), and roc::UdpDevice::~UdpDevice().

virtual int roc::OpticBoard::getTransportKind ( ) const [inline, virtual]

getTransportKind

Returns kind of transport - base::kind_UDP, base::kind_ABB or base::kind_File

Implements base::Board.

Definition at line 19 of file OpticBoard.h.

int base::Board::getVerbosity ( ) const [inline, inherited]

Returns debug output verbosity level.

See also:: setVerbosity(), Debug()

Definition at line 125 of file Board.h.

References base::Board::fVerbosity.

Referenced by base::Board::Debug().

uint32_t base::Board::initBoard	(	const char *	name,
		uint32_t	minversion
	)			`[protected, inherited]`

Checks and print board kind, version and id.

Definition at line 523 of file Board.cxx.

References base::OperList::addGet(), base::addr_BoardId, base::addr_HardwareType, base::addr_HardwareVersion, base::Board::Debug(), base::Board::fBrdNumber, base::kind_FEET, base::kind_FX20, base::kind_FX40, base::kind_FX60, base::kind_newNX, base::kind_newOptic, base::kind_nXYTER, base::kind_oldFEET, base::kind_Optic, base::kind_SPADIC, base::OperList::oper(), base::Board::operGen(), base::Oper::value, and base::Board::versionToString().

Referenced by sp605::OpticBoard::initAbbBoard(), roc::AbbBoard::initAbbBoard(), and roc::UdpDevice::initUdp().

int roc::Board::invokeCommandsList	(	unsigned	num,
		double	tmout = `0.`
	)			`[inherited]`

Invoke command list.

Invokes specified commands list and returns immediately. Means, commands list may still be executed when new operation is submitted

Definition at line 318 of file Board.cxx.

References base::Board::put(), and ROC_CMD_LST_NR.

virtual int roc::Board::invokeDLM	(	unsigned	num,
		double	tmout = `0.`
	)			`[inline, virtual, inherited]`

invokeDLM - method generate DLM, which sends to every endnode

Reimplemented from base::Board.

Reimplemented in roc::AbbBoard, and roc::UdpBoard.

Definition at line 109 of file Board.h.

Referenced by cmd_dlm(), and OpticWidget::setSendDLM_A2R().

virtual bool base::Board::is_SPI_I2C ( ) const [inline, virtual, inherited]

is_SPI_I2C - return true if SPI interface should be used to access I2C bus

Reimplemented in sp605::Board.

Definition at line 308 of file Board.h.

Referenced by roc::I2cDevice::addAddrMap(), nxyter::MainAdc::addAddrMap(), roc::I2cDevice::I2cDevice(), and nxyter::MainAdc::MainAdc().

bool base::Board::isFile ( ) const [inline, inherited]

isFile

Returns true if board is just envelope around file reading - most operation like put/get are nit working and should not be tried

Definition at line 296 of file Board.h.

References base::Board::getTransportKind().

Referenced by cmd_board(), cmd_printdata(), roc::Iterator::isFile(), nxyter::QuickDaq::startRun(), and nxyter::QuickDaq::testRun().

bool roc::Board::IsLmdFileAddress ( const char * name ) [static, inherited]

Check if specified address is lmd filename.

First checks that it has protocol file:// or has .lmd extension

Definition at line 476 of file Board.cxx.

References base::Url::GetFullName(), base::Url::GetProtocol(), and base::Url::IsValid().

Referenced by roc::Factory::DoConnect(), and roc::Factory::IsFactoryFor().

bool base::Board::isOptic ( ) const [inline, inherited]

isOptic - returns true when optic use for connection

Definition at line 299 of file Board.h.

References base::Board::getTransportKind().

bool roc::Board::IsOpticAddress ( const char * name ) [static, inherited]

Check if specified address is address of board, connected via optic.

First checks that it has prefix optic://, second that name starts from abb

Definition at line 460 of file Board.cxx.

References base::Url::GetHostName(), and base::Url::GetProtocol().

Referenced by roc::ReadoutApplication::CreateAppModules(), roc::ReadoutApplication::CreateRocCombiner(), roc::AbbFactory::DoConnect(), roc::AbbFactory::IsFactoryFor(), roc::ReadoutApplication::NumOpticRocs(), and roc::ReadoutApplication::NumUdpRocs().

bool roc::Board::IsUdpAddress ( const char * name ) [static, inherited]

Check if specified address is address of the board, connected via UDP.

First checks that it has udp protocol If not, than check if it is not starts with abb File should be checked before

Definition at line 441 of file Board.cxx.

References base::Url::GetHostName(), base::Url::GetProtocol(), and base::Url::IsValid().

Referenced by roc::Factory::DoConnect(), and roc::Factory::IsFactoryFor().

bool base::Board::isUSB ( ) const [inline, inherited]

isUSB - returns true when optic use for connection

Definition at line 302 of file Board.h.

References base::Board::getTransportKind().

static int base::Board::operErrBuild	(	int	code,
		int	index
	)			`[inline, static, inherited]`

Build get/put/oper return code from error code and index value.

Build a return code for a board access method from an error code code, in general one of the values specified in the board::operErr enum, and an index value index.

Parameters:

	code	error code. Only the lower 8 bits are used, to one can use a full return code, the index part will be discarded.
	index	index or stage number at the point of failure

See also:: roc::Board get/put/oper return codes.; operErrBuildInc()

Definition at line 258 of file Board.h.

Referenced by roc::UdpControlSocket::completeLoop(), roc::AbbDevice::ExecuteCommand(), nxyter::RocNx::fireTestPulse(), roc::I2cDevice::getMailboxRegister(), roc::I2cDevice::getRegister(), nxyter::MainAdc::getRegister(), roc::I2cDevice::getRegisterArray(), nxyter::NxI2c::getRegTrim(), base::Board::operErrBuildInc(), nxyter::NxI2c::probe(), nxyter::MainAdc::probe(), nxyter::MainAdc::setClockDelay(), nxyter::NxI2c::setContext(), roc::I2cDevice::setMailboxRegister(), nxyter::FebBase::setNxRegisterAll(), nxyter::FebBase::setNxTestModes(), roc::I2cDevice::setRegister(), nxyter::MainAdc::setRegister(), roc::I2cDevice::setRegisterArray(), roc::I2cDevice::setRegisterVerify(), nxyter::NxI2c::setRegTrim(), nxyter::MainAdc::setTestMode(), nxyter::NxI2c::setTestModes(), nxyter::RocNx::setToDefault(), nxyter::MainAdc::setToDefault(), nxyter::FebBase::setToDefault(), and nxyter::MainAdc::setUserPattern().

static int base::Board::operErrBuildInc	(	int	rc,
		int	inc
	)			`[inline, static, inherited]`

Add to index value of get/put/oper return code.

Parameters:

	rc	return code from board access method
	inc	value to be added to the index field

Returns:: the return code rc with the index incremented by inc

See also:: roc::Board get/put/oper return codes.; operErrBuild()

Definition at line 269 of file Board.h.

References base::Board::operErrBuild(), and base::Board::operErrIndex().

Referenced by nxyter::NxChip::activate(), nxyter::NxChip::deactivate(), nxyter::NxI2c::getContext(), nxyter::NxI2c::getRegCore(), nxyter::FebBase::initRoc(), base::Gpio::setConfig(), nxyter::NxI2c::setContext(), nxyter::QuickDaq::setNxRegisterAll(), nxyter::QuickDaq::setNxTestModes(), nxyter::NxI2c::setRegCore(), and nxyter::NxI2c::setRegTrim().

static int base::Board::operErrCode ( int rc ) [inline, static, inherited]

Retrieve error code from get/put/oper return code.

Extracts the error code, in general one of the values specified in the board::operErr enum, from a return code rc of a board access method.

See also:: roc::Board get/put/oper return codes.

Definition at line 234 of file Board.h.

Referenced by base::Board::operErrCodeName(), base::Board::operErrToString(), and nxyter::FebUtil::probe().

const char * base::Board::operErrCodeName ( int rc ) [static, inherited]

Returns descriptive text for a get/put/oper error code.

Parameters:

rc

return code, the index part will be ignored

Returns:: pointer to statically allocated string with descriptive text

Definition at line 343 of file Board.cxx.

References base::Board::kOperAddrErr, base::Board::kOperBusErr, base::Board::kOperNetworkErr, base::Board::kOperStateErr, base::Board::kOperSuccess, base::Board::kOperValueErr, base::Board::kOperVerifyErr, and base::Board::operErrCode().

Referenced by base::Board::operErrToString(), and nxyter::FebUtil::probe().

static int base::Board::operErrIndex ( int rc ) [inline, static, inherited]

Retrieve index from get/put/oper return code.

Extracts the index value from a return code rc of a board access. method. The index allows to reconstruct at which point of an access sequence the error occurred.

See also:: roc::Board get/put/oper return codes.

Definition at line 244 of file Board.h.

Referenced by base::Board::operErrBuildInc(), base::Board::operErrToString(), and nxyter::FebUtil::probe().

std::string base::Board::operErrToString ( int rc ) [static, inherited]

Returns a string with a human readable form of a get/put/oper return code.

Return codes of many roc or device handling methods return either a negative number to indicate an illegal argument combination or state or a positive number to indicate a control space access errors (see roc::Board get/put/oper return codes). This method converts the return code into a human readable form. For negative values it simply returns "rc = nnn", while for positive values it extracts the index and error code part of the return code rc and returns a string of the form

rc =    7,20 -> readback verify error
        |  |    |
        |  |    string representation of error code
        |  error code
        index part

Definition at line 376 of file Board.cxx.

References base::Board::operErrCode(), base::Board::operErrCodeName(), and base::Board::operErrIndex().

Referenced by cmd_geti2c(), cmd_printroc(), cmd_printstatus(), cmd_puti2c(), cmd_seti2c(), print_opererr(), nxyter::NxI2c::printRegisters(), nxyter::FebUtil::testFebControlPathCombo(), nxyter::FebUtil::testMainAdcControlPath(), nxyter::FebUtil::testMainAdcDataPath(), nxyter::FebUtil::testNxControlPath(), nxyter::FebUtil::testNxRegisters(), and base::Board::traceOper().

int base::Board::operGen	(	bool *	isput,
		uint32_t *	addr,
		uint32_t *	value,
		int	num,
		double	tmout = `0.`
	)			`[virtual, inherited]`

Method need to be virtual to satisfy compiler rules

Definition at line 137 of file Board.cxx.

References base::OperList::oper(), base::Board::operGen(), and base::Oper::value.

virtual int base::Board::operGen	(	OperList &	lst,
		double	tmout = `0.`
	)			`[pure virtual, inherited]`

General operate, arbitrary list of get/put accesses to ROC control space.

This function allow to execute a list of gets and puts from and to the ROC control address space. It is guaranteed that the execution is an atomic action, no control space access from other sources will be handled concurrently.

Parameters:

	isput	array of flags, if `true` a put is done, otherwise a get.
	addr	array of ROC control space addresses
	value	array of data values. If the corresponding entry in isput is true the array element is read and written into the ROC address, otherwise the array element is written by data retrieved from the ROC address.
	num	number of operates to do, size of arrays isput, addr, and value
	tmout	maximal network response time

Returns:: see roc::Board get/put/oper return codes

See also:: operPG(), operPP(), operPPP(), operPPPP()

Implemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Referenced by roc::Board::downloadCommandsList(), base::Board::get(), DataWidget::getData(), nxyter::RocNx::getDataDebug(), OpticWidget::getDLMHistory(), roc::I2cDevice::getRegister(), nxyter::MainAdc::getRegister(), roc::I2cDevice::getRegister16(), RocNxWidget::getSubConfig(), RocFeetWidget::getSubConfig(), OpticWidget::getSubConfig(), base::Board::initBoard(), base::Board::operGen(), base::Board::operGGG(), base::Board::operPG(), base::Board::operPP(), base::Board::operPPP(), base::Board::operPPPP(), base::Board::put(), nxyter::RocNx::resetRocNxTs(), roc::I2cDevice::setRegister(), nxyter::MainAdc::setRegister(), roc::I2cDevice::setRegisterVerify(), RocNxWidget::setSubConfig(), RocFeetWidget::setSubConfig(), roc::NxCalibrModule::switchCalibration(), and roc::Board::uploadCommandsList().

int base::Board::operGGG	(	uint32_t	addr0,
		uint32_t &	val0p,
		uint32_t	addr1,
		uint32_t &	val1p,
		uint32_t	addr2,
		uint32_t &	val2p,
		double	tmout = `0.`
	)			`[inherited]`

Get-Get-Get accesses sequence to ROC control space.

This is a specialization of operGen(), check the documentation of this method for details.

Parameters:

	addr0	address for 1st get
	val0p	value to write in 1st get
	addr1	address for 2nd get
	val1p	value to write in 2nd get
	addr2	address for 3rd get
	val2p	value to write in 3rd get
	tmout	maximal network response time

Returns:: see roc::Board get/put/oper return codes

Definition at line 277 of file Board.cxx.

References base::Board::operGen().

Referenced by base::Gpio::getSyncBaud().

int base::Board::operPG	(	uint32_t	addr0,
		uint32_t	val0p,
		uint32_t	addr1,
		uint32_t &	val1g,
		double	tmout = `0.`
	)			`[inherited]`

Put-Get accesses sequence to ROC control space.

This is a specialization of operGen(), check the documentation of this method for details.

Parameters:

	addr0	address for 1st put
	val0p	value to write in 1st put
	addr1	address for 1st get
	val1g	value returned in 1st get
	tmout	maximal network response time

Returns:: see roc::Board get/put/oper return codes

Definition at line 212 of file Board.cxx.

References base::Board::operGen().

Referenced by nxyter::MainAdc::getRegister().

int base::Board::operPP	(	uint32_t	addr0,
		uint32_t	val0p,
		uint32_t	addr1,
		uint32_t	val1p,
		double	tmout = `0.`
	)			`[inherited]`

Put-Put accesses sequence to ROC control space.

This is a specialization of operGen(), check the documentation of this method for details.

Parameters:

	addr0	address for 1st put
	val0p	value to write in 1st put
	addr1	address for 2nd put
	val1p	value to write in 2nd put
	tmout	maximal network response time

Returns:: see roc::Board get/put/oper return codes

Definition at line 183 of file Board.cxx.

References base::Board::operGen().

Referenced by roc::Board::clearRocFifo(), and RocFeetWidget::resetFifo().

int base::Board::operPPP	(	uint32_t	addr0,
		uint32_t	val0p,
		uint32_t	addr1,
		uint32_t	val1p,
		uint32_t	addr2,
		uint32_t	val2p,
		double	tmout = `0.`
	)			`[inherited]`

Put-Put-Put accesses sequence to ROC control space.

This is a specialization of operGen(), check the documentation of this method for details.

Parameters:

	addr0	address for 1st put
	val0p	value to write in 1st put
	addr1	address for 2nd put
	val1p	value to write in 2nd put
	addr2	address for 3rd put
	val2p	value to write in 3rd put
	tmout	maximal network response time

Returns:: see roc::Board get/put/oper return codes

Definition at line 244 of file Board.cxx.

References base::Board::operGen().

Referenced by autoped_issue_system_message(), nxyter::FebBase::resetNxI2cBus(), nxyter::FebBase::resetNxI2cRegister(), and base::Gpio::setSyncBaud().

int base::Board::operPPPP	(	uint32_t	addr0,
		uint32_t	val0p,
		uint32_t	addr1,
		uint32_t	val1p,
		uint32_t	addr2,
		uint32_t	val2p,
		uint32_t	addr3,
		uint32_t	val3p,
		double	tmout = `0.`
	)			`[inherited]`

Put-Put-Put-Put accesses sequence to ROC control space.

This is a specialization of operGen(), check the documentation of this method for details.

Parameters:

	addr0	address for 1st put
	val0p	value to write in 1st put
	addr1	address for 2nd put
	val1p	value to write in 2nd put
	addr2	address for 3rd put
	val2p	value to write in 3rd put
	addr3	address for 4th put
	val3p	value to write in 4th put
	tmout	maximal network response time

Returns:: see roc::Board get/put/oper return codes

Definition at line 317 of file Board.cxx.

References base::Board::operGen().

Referenced by nxyter::RocNx::fireTestPulse().

void base::Board::printRegAddressMap	(	std::ostream &	os,
		bool	byname = `false`
	)			`[inherited]`

Definition at line 447 of file Board.cxx.

References base::Board::fMapAddr2Name, and base::Board::fMapName2Addr.

Referenced by cmd_printrocmap().

int base::Board::put	(	uint32_t	addr,
		uint32_t	value,
		double	tmout = `0.`
	)			`[inherited]`

Definition at line 154 of file Board.cxx.

References base::Board::operGen().

Referenced by roc::BoardsVector::autoped_issue_system_message(), roc::UdpBoard::BURST(), cmd_putroc(), RocNxWidget::delayChanged(), RocFeetWidget::enableDatagen(), RocFeetWidget::initFeet(), nxyter::FebBase::initRoc(), roc::UdpDevice::initUdp(), roc::Board::invokeCommandsList(), roc::UdpBoard::invokeDLM(), RocNxWidget::latencyChanged(), RocNxWidget::parityChanged(), BoardWidget::putRegister(), RocFeetWidget::resetFrontend(), roc::Board::restartRoc(), RocFeetWidget::sendCmdToFeet(), base::Board::setBoardNumber(), nxyter::NxChip::setChannelDelay(), nxyter::MainAdc::setChannelLatency(), nxyter::MainAdc::setChannelMux(), nxyter::MainAdc::setClockDelayBufg(), nxyter::MainAdc::setClockDelaySrInit(), base::Gpio::setConfig(), roc::UdpBoard::setConsoleOutput(), OpticWidget::setDataGen(), nxyter::RocNx::setDebugMode(), RocFeetWidget::setEpoch250En(), nxyter::RocNx::setLTSDelay(), nxyter::RocNx::setNxActive(), nxyter::RocNx::setParityCheck(), roc::UdpBoard::setRocBufferFlushTimer(), roc::UdpBoard::setRocLowHighWater(), OpticWidget::setSendDLM_R2A(), OpticWidget::setStartDAQ(), OpticWidget::setStopDAQ(), base::Gpio::setSyncScale(), nxyter::RocNx::setToDefault(), roc::UdpBoard::switchToConsole(), and roc::UdpBoard::uploadDataToRoc().

virtual bool roc::Board::restartBoard ( ) [inline, virtual, inherited]

resetBoard - method should restart board. Return true if implemented. One should immediately close connection to board

Reimplemented from base::Board.

Definition at line 114 of file Board.h.

References roc::Board::restartRoc().

void roc::Board::restartRoc ( ) [inherited]

Full ROC restart (FPGA and PPC, if used).

This methods sends a message to the ROC which causes a full reset of the ROC board, the FPGA is reconfigured, and if used, the PPC is rebooted. Due to this hard reset the connection between the Board object and the ROC will abort, the Board object will essentially be a zombie after restartRoc() is called.

This method can come in handy when the ROC is in an inaccessible place and partially hung.

Postcondition:: ROC restarting, Board object defunct.

Definition at line 412 of file Board.cxx.

References base::Board::put(), and ROC_SYSTEM_RESET.

Referenced by main(), and roc::Board::restartBoard().

uint32_t roc::Board::rocNumber ( ) const [inline, inherited]

Returns locally stored ROC number.

Definition at line 93 of file Board.h.

References base::Board::boardNumber().

Referenced by roc::UdpDataSocket::AddDataPacket(), roc::ReadoutApplication::CreateRocCombiner(), roc::Board::GetBoardId(), roc::UdpDataSocket::GetParameter(), roc::Iterator::Iterator(), and TRocSource::Open().

void base::Board::setBoardNumber ( uint32_t num ) [inherited]

Change board number in device.

Updates board number in device memory.

Definition at line 580 of file Board.cxx.

References base::addr_BoardId, and base::Board::put().

Referenced by roc::Board::setRocNumber().

void base::Board::setDefaultTimeout ( double tmout = 2. ) [inline, inherited]

Set default get/put/oper timeout.

The value set with this method is used whenever no explicit timeout is specified in a get(), put() or openGen() call.

Parameters:

tmout

network communication timeout in sec.

See also:: getDefaultTimeout()

Definition at line 117 of file Board.h.

References base::Board::fDefaultTimeout.

virtual void base::Board::setFlushTimeout ( double tmout ) [inline, virtual, inherited]

Sets flush timeout of data transport.

Local transport accumulates data in buffer and until buffer is not filled, data is not delivered further. Flush timeout defines time interval, when any amount of data will be flushed.

Parameters:

tmout

timeout value in sec.

Reimplemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Definition at line 400 of file Board.h.

Referenced by TRocSource::Open(), and nxyter::QuickDaq::startRun().

void base::Board::setOperTrace ( int lvl = 1 ) [inline, inherited]

Set get/put/operGen trace level.

Controls whether the full context of get(), put() and operGen() requests is printed to stdout. The lvl determines whether all, none or only failed requests are traced:

0 no trace at all
1 trace if network error (default setting)
2 trace if any error
3 trace all

The output format is like (-> indicates get, <- indicates put):

get   (3,0x00000580 ROC_GPIO_CONFIG            ) -> 0x00000000          0 ok
put   (3,0x00000580 ROC_GPIO_CONFIG            ) <- 0x00000100        256 ok
op[00](3,0x00000514 ROC_SYNC2_BAUD_START       ) <- 0x00000002          2
op[01](3,0x00000518 ROC_SYNC2_BAUD1            ) <- 0x00000004          4
op[02](3,0x0000051c ROC_SYNC2_BAUD2            ) <- 0x00000004          4 ok
put   (3,0x00000500 ROC_SYNC1_M_SCALEDOWN      ) <- 0x00000004          4 ok
op[00](3,0x00000504 ROC_SYNC1_BAUD_START       ) <- 0x00000002          2
op[01](3,0x00000508 ROC_SYNC1_BAUD1            ) <- 0x00000004          4
op[02](3,0x0000050c ROC_SYNC1_BAUD2            ) <- 0x00000004          4 ok
op[00](3,0x00000054 ROC_TESTPULSE_LENGTH       ) <- 0x0000c34f      49999
op[01](3,0x00000058 ROC_TESTPULSE_NUMBER       ) <- 0x00000000          0
op[02](3,0x0000005c ROC_TESTPULSE_START        ) <- 0x00000001          1 ok
op[00](3,0x00010100 ROC_I2C1_SWITCH            ) <- 0x00000000          0
op[01](3,0x0001000c ROC_I2C1_SLAVEADDR         ) <- 0x00000008          8
op[02](3,0x00010010 ROC_I2C1_REGISTER          ) <- 0x00000015         21
op[03](3,0x00010000 ROC_I2C1_DATA              ) -> 0x0000000f         15
op[04](3,0x00010020 ROC_I2C1_ERROR             ) -> 0x00000000          0 ok

See also:: getOperTrace()

Definition at line 166 of file Board.h.

References base::Board::fOperTrace.

Referenced by cmd_settrace().

void roc::Board::setRocNumber ( uint32_t num ) [inline, inherited]

Definition at line 97 of file Board.h.

References base::Board::setBoardNumber().

void base::Board::setRole ( ClientRole role ) [inline, protected, inherited]

Definition at line 84 of file Board.h.

References base::Board::fRole.

Referenced by roc::AbbBoard::AbbBoard(), roc::FileInput::FileInput(), sp605::OpticBoard::OpticBoard(), and roc::UdpDevice::UdpDevice().

int roc::Board::setToDefault ( ) [virtual, inherited]

Activate DAQ.

Sets to default values common ROC registers.

This method will initialize the data transport chain which brings message data from the ROC. The details depend in the underlying transport. By the daq starting commands list 0 is always executed. This commands list can be initialized by

See also:: uploadStartDaqCmdList() By default configuration (after; setToDefault()) frontend is initialized (in case of nXYTER, timestamp logic initialization) and message FIFO will be cleared.; suspendDaq(), stopDaq(), getNextBuffer() suspendDaq

Sends to ROC ROC_SUSPEND_DAQ command. ROC will produce stop message and will deliver it sometime to host PC. User can continue to take data until this message. Normally no more messages will be delivered after stop daq message. stopDaq

Complimentary function for startDaq. Disables any new data requests, all coming data will be discarded getNextBuffer

Returns pointer on the buffer which contains received messages.

Parameters:

len

returns length of buffer in bytes. Buffer is allocated by board itself, buffer content remains valid until next call of getNextBuffer() or when daq is stopped. Format of messages can be defined by getMsgFormat() To extract single messages from the buffer, roc::Iterator class should be used

See also:: roc::Iterator getMsgFormat() getMsgFormat

Returns message format like formatEth2, formatOptic2 and so on Sets flush timeout of data transport

Local transport accumulates data in buffer and until buffer is not filled, data is not delivered further. Flush timeout defines time interval, when any amount of data will be flushed.

Parameters:

tmout

timeout value in sec. Sets to default values common ROC registers

For a moment, initializes start/stop commands lists

Reimplemented from base::Board.

Definition at line 303 of file Board.cxx.

References roc::Board::uploadStartDaqCmdList(), and roc::Board::uploadStopDaqCmdList().

Referenced by RocMainWidget::setSubToDefault().

void base::Board::setVerbosity ( int lvl = 0 ) [inline, inherited]

Set debug output verbosity level.

See also:: getVerbosity(), Debug()

Definition at line 123 of file Board.h.

References base::Board::fVerbosity.

Referenced by cmd_setdebug().

virtual bool base::Board::startDaq ( ) [pure virtual, inherited]

Activate DAQ.

This method will initialize the data transport chain which brings message data from the ROC. The details depend in the underlying transport. By the daq starting commands list 0 is always executed. This commands list can be initialized by

See also:: uploadStartDaqCmdList() By default configuration (after; setToDefault()) frontend is initialized (in case of nXYTER, timestamp logic initialization) and message FIFO will be cleared.; suspendDaq(), stopDaq(), getNextBuffer()

Implemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Referenced by roc::Iterator::Iterator(), TRocSource::Open(), and nxyter::QuickDaq::startRun().

virtual bool base::Board::stopDaq ( ) [pure virtual, inherited]

stopDaq

Complimentary function for startDaq. Disables any new data requests, all coming data will be discarded

Implemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Referenced by TRocSource::Close(), and nxyter::QuickDaq::startRun().

virtual bool base::Board::suspendDaq ( ) [pure virtual, inherited]

suspendDaq

Sends to ROC ROC_SUSPEND_DAQ command. ROC will produce stop message and will deliver it sometime to host PC. User can continue to take data until this message. Normally no more messages will be delivered after stop daq message.

Implemented in roc::AbbBoard, sp605::OpticBoard, roc::FileInput, and roc::UdpDevice.

Referenced by nxyter::QuickDaq::stopRun().

void base::Board::traceOper	(	OperList &	lst,
		int	rc
	)			`[protected, inherited]`

Generate output for get/put/operGen traces.

Parameters:

	isput	'isput' array
	addr	'addr' array (or pointer to address in case of get/put)
	value	'value' array (or pointer to value in case of get/put)
	num	request list length
	rc	return code

Definition at line 103 of file Board.cxx.

References base::Oper::addr, base::Board::Debug(), base::Board::findRegNameByAddress(), base::Board::fOperTrace, base::Board::GetBoardId(), base::Oper::isput, base::Board::kOperNetworkErr, base::OperList::number(), base::OperList::oper(), base::Board::operErrToString(), and base::Oper::value.

Referenced by roc::UdpDevice::operGen(), sp605::OpticBoard::operGen(), and roc::AbbBoard::operGen().

int roc::Board::uploadCommandsList	(	unsigned	num,
		const base::OperList &	lst,
		double	tmout = `0.`
	)			`[inherited]`

Add an commands list entry .

This method sets commands list, which can be executed by command activateCommandsList() or by issuing of DLM

Definition at line 138 of file Board.cxx.

References base::OperList::addPut(), base::Board::Debug(), base::OperList::isput(), base::OperList::number(), base::OperList::oper(), base::Board::operGen(), ROC_CMD_LST_ACTIVE, ROC_CMD_LST_MEM, ROC_CMD_LST_NUMBER, ROC_CMD_LST_PUT, and ROC_CMD_LST_SIZE.

Referenced by roc::Board::uploadStartDaqCmdList(), and roc::Board::uploadStopDaqCmdList().

int roc::Board::uploadStartDaqCmdList	(	bool	reset_frontend = `false`,
		bool	reset_fifo = `true`
	)			`[inherited]`

Produce and upload start daq commands list.

This method produces commands list, which is executed on the board when startDaq method is called. Actually, it is list number 0

Parameters:

	reset_frontend	defines if front-end specific reset commands will be put into commands list. For nXYTER frontend, ROC_NX_TS_RESET will be done
	reset_fifo	defines if message FIFO will be cleared

Definition at line 242 of file Board.cxx.

References base::OperList::addPut(), roc::Board::getRocFrontendKind(), base::Board::getTransportKind(), roc::kind_FEET, roc::kind_nXYTER, roc::kind_oldFEET, roc::kind_UDP, ROC_ETH_START_DAQ, ROC_FEET_CMD_TO_FEET, ROC_FEET_FIFO_RESET, ROC_FEET_RESET, ROC_NX_FIFO_RESET, ROC_NX_TS_RESET, ROC_OPTICS_START_DAQ, and roc::Board::uploadCommandsList().
