beamtime/gsi-aug12/get4v10/go4/MBSUNPACK/TMbsCrateEvent.h File Reference

(r4864/r3846)

#include "TGo4EventElement.h"
#include "T1290Data.h"
#include <stdint.h>

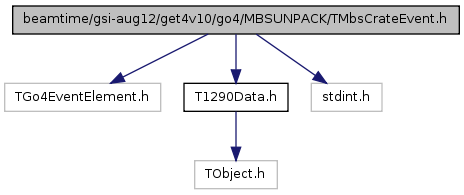

Include dependency graph for TMbsCrateEvent.h:

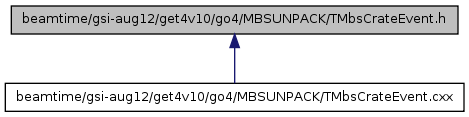

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	MQDC_t
struct	FPGA_TDC_hit
struct	FPGA_TDC_header
struct	QFW_Data
struct	ScalOrMu_Data
class	TMbsCrateEvent
Defines
#define	MAX_1182   2
#define	NUM_1182_CH   8
#define	MAX_1290   8
#define	MAX_965   3
#define	MAX_FPGA_TDC   11
#define	VERSION_VFTX_28
#define	FPGA_TDC_NBCHAN   56
#define	TDC_EVT_HEADER_KEY_MASK   0xFFFF0000
#define	TDC_EVT_HEADER_KEY_SHIFT   16
#define	TDC_EVT_HEADER_KEYWORD   0xABCD
#define	TDC_EVT_HEADER_MOD_MASK   0x0000FF00
#define	TDC_EVT_HEADER_MOD_SHIFT   8
#define	TDC_EVT_HEADER_NB_MASK   0x000000FF
#define	TDC_FIFO_FINE_CT   0x000007FF
#define	TDC_FIFO_COARSE_CT   0x00FFF800
#define	TDC_FIFO_COARSE_CT_SHIFT   11
#define	TDC_FIFO_COARSE_FT_SHIFT   0
#define	TDC_FIFO_FUTURE_BIT   0x01000000
#define	TDC_FIFO_FUTURE_BIT_SHIFT   24
#define	TDC_FIFO_DATA_CHAN   0x7E000000
#define	TDC_FIFO_DATA_CHAN_SHIFT   25
#define	TDC_FIFO_HEADER_DATA_CNT   0x000000FF
#define	TDC_FIFO_HEADER_TRIG_TIME   0x00FFF800
#define	TDC_FIFO_HEADER_TRIG_TIME_SHIFT   11
#define	TDC_FIFO_HEADER_TRIG_TYPE   0x60000000
#define	TDC_FIFO_HEADER_TRIG_TYPE_SHIFT   29
#define	TDC_FIFO_MESSAGE_TYPE   0x80000000
#define	TDC_FIFO_MESSAGE_TYPE_SHIFT   31
#define	SCALORMU_NB_SCAL   24

---

Define Documentation

#define FPGA_TDC_NBCHAN   56

Definition at line 40 of file TMbsCrateEvent.h.

Referenced by TVftxProc::add_hit(), TVftxProc::FinalizeEvent(), TVftxProc::print_hit(), TPadRpcParam::ReadOptions(), TRpcParam::ReadOptions(), TPlasticsParam::ReadOptions(), TBeamMonitorParam::ReadOptions(), and TVftxProc::TVftxProc().

#define MAX_1182   2

Definition at line 16 of file TMbsCrateEvent.h.

#define MAX_1290   8

Definition at line 21 of file TMbsCrateEvent.h.

#define MAX_965   3

Definition at line 27 of file TMbsCrateEvent.h.

#define MAX_FPGA_TDC   11

Definition at line 30 of file TMbsCrateEvent.h.

#define NUM_1182_CH   8

Definition at line 18 of file TMbsCrateEvent.h.

#define SCALORMU_NB_SCAL   24

Definition at line 132 of file TMbsCrateEvent.h.

Referenced by TScalersProc::FinalizeEvent(), and TMbsCrateProc::ProcessScalOrMu().

#define TDC_EVT_HEADER_KEY_MASK   0xFFFF0000

Definition at line 46 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_EVT_HEADER_KEY_SHIFT   16

Definition at line 47 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_EVT_HEADER_KEYWORD   0xABCD

Definition at line 48 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_EVT_HEADER_MOD_MASK   0x0000FF00

Definition at line 49 of file TMbsCrateEvent.h.

#define TDC_EVT_HEADER_MOD_SHIFT   8

Definition at line 50 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_EVT_HEADER_NB_MASK   0x000000FF

Definition at line 51 of file TMbsCrateEvent.h.

#define TDC_FIFO_COARSE_CT   0x00FFF800

Definition at line 74 of file TMbsCrateEvent.h.

Referenced by TVftxProc::BuildMyEvent(), TVftxProc::FinalizeEvent(), TVftxBoardData::GetCoarseCorrectedTime(), TPadRpcProc::ProcessVftxPad(), and TVftxProc::TVftxProc().

#define TDC_FIFO_COARSE_CT_SHIFT   11

Definition at line 75 of file TMbsCrateEvent.h.

Referenced by TVftxProc::FinalizeEvent(), TVftxBoardData::GetCoarseCorrectedTime(), TMbsCrateProc::ProcessVFTX(), and TVftxProc::TVftxProc().

#define TDC_FIFO_COARSE_FT_SHIFT   0

Definition at line 76 of file TMbsCrateEvent.h.

#define TDC_FIFO_DATA_CHAN   0x7E000000

Definition at line 79 of file TMbsCrateEvent.h.

#define TDC_FIFO_DATA_CHAN_SHIFT   25

Definition at line 80 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_FINE_CT   0x000007FF

Definition at line 73 of file TMbsCrateEvent.h.

Referenced by TVftxProc::BuildMyEvent(), TVftxProc::FinalizeEvent(), and TVftxProc::TVftxProc().

#define TDC_FIFO_FUTURE_BIT   0x01000000

Definition at line 77 of file TMbsCrateEvent.h.

#define TDC_FIFO_FUTURE_BIT_SHIFT   24

Definition at line 78 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX(), and TVftxProc::TVftxProc().

#define TDC_FIFO_HEADER_DATA_CNT   0x000000FF

Definition at line 109 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_HEADER_TRIG_TIME   0x00FFF800

Definition at line 110 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_HEADER_TRIG_TIME_SHIFT   11

Definition at line 111 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_HEADER_TRIG_TYPE   0x60000000

Definition at line 112 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_HEADER_TRIG_TYPE_SHIFT   29

Definition at line 113 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_MESSAGE_TYPE   0x80000000

Definition at line 114 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define TDC_FIFO_MESSAGE_TYPE_SHIFT   31

Definition at line 115 of file TMbsCrateEvent.h.

Referenced by TMbsCrateProc::ProcessVFTX().

#define VERSION_VFTX_28

Definition at line 34 of file TMbsCrateEvent.h.
