All kinds methods to setup and test FEBs. More...

#include <FebUtil.h>

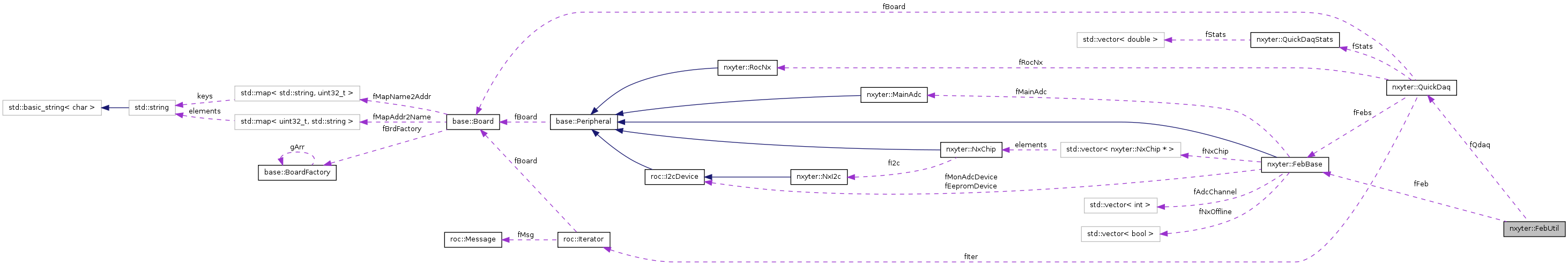

Collaboration diagram for nxyter::FebUtil:

Data Structures
struct	RunCond
	Container for run conditions for acquireData(). More...
Public Types
enum	LoopState { kLoopStopped = 0, kLoopInterrupted, kLoopRunning }
Public Member Functions
	FebUtil (FebBase feb, QuickDaq qdaq=0)
	Constructor with full addressing path information.
virtual	~FebUtil ()
void	startLoop (double time)
	Initializes test loop context.
bool	testLoop ()
	Iteration test in test loop.
void	interruptLoop ()
	Terminate loop by interrupt.
void	stopLoop ()
	Terminate loop.
uint64_t	getLoopCount () const
	Returns the number of test loop iterations.
double	getStartLoopTime () const
	Returns the time of last startLoop().
double	getTestLoopTime () const
	Returns the time of last testLoop().
int	getLoopState () const
	Returns loop state (kLoopStopped, kLoopInterrupted or kLoopRunning).
int	saveFeb (NxContext cntx[4], int domask=nxyter::kDoAll)
	Save context of all nXYTER.
int	restoreFeb (NxContext cntx[4], int domask=nxyter::kDoAll)
	Restore context of all nXYTER.
int	acquireTestTriggerData (int nxind, int npuls, DistFuncArray &dfa, bool cleardist=true)
	Acquire data for test trigger runs for a single nXYTER.
int	acquireTestTriggerData (int nxind, int npuls, NxDataSummary &nds)
	Aquire data for test trigger runs for a single nXYTER.
int	acquireTestPulserData (int nxind, const NxContext &cntx, int npuls, DistFuncArray &dfa)
	Acquire data for test pulser runs for a single nXYTER.
int	acquireTestPulserData (int nxind, const NxContext &cntx, int npuls, NxDataSummary &nds)
	Aquire data for test pulser runs for a single nXYTER.
int	testNxControlPath (int nxind, double time)
	Test nXYTER control path.
int	testNxRegisters (int nxind)
	Test nXYTER registers.
int	testMainAdcControlPath (double time)
	Test MainAdc control path.
int	testMainAdcDataPath (double time)
	Test MainAdc data path.
int	testFebControlPathCombo (double time)
	Test control path of all nXYTER of a FEB with random patterns.
Static Public Member Functions
static void	probe (base::Board *board, bool verbose=true, std::ostream &os=std::cout)
	Probes for ADC and nXYTERs and prints a report to os.
static double	now ()
	Returns current time as a `double`.
Protected Attributes
FebBase *	fFeb
	FEB under test.
QuickDaq *	fQdaq
	QuickDaq for all DAQ.
int	fLoopState
	loop state
double	fStartLoopTime
	time of last startLoop()
double	fTestLoopTime
	time of last testLoop()
double	fTestTime
	maximal duration of test
uint64_t	fLoopCount
	test loop counter

Detailed Description

All kinds methods to setup and test FEBs.

Definition at line 22 of file FebUtil.h.

Member Enumeration Documentation

enum nxyter::FebUtil::LoopState

Enumerator:

kLoopStopped
kLoopInterrupted
kLoopRunning

Definition at line 33 of file FebUtil.h.

Constructor & Destructor Documentation

nxyter::FebUtil::FebUtil	(	FebBase *	feb,
		QuickDaq *	qdaq = `0`
	)			`[explicit]`

Constructor with full addressing path information.

Definition at line 31 of file FebUtil.cxx.

nxyter::FebUtil::~FebUtil ( ) [virtual]

Definition at line 44 of file FebUtil.cxx.

Member Function Documentation

int nxyter::FebUtil::acquireTestPulserData	(	int	nxind,
		const NxContext &	cntx,
		int	npuls,
		DistFuncArray &	dfa
	)

Acquire data for test pulser runs for a single nXYTER.

This method will

start a DAQ run with only the nXYTER given by nxind enabled
activate pulse generator with 2.5 kHz and npuls pulses
aim for collecting data for about npuls test pulses

Only data received from the selected nXYTER will be accumulated in the distribution function array dfa.

Parameters:

	nxind	nXYTER index of the nXYTER to be inspected
	cntx	context of nXYTER under study with Mask part filled
	npuls	number of test pulses to be accumulated
	dfa	DistFuncArray object to return the data

Returns:: see roc::Board get/put/oper return codes, -1 if FEB or DAQ unavailable

Exceptions:

std::out_of_range

if nxind out of range

Definition at line 320 of file FebUtil.cxx.

References acquireTestTriggerData(), fFeb, fQdaq, roc::I2cDevice::getRegister(), nxyter::NxChip::i2c(), nxyter::kDoMask, nxyter::kNxC1CalibSelectMask, nxyter::kNxRegConfig1, nxyter::FebBase::nx(), nxyter::NxContext::setChannelMaskBit(), nxyter::NxI2c::setContext(), and roc::I2cDevice::setRegister().

Referenced by acquireTestPulserData(), and cmd_scanvbiasf().

int nxyter::FebUtil::acquireTestPulserData	(	int	nxind,
		const NxContext &	cntx,
		int	npuls,
		NxDataSummary &	nds
	)

Aquire data for test pulser runs for a single nXYTER.

Like acquireTestPulserData(int nxind, NxContext cntx, int npuls, DistFuncArray& dfa) but returns already reduced data in a NxDataSummary object nds.

Definition at line 363 of file FebUtil.cxx.

References acquireTestPulserData(), nxyter::NxDataSummary::analyse(), and nxyter::DistFuncArray::setMaxEntries().

int nxyter::FebUtil::acquireTestTriggerData	(	int	nxind,
		int	npuls,
		NxDataSummary &	nds
	)

Aquire data for test trigger runs for a single nXYTER.

Like acquireTestTriggerData(int nxind, int npuls, DistFuncArray& dfa) but returns already reduced data in a NxDataSummary object nds.

Definition at line 291 of file FebUtil.cxx.

References acquireTestTriggerData(), nxyter::NxDataSummary::analyse(), and nxyter::DistFuncArray::setMaxEntries().

int nxyter::FebUtil::acquireTestTriggerData	(	int	nxind,
		int	npuls,
		DistFuncArray &	dfa,
		bool	cleardist = `true`
	)

Acquire data for test trigger runs for a single nXYTER.

This method will

start a DAQ run with only the nXYTER given by nxind enabled
activate pulse generator with 2.5 kHz and npuls pulses
aim for collecting data for about npuls test pulses

Only data received from the selected nXYTER will be accumulated in the distribution function array dfa.

Parameters:

	nxind	nXYTER index of the nXYTER to be inspected
	npuls	number of test pulses to be accumulated
	dfa	DistFuncArray object to return the data
	cleardist	if `true` dfa is cleared before filling

Returns:: 0 on success, -1 if FEB or DAQ unavailable

Exceptions:

std::out_of_range

if nxind out of range

Definition at line 236 of file FebUtil.cxx.

References nxyter::DistFuncArray::addEntry(), nxyter::DistFuncArray::clear(), nxyter::QuickDaqStats::errorCount(), fFeb, fQdaq, base::Peripheral::getBoard(), roc::Message::getNxAdcValue(), roc::Message::getNxChNum(), roc::Message::getNxNumber(), nxyter::NxChip::getNxNumber(), roc::Message::isHitMsg(), nxyter::QuickDaqStats::kPrintError, nxyter::QuickDaq::msg(), nxyter::QuickDaq::nextRunNxMask(), nxyter::FebBase::nx(), nxyter::QuickDaqStats::print(), nxyter::QuickDaq::startRun(), nxyter::QuickDaq::stats(), and nxyter::QuickDaq::testRun().

Referenced by acquireTestPulserData(), acquireTestTriggerData(), cmd_idsigch(), cmd_scanadclat(), and get_vbiass_data().

uint64_t nxyter::FebUtil::getLoopCount ( ) const [inline]

Returns the number of test loop iterations.

Returns:: number of true responses of testLoop() after the last startLoop().

See also:: testLoop(), startLoop()

Definition at line 62 of file FebUtil.h.

References fLoopCount.

Referenced by print_loop_stats().

int nxyter::FebUtil::getLoopState ( ) const [inline]

Returns loop state (kLoopStopped, kLoopInterrupted or kLoopRunning).

Definition at line 74 of file FebUtil.h.

References fLoopState.

Referenced by cmd_testnxcntl(), and cmd_testnxregs().

double nxyter::FebUtil::getStartLoopTime ( ) const [inline]

Returns the time of last startLoop().

Definition at line 66 of file FebUtil.h.

References fStartLoopTime.

Referenced by print_loop_stats().

double nxyter::FebUtil::getTestLoopTime ( ) const [inline]

Returns the time of last testLoop().

Definition at line 70 of file FebUtil.h.

References fStartLoopTime.

void nxyter::FebUtil::interruptLoop ( )

Terminate loop by interrupt.

When running the loop state is kLoopRunning. A call to this method will change the loop state to kLoopInterrupted. The testLoop() method will return false when the loop state is no longer kLoopRunning, thus causing the test loop to be terminated.

Main application for this method is to be called from a signal handler, often a SIGINT handler to catch a ^C. The code example below shows how such a SIGINT handler can be implemented.

void hdl_int(int sig, siginfo_t *info, void *cnxt)
{
  p_to_febutil->interruptLoop();
}


int main(int argc, char* argv[])
{
  struct sigaction act;
  memset (&act, '\0', sizeof(act));
  act.sa_sigaction = &hdl_int;
  act.sa_flags = SA_SIGINFO;
  if (sigaction(SIGINT, &act, 0) < 0) {
    perror ("sigaction");
  }
...
}

With such a handler test loops will be gracefully terminated upon ^C.

See also:: startLoop(), stopLoop(), testLoop()

Definition at line 105 of file FebUtil.cxx.

References fLoopState, and kLoopRunning.

Referenced by hdl_int().

double nxyter::FebUtil::now ( ) [static]

Returns current time as a double.

Definition at line 943 of file FebUtil.cxx.

Referenced by print_loop_stats(), startLoop(), and testLoop().

void nxyter::FebUtil::probe	(	base::Board *	board,
		bool	verbose = `true`,
		std::ostream &	os = `std::cout`
	)			`[static]`

Probes for ADC and nXYTERs and prints a report to os.

Uses the nxyter::MainAdc::probe() and nxyter::NxI2c::probe() and FebBase::discoverFebs() methods to scan both ports of the ROC. Currently the even I2C addresses between 2 and 126 are probed, this is the range conceptually accessible in the current FEBs.

When verbose is true, a detailed list of all probe return codes is given, it can be helpfull to determine why a device isn't probed successfully. A typical list looks like

  adc  0    : rc =    8,20 -> readback verify error
  nx   0,  8: rc =    0,21 -> secondary bus error
...
  adc  1    : rc =    0, 0 -> success
  nx   1,  8: rc =    0, 0 -> success
  nx   1, 10: rc =    6,20 -> readback verify error
...

The report ends always with a summary of the form like

Full MainAdc.probe() and NxI2c::probe() scan found:
  port adc ----- nx i2c slave address in range 2,..,126, only even -------
                                                            11111111111111
           000011111222223333344444555556666677777888889999900000111112222
           246802468024680246802468024680246802468024680246802468024680246
    0   y  ---y-----------------------------------------------------------
    1   -  ---------------------------------------------------------------
Autoconfigure with FebBase::discoverFebs() found:
  port 0 : Feb1nxGenC
  port 1 : nothing

Parameters:

	os	output stream
	board	ROC board pointer
	verbose	if `true`, the return codes of all probes are listed

Definition at line 861 of file FebUtil.cxx.

References nxyter::FebBase::discoverFebs(), base::Board::operErrCode(), base::Board::operErrCodeName(), base::Board::operErrIndex(), nxyter::NxI2c::probe(), nxyter::MainAdc::probe(), and nxyter::FebBase::typeToString().

Referenced by cmd_discover().

int nxyter::FebUtil::restoreFeb	(	nxyter::NxContext	cntx[4],
		int	domask = `nxyter::kDoAll`
	)

Restore context of all nXYTER.

The context of nXYTER of the current FEB which are not set 'offline' is restored from the context array cntx. The domask determines which parts are saved.

Parameters:

	cntx	array of NxContext objects. cntx[i] is used to restore the context of the nXYTER with nXYTER index i.
	domask	one or several of the mask bits nxyter::kDoMask, nxyter::kDoCore, or nxyter::kDoTrim

Returns:: see roc::Board get/put/oper return codes.

See also:: saveFeb()

Definition at line 204 of file FebUtil.cxx.

References fFeb, nxyter::FebBase::getNxOffline(), nxyter::NxChip::i2c(), nxyter::FebBase::numNx(), nxyter::FebBase::nx(), and nxyter::NxI2c::setContext().

int nxyter::FebUtil::saveFeb	(	nxyter::NxContext	cntx[4],
		int	domask = `nxyter::kDoAll`
	)

Save context of all nXYTER.

The context of nXYTER of the current FEB which are not set 'offline' is saved in the context array cntx. The domask determines which parts are saved.

Parameters:

	cntx	array of NxContext objects. cntx[i] will hold the saved context of the nXYTER with nXYTER index i.
	domask	one or several of the mask bits nxyter::kDoMask, nxyter::kDoCore, or nxyter::kDoTrim

Returns:: see roc::Board get/put/oper return codes.

See also:: restoreFeb()

Definition at line 175 of file FebUtil.cxx.

References fFeb, nxyter::NxI2c::getContext(), nxyter::FebBase::getNxOffline(), nxyter::NxChip::i2c(), nxyter::FebBase::numNx(), and nxyter::FebBase::nx().

void nxyter::FebUtil::startLoop ( double time )

Initializes test loop context.

The test loop logic is documented in detail under testLoop(). This method initializes the context, resets the counter and time keeping logic.

Parameters:

time

time in seconds the next test loop should be active. A time 0. results in indefinite execution, in this case the loop is usually terminated via ^C and an interruptLoop() call or via a stopLoop() call.

See also:: testLoop(), stopLoop(), interruptLoop(), getLoopCounter()

Definition at line 60 of file FebUtil.cxx.

References fLoopCount, fLoopState, fStartLoopTime, fTestTime, and now().

Referenced by cmd_autoped(), cmd_autovbiass(), cmd_geti2c(), cmd_idsigch(), cmd_printdatadbg(), cmd_scanadclat(), cmd_scanmonadc(), cmd_scanvbiasf(), cmd_scanvbiass(), cmd_seti2c(), cmd_testnxdata(), testFebControlPathCombo(), testMainAdcControlPath(), testMainAdcDataPath(), testNxControlPath(), and testNxRegisters().

void nxyter::FebUtil::stopLoop ( )

Terminate loop.

When running the loop state is kLoopRunning. A call to this method will change the loop state to kLoopStopped. The testLoop() method will return false when the loop state is no longer kLoopRunning, thus causing the test loop to be terminated.

By inspecting the loop state with getLoopState() it is possible to determine whether the loop ended due to an interrupt or because stopLoop() was called.

See also:: startLoop(), interruptLoop(), testLoop()

Definition at line 125 of file FebUtil.cxx.

References fLoopState, and kLoopRunning.

int nxyter::FebUtil::testFebControlPathCombo ( double time )

Test control path of all nXYTER of a FEB with random patterns.

Parameters:

time

test time in sec

Returns:: number of errors, or -1 if no FEB attached

Todo:: add ADC test too.

Definition at line 729 of file FebUtil.cxx.

References fFeb, nxyter::NxI2c::getContext(), nxyter::NxContext::getRegister(), nxyter::NxChip::i2c(), nxyter::kDoCore, nxyter::kDoMask, nxyter::kNxRegdelayTestTrig, nxyter::FebBase::numNx(), nxyter::FebBase::nx(), base::Board::operErrToString(), nxyter::NxI2c::setContext(), nxyter::NxContext::setRegister(), startLoop(), and testLoop().

Referenced by cmd_testfebcntl().

bool nxyter::FebUtil::testLoop ( )

Iteration test in test loop.

This is the central method of the test loop environment. It allows to implement test loops with run for a given amount of time. A call of startLoop() initializes the loop context, the testLoop() method is used as test condition of a while() loop. Simple example

  gUtil->startLoop(10.);
  while(gUtil->testLoop()) {
    int rc = i2c.setRegister(reg, val, veri);
    if (rc) std::cout << base::Board::operErrToString(rc) << std::endl;
  }

See stopLoop() of how to implement a loop abort via ^C.
