Represents the full interface to a AD9228/AD9219 ADC. More...

#include <MainAdc.h>

Inheritance diagram for nxyter::MainAdc:

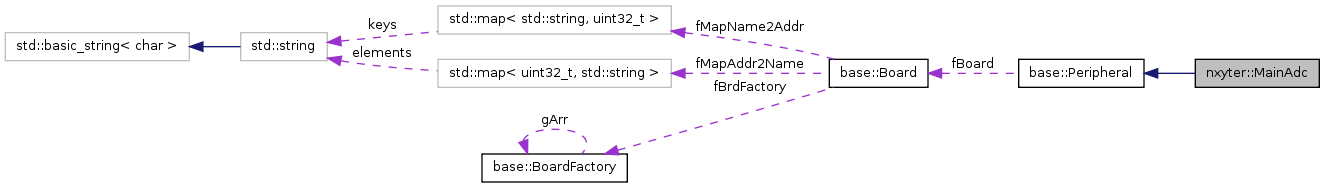

Collaboration diagram for nxyter::MainAdc:

Public Types
enum	adcRegs { kReg_chip_port_config = 0x00, kReg_chip_id = 0x01, kReg_chip_grade = 0x02, kReg_device_index_A = 0x05, kReg_modes = 0x08, kReg_clock = 0x09, kReg_test_io = 0x0d, kReg_output_mode = 0x14, kReg_output_adjust = 0x15, kReg_output_phase = 0x16, kReg_user_patt1_lsb = 0x19, kReg_user_patt1_msb = 0x1a, kReg_user_patt2_lsb = 0x1b, kReg_user_patt2_msb = 0x1c, kReg_serial_control = 0x21, kReg_serial_ch_stat = 0x22, kReg_device_update = 0xff }
	Names for ADC Registers. More...
Public Member Functions
	MainAdc ()
	Default constructor.
	MainAdc (base::Board *board, int port, bool mode4nx=false)
	Constructor with full addressing path information.
virtual	~MainAdc ()
bool	isSPI () const
int	setRegister (uint8_t reg, uint8_t val, bool veri=false)
	Write to ADC device register with optional readback verification.
int	getRegister (uint8_t reg, uint8_t &val)
	Read from ADC device register.
int	setTestMode (int ch, uint8_t mode)
	Setup test pattern mode mode for ADC channel ch.
int	setUserPattern (uint16_t pat)
	Setup user test pattern pat for all ADC channels.
int	probe ()
	Probe whether an ADC exists.
int	setToDefault ()
	Set the ADC registers to default values suitable for data taking.
void	printRegisters (std::ostream &os)
	Read ADC registers and print to stream os.
int	setChannelMux (int nxnum, uint32_t val)
	Setup association of nXYTER chips and ADC channels.
int	setChannelLatency (int nxnum, uint32_t val)
	Set delay of ADC data relative to nXYTER data.
int	getChannelLatency (int nxnum, uint32_t &val)
	Returns delay of ADC data relative to nXYTER data.
int	setClockDelay (uint32_t val)
	Set the relative phase between the nXYTER and the ADC clock.
int	setClockDelaySrInit (uint32_t val)
	Set nXYTER to ADC clock phase, 'SR_INIT' part.
int	getClockDelaySrInit (uint32_t &val)
	Returns 'SR_INIT' part of nXYTER to ADC clock phase adjust.
int	setClockDelayBufg (uint32_t val)
	Set nXYTER to ADC clock phase, 'BUFG' part.
int	getClockDelayBufg (uint32_t &val)
	Returns 'BUFG' part of nXYTER to ADC clock phase adjust.
int	getAdcDirect (int num, uint32_t &val)
	Direct access to ADC values.
base::Board &	board ()
	Return reference to `roc::Board` which hosts the `Peripheral`.
base::Board *	getBoard () const
	Returns pointer to the roc::Board which hosts the `Peripheral`.
Static Public Member Functions
static void	calcClockDelayRegs (uint32_t delay, uint32_t &sr_init, uint32_t &bufg_select)
	Calculates registers values for specified ADC clock delay.
static uint32_t	findClockDelay (uint32_t sr_init, uint32_t bufg_select)
	Finds clock delay value, which is correspond to specified regs. Returns 0xffff if fails.
static const char *	registerName (int reg)
	Returns name for register reg (or "" if undefined).
static void	addAddrMap (base::Board *board)
Protected Attributes
int	fUseSPI
	indicate that SPI->I2C interface for SysCore3 should be used
int	fPort
	the port number
bool	fMode4nx
	4nx mode selector
base::Board *	fBoard
	board pointer
Related Functions
(Note that these are not member functions.)
std::ostream &	operator<< (std::ostream &os, nxyter::MainAdc &obj)
	ostream insertion for nxyter::MainAdc

Detailed Description

Represents the full interface to a AD9228/AD9219 ADC.

This class provides the access to the ROC and SMI interface parts of the main data ADC used on the FEB's. It holds the full address information but no further context.

Definition at line 17 of file MainAdc.h.

Member Enumeration Documentation

enum nxyter::MainAdc::adcRegs

Names for ADC Registers.

Enumerator:

kReg_chip_port_config
kReg_chip_id
kReg_chip_grade
kReg_device_index_A
kReg_modes
kReg_clock
kReg_test_io
kReg_output_mode
kReg_output_adjust
kReg_output_phase
kReg_user_patt1_lsb
kReg_user_patt1_msb
kReg_user_patt2_lsb
kReg_user_patt2_msb
kReg_serial_control
kReg_serial_ch_stat
kReg_device_update

Definition at line 58 of file MainAdc.h.

Constructor & Destructor Documentation

nxyter::MainAdc::MainAdc ( )

Default constructor.

Definition at line 29 of file MainAdc.cxx.

nxyter::MainAdc::MainAdc	(	base::Board *	board,
		int	port,
		bool	mode4nx = `false`
	)

Constructor with full addressing path information.

Sets up MainAdc object with full addressing information

Parameters:

	board	ROC board pointer
	port	the ROC port
	mode4nx	if `true` configure for FEB4nx class FEBs

Note:: For FEB1nx class or glo_feb_feb2nx FEBs the control and data interface is on the same port. For FEB4nx class FEBs the port is always 0 (CON19), but the control interface is on port 0 (CON19) while the data interface is at port 1 (CON20). Therefore the mode4nx flag is needed to always have a complete addressing information available in the object.

Definition at line 54 of file MainAdc.cxx.

References fUseSPI, and base::Board::is_SPI_I2C().

nxyter::MainAdc::~MainAdc ( ) [virtual]

Definition at line 66 of file MainAdc.cxx.

Member Function Documentation

void nxyter::MainAdc::addAddrMap ( base::Board * board ) [static]

base::Board & base::Peripheral::board ( ) [inherited]

Return reference to roc::Board which hosts the Peripheral.

Exceptions:

std::runtime_error

if board pointer not initialized or 0.

Definition at line 30 of file Peripheral.cxx.

References base::Peripheral::fBoard.

Referenced by nxyter::RocNx::fireTestPulse(), getAdcDirect(), nxyter::NxChip::getChannelDelay(), getChannelLatency(), getClockDelayBufg(), getClockDelaySrInit(), base::Gpio::getConfig(), nxyter::RocNx::getDataDebug(), nxyter::RocNx::getFifoEmpty(), nxyter::RocNx::getFifoFull(), nxyter::RocNx::getNxActive(), roc::I2cDevice::getRegister(), getRegister(), roc::I2cDevice::getRegister16(), base::Gpio::getSyncBaud(), base::Gpio::getSyncScale(), nxyter::FebBase::initRoc(), nxyter::FebBase::resetNxI2cBus(), nxyter::FebBase::resetNxI2cRegister(), nxyter::RocNx::resetRocNxTs(), nxyter::NxChip::setChannelDelay(), setChannelLatency(), setChannelMux(), setClockDelay(), setClockDelayBufg(), setClockDelaySrInit(), base::Gpio::setConfig(), nxyter::RocNx::setDebugMode(), nxyter::RocNx::setLTSDelay(), nxyter::RocNx::setNxActive(), nxyter::NxChip::setNxNumber(), nxyter::RocNx::setParityCheck(), roc::I2cDevice::setRegister(), setRegister(), roc::I2cDevice::setRegisterVerify(), base::Gpio::setSyncBaud(), base::Gpio::setSyncScale(), and nxyter::RocNx::setToDefault().

void nxyter::MainAdc::calcClockDelayRegs	(	uint32_t	delay,
		uint32_t &	sr_init,
		uint32_t &	bufg_select
	)			`[static]`

Calculates registers values for specified ADC clock delay.

Definition at line 525 of file MainAdc.cxx.

Referenced by findClockDelay(), and setClockDelay().

uint32_t nxyter::MainAdc::findClockDelay	(	uint32_t	sr_init,
		uint32_t	bufg_select
	)			`[static]`

Finds clock delay value, which is correspond to specified regs. Returns 0xffff if fails.

Definition at line 543 of file MainAdc.cxx.

References calcClockDelayRegs(), and delay().

Referenced by AdcWidget::displayClockDelay().

int nxyter::MainAdc::getAdcDirect	(	int	num,
		uint32_t &	val
	)

Direct access to ADC values.

In normal operation the ADC values are only inspected when a nXYTER data valid is processed, in this case the ADC reading is placed as part of the hit message into the data stream. For tests it is sometimes desireable to directly read the ADC values. This methods provides this access, and returns the current ADC value for channel num.

Note that the ADC values are updated at 32 MHz. Note also, that in quiecent state the nXYTER tends to produce a reading close to ADC midrange, completely independent of the nXYTER baseline settings.

Parameters:

	num	ADC channel number (0-3)
	val	ADC data (12 bit)

Returns:: see roc::Board get/put/oper return codes, or -1 if num out-of-range

Definition at line 664 of file MainAdc.cxx.

References ADC_PORT_A, ADC_PORT_B, ADC_PORT_C, ADC_PORT_D, base::Peripheral::board(), CON19, CON20, fMode4nx, fPort, base::Board::get(), isSPI(), ROC_NX_ADC_DIRECT_1a, ROC_NX_ADC_DIRECT_1b, ROC_NX_ADC_DIRECT_1c, ROC_NX_ADC_DIRECT_1d, ROC_NX_ADC_DIRECT_2a, ROC_NX_ADC_DIRECT_2b, ROC_NX_ADC_DIRECT_2c, and ROC_NX_ADC_DIRECT_2d.

Referenced by cmd_getadcdirect(), and nxyter::FebUtil::testMainAdcDataPath().

base::Board* base::Peripheral::getBoard ( ) const [inline, inherited]

Returns pointer to the roc::Board which hosts the Peripheral.

Note: normally using board() is more convenient.

Definition at line 38 of file Peripheral.h.

References base::Peripheral::fBoard.

Referenced by nxyter::FebUtil::acquireTestTriggerData(), nxyter::NxChip::activate(), nxyter::FebBase::addNxChip(), nxyter::NxChip::deactivate(), nxyter::NxChip::isactive(), and nxyter::QuickDaq::QuickDaq().

int nxyter::MainAdc::getChannelLatency	(	int	nxnum,
		uint32_t &	val
	)

Returns delay of ADC data relative to nXYTER data.

Parameters:

	nxnum	see nXYTER number
	val	delay of ADC data relative to nXYTER data in 250MHz clocks

Returns:: see roc::Board get/put/oper return codes, or -1 if nxnum out-of-range

See also:: getChannelLatency()

Definition at line 469 of file MainAdc.cxx.

References base::Peripheral::board(), base::Board::get(), isSPI(), ROC_NX_ADC_LATENCY1, ROC_NX_ADC_LATENCY2, ROC_NX_ADC_LATENCY3, and ROC_NX_ADC_LATENCY4.

Referenced by cmd_scanadclat().

int nxyter::MainAdc::getClockDelayBufg ( uint32_t & val )

Returns 'BUFG' part of nXYTER to ADC clock phase adjust.

See also:: setClockDelayBufg()

Definition at line 636 of file MainAdc.cxx.

References base::Peripheral::board(), CON19, fPort, base::Board::get(), isSPI(), ROC_NX_BUFG_SELECT, and ROC_NX_BUFG_SELECT2.

Referenced by cmd_scanadclat(), and AdcWidget::getOnlyDelayRegs().

int nxyter::MainAdc::getClockDelaySrInit ( uint32_t & val )

Returns 'SR_INIT' part of nXYTER to ADC clock phase adjust.

Parameters:

val

initial shift register setting (16 bit)

Returns:: see roc::Board get/put/oper return codes

See also:: setClockDelaySrInit()

Definition at line 592 of file MainAdc.cxx.

References base::Peripheral::board(), CON19, fPort, base::Board::get(), isSPI(), ROC_NX_SR_INIT, and ROC_NX_SR_INIT2.

Referenced by cmd_scanadclat(), and AdcWidget::getOnlyDelayRegs().

int nxyter::MainAdc::getRegister	(	uint8_t	reg,
		uint8_t &	val
	)

Read from ADC device register.

Reads an 8bit value from device register reg.

Parameters:

	reg	device register number
	val	value

Returns:: see roc::Board get/put/oper return codes

See also:: setRegister()

Definition at line 155 of file MainAdc.cxx.

References base::Peripheral::board(), fPort, isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), base::Board::operGen(), base::Board::operPG(), ROC_NX_ADC_ADDR, ROC_NX_ADC_ADDR2, ROC_NX_ADC_ANSWER, and ROC_NX_ADC_ANSWER2.

Referenced by AdcWidget::getSubConfig(), printRegisters(), probe(), and setTestMode().

bool nxyter::MainAdc::isSPI ( ) const [inline]

Definition at line 28 of file MainAdc.h.

References fUseSPI.

Referenced by getAdcDirect(), getChannelLatency(), getClockDelayBufg(), getClockDelaySrInit(), getRegister(), setChannelLatency(), setChannelMux(), setClockDelayBufg(), setClockDelaySrInit(), and setRegister().

void nxyter::MainAdc::printRegisters ( std::ostream & os )

Read ADC registers and print to stream os.

Produces a nicely formatted listing of all ADC settings with the value given in hex, decimal and also binary representation. An ADC with default settings setup by setToDefault() will produce

Reg( 0) chip_port_config: 0x18  24   0 0 0 1 1 0 0 0
Reg( 1) chip_id         : 0x02   2   0 0 0 0 0 0 1 0
Reg( 2) chip_grade      : 0x11  17   0 0 0 1 0 0 0 1
Reg( 5) device_index_A  : 0x0f  15   0 0 0 0 1 1 1 1
Reg( 8) modes           : 0x00   0   0 0 0 0 0 0 0 0
Reg( 9) clock           : 0x01   1   0 0 0 0 0 0 0 1
Reg(13) test_io         : 0x00   0   0 0 0 0 0 0 0 0
Reg(20) output_mode     : 0x00   0   0 0 0 0 0 0 0 0
Reg(21) output_adjust   : 0x00   0   0 0 0 0 0 0 0 0
Reg(22) output_phase    : 0x03   3   0 0 0 0 0 0 1 1
Reg(25) user_patt1_lsb  : 0x00   0   0 0 0 0 0 0 0 0
Reg(26) user_patt1_msb  : 0x00   0   0 0 0 0 0 0 0 0
Reg(27) user_patt2_lsb  : 0x00   0   0 0 0 0 0 0 0 0
Reg(28) user_patt2_msb  : 0x00   0   0 0 0 0 0 0 0 0
Reg(33) serial_control  : 0x03   3   0 0 0 0 0 0 1 1
Reg(34) serial_ch_stat  : 0x00   0   0 0 0 0 0 0 0 0

Definition at line 381 of file MainAdc.cxx.

References getRegister(), and registerName().

Referenced by cmd_printadc(), operator<<(), and nxyter::FebBase::printRegisters().

int nxyter::MainAdc::probe ( )

Probe whether an ADC exists.

This method tries to test in a reliable but as much as possible non-intrusive way whether an ADC chip is accessible under the port setup for the object. The probe procedure uses the four user pattern registers of the ADC and performs four steps

read these registers
write distinct values into these registers
read back and check the distinct values
restore the initial settings (saved in first step)

The method aborts and returns with a non-zero return code when any of the above operation or tests fail. In case of success the ADC chip is in the same state as before.

The probe is mostly non-intrusive because only registers used in test modes are used, and should therefore not disput normal operation.

Returns:: 0 on success and non-zero if any step fails. See roc::Board get/put/oper return codes for details. The index refers to the 16 get and set operations and thus allows to precisely pinpoint at what point the probe aborted.

Definition at line 271 of file MainAdc.cxx.

References getRegister(), base::Board::kOperVerifyErr, kReg_user_patt2_msb, base::Board::operErrBuild(), and setRegister().

Referenced by nxyter::FebBase::discoverFebs(), nxyter::FebUtil::probe(), and nxyter::FebUtil::testMainAdcControlPath().

const char * nxyter::MainAdc::registerName ( int reg ) [static]

Returns name for register reg (or "" if undefined).

Definition at line 695 of file MainAdc.cxx.

Referenced by AdcWidget::AdcWidget(), and printRegisters().

int nxyter::MainAdc::setChannelLatency	(	int	nxnum,
		uint32_t	val
	)

Set delay of ADC data relative to nXYTER data.

Parameters:

	nxnum	see nXYTER number
	val	delay of ADC data relative to nXYTER data in 250MHz clocks

Returns:: see roc::Board get/put/oper return codes, or -1 if nxnum out-of-range

See also:: getChannelLatency()

Definition at line 445 of file MainAdc.cxx.

References base::Peripheral::board(), isSPI(), base::Board::put(), ROC_NX_ADC_LATENCY1, ROC_NX_ADC_LATENCY2, ROC_NX_ADC_LATENCY3, and ROC_NX_ADC_LATENCY4.

Referenced by cmd_scanadclat().

int nxyter::MainAdc::setChannelMux	(	int	nxnum,
		uint32_t	val
	)

Setup association of nXYTER chips and ADC channels.

The ROC can serve one or two FEBs, each with 4 channel ADC, and a total or four nXYTER chips. An ADC channel mux allows to associate every nXYTER data channel with any of the 4 possible ADC data channels of the associated port. This method controls the setting of this multiplexer.

Parameters:

nxnum

see nXYTER number

val

ADC channel. Only 2 LSB are used, valid values are

0 use data from connector pin A17/B17
1 use data from connector pin A18/B18
2 use data from connector pin A20/B20
3 use data from connector pin A21/B21

Returns:: see roc::Board get/put/oper return codes, or -1 if nxnum out-of-range

Note:: The ADC data for nxnum = 0 and 1 is taken from port 0 (CON19) for FEB1nx class and FEB2nx class FEBs and from port 1 (CON20) for FEB4nx class FEBs. The ADC data for nxnum = 2 and 3 is always taken from port 1 (CON20).

Definition at line 421 of file MainAdc.cxx.

References base::Peripheral::board(), isSPI(), base::Board::put(), ROC_NX_ADC_PORT_SELECT1, ROC_NX_ADC_PORT_SELECT2, ROC_NX_ADC_PORT_SELECT3, and ROC_NX_ADC_PORT_SELECT4.

Referenced by nxyter::FebBase::initRoc().

int nxyter::MainAdc::setClockDelay ( uint32_t delay )

Set the relative phase between the nXYTER and the ADC clock.

The ADC clock can be shifted relative to the nXYTER clock to adjust the proper data sampling timing on the FEB. The clock shift is implemented on the ROC in a two stage fashion, leading to two internal setup parameters. This method takes a desired delay in units of ns as input, calculates these parameters, and calls the low level methods setClockDelaySrInit() and setClockDelayBufg() to transmit them to the ROC.

Note:: The mapping of delay to the hardware settings is done such that a larger value of delay will cause a later sampling of the nXYTER data by the ADC. This way the time direction used by this method and by setChannelLatency() is the same.

Parameters:

delay

desired delay on units of 1 ns

Returns:: see roc::Board get/put/oper return codes

Definition at line 503 of file MainAdc.cxx.

References base::Peripheral::board(), calcClockDelayRegs(), base::Board::Debug(), base::Board::operErrBuild(), setClockDelayBufg(), and setClockDelaySrInit().

Referenced by cmd_scanadclat(), cmd_setadcclock(), AdcWidget::setClockDelay(), and AdcWidget::setSubToDefault().

int nxyter::MainAdc::setClockDelayBufg ( uint32_t val )

Set nXYTER to ADC clock phase, 'BUFG' part.

Low level method to setup one of of two parameters controling the relative phase between the nXYTER and the ADC clock. At the user level always call setClockDelay().

The 'BUFG' setting determines whether the 250 MHz clock is used directly (val = 0) or a clock shifted by 90 degree is used (val = 1). This changes the relative clock phase between nXYTER and ADC on the FEB by 1 ns.

Parameters:

val

new clock phase mux setting (1 bit)

Returns:: see roc::Board get/put/oper return codes

See also:: getClockDelayBufg()

Definition at line 619 of file MainAdc.cxx.

References base::Peripheral::board(), CON19, fPort, isSPI(), base::Board::put(), ROC_NX_BUFG_SELECT, and ROC_NX_BUFG_SELECT2.

Referenced by cmd_scanadclat(), and setClockDelay().

int nxyter::MainAdc::setClockDelaySrInit ( uint32_t val )

Set nXYTER to ADC clock phase, 'SR_INIT' part.

Low level method to setup one of of two parameters controling the relative phase between the nXYTER and the ADC clock. At the user level always call setClockDelay().

The 'SR_INIT' setting determines the initial value of the ADC-Clock generating shift register.

Parameters:

val

new initial shift register setting (16 bit)

Returns:: see roc::Board get/put/oper return codes

See also:: getClockDelaySrInit()

Definition at line 573 of file MainAdc.cxx.

References base::Peripheral::board(), CON19, fPort, isSPI(), base::Board::put(), ROC_NX_SR_INIT, and ROC_NX_SR_INIT2.

Referenced by cmd_scanadclat(), and setClockDelay().

int nxyter::MainAdc::setRegister	(	uint8_t	reg,
		uint8_t	val,
		bool	veri = `false`
	)

Write to ADC device register with optional readback verification.

Writes the 8bit value val to device register reg. If veri is true, the register contents is read back and verified.

Parameters:

	reg	device register number
	val	value
	veri	if `true` readback verification done (default is `false`)

Returns:: see roc::Board get/put/oper return codes

See also:: getRegister()

Definition at line 84 of file MainAdc.cxx.

References base::Peripheral::board(), fPort, isSPI(), base::Board::kOperBusErr, base::Board::operErrBuild(), base::Board::operGen(), ROC_NX_ADC_ADDR, ROC_NX_ADC_ADDR2, ROC_NX_ADC_ANSWER, ROC_NX_ADC_ANSWER2, ROC_NX_ADC_REG, and ROC_NX_ADC_REG2.

Referenced by cmd_setadc(), probe(), AdcWidget::regChanged(), AdcWidget::setSubConfig(), setTestMode(), setToDefault(), and setUserPattern().

int nxyter::MainAdc::setTestMode	(	int	ch,
		uint8_t	mode
	)

Setup test pattern mode mode for ADC channel ch.

Parameters:

	ch	ADC channel number (0-3)
	mode	ADC test pattern mode (0-12)

Returns:: see roc::Board get/put/oper return codes

Definition at line 214 of file MainAdc.cxx.

References getRegister(), kReg_device_index_A, kReg_test_io, base::Board::operErrBuild(), and setRegister().

Referenced by cmd_setadcpatt(), and nxyter::FebUtil::testMainAdcDataPath().

int nxyter::MainAdc::setToDefault ( )

Set the ADC registers to default values suitable for data taking.

Rewrite all ADC registers which determine operation to the power-up defaults. Only exception is the serial_control register, which is set for 12 bit operation (rather than nominal bitstream). This allows to use also 10 bit ADC's, some early FEB actually did so.

In particular:

all test pattern modes are canceled, measured ADC values will transmitted (channel mask is first set to b1111, that the test_io register is set to 0)
all channels are powered up

All writes are verified, so an error return is truely bad news.
