Represents a FEB Rev D with 1 nXYTER. More...

#include <Feb1nxGenD.h>

Inheritance diagram for nxyter::Feb1nxGenD:

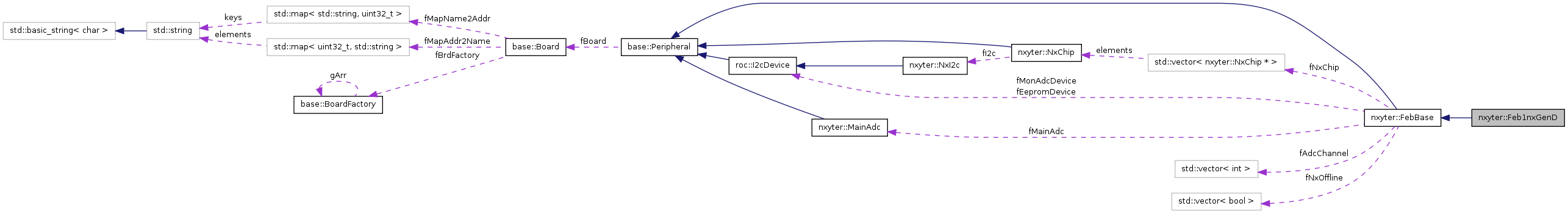

Collaboration diagram for nxyter::Feb1nxGenD:

Public Types
enum	FebType { kFeb1nx = 100, kFeb1nxGenB, kFeb1nxGenC, kFeb1nxGenD, kFeb2nx = 200, kFeb2nxGas, kFeb4nx = 400, kFeb4nxBT }
Public Member Functions
	Feb1nxGenD ()
	Feb1nxGenD (base::Board *board, int port)
	Constructor with full addressing path information.
virtual	~Feb1nxGenD ()
int	getPortNumber () const
	Returns port (connector) number on ROC (0 or 1).
int	getFebClass () const
	Returns class of FEB, kFeb1nx, kFeb2nx, or kFeb4nx.
int	getFebType () const
	Returns type of FEB, encoding see FebBase::FebType.
int	numNx () const
	Returns the number connected nXYTER on this FEB.
nxyter::NxChip &	nx (int nxind)
	Gives access to the NxChip object of the nXYTER with index ind.
nxyter::MainAdc &	adc ()
	Gives access to the MainADC object.
virtual int	getFebState ()
	Get current FEB state - active flags of nXYTERs.
virtual int	initRoc ()
	Initialize ROC to support `this` FEB.
virtual int	probe ()
	Probe whether nx and adc on the FEB are available. set 'offline' flags.
virtual int	setToDefault (bool ispos0=false, bool ispos1=false)
	Write default values into ADC and nXYTER registers.
virtual void	printNxHeadLine (std::ostream &os, int nxind)
	Print standart headline for a nXYTER nxind.
virtual void	printRegisters (std::ostream &os, int domask=nxyter::kDoAll)
	Read nXYTER and ADC registers and print to stream os.
void	resetNxI2cBus ()
	Reset the I2C Interface of all nXYTERs of the FEB.
void	resetNxI2cRegister ()
	Reset the I2C Registers of all nXYTERs of the FEB.
void	setNxOffline (int nxind, bool isoff)
	Set 'offline' status flag for nXYTER nxind.
bool	getNxOffline (int nxind)
	Returns 'offline' status flag for nXYTER nxind.
int	setNxTestModes (bool testpuls, bool testtrig, int calselect)
	Setup test pulser and test trigger mode in all nXYTERs.
int	setNxRegisterAll (uint8_t reg, uint8_t val, bool veri=true)
	Write a value into a register of all nXYTERs.
bool	monAdcSupport ()
	Returns monitor ADC support status.
bool	eepromSupport ()
	Returns EEProm support status.
int	getNumMonAdc ()
int	getMonAdc (int ch, uint16_t &val)
	Read value from monitoring ADC.
base::Board &	board ()
	Return reference to `roc::Board` which hosts the `Peripheral`.
base::Board *	getBoard () const
	Returns pointer to the roc::Board which hosts the `Peripheral`.
Static Public Member Functions
static const char *	typeToString (int type)
	Converts a FebClass or FebType value into a string.
static int	stringToType (const char *str)
	Converts a string into a FebClass or FebType value.
static void	discoverFebs (base::Board *board, int &typeport0, int &typeport1, bool liberal=false)
	Method to discover FEB's connected to the ROC.
static nxyter::FebBase *	newFeb (base::Board *board, int port, int type)
	Factory method to create a new Feb object.
Protected Member Functions
void	addNxChip (int addr, int nxnum, int adcmux)
Protected Attributes
int	fPort
	port the feb is connected to
int	fType
	FEB class/type.
std::vector< nxyter::NxChip * >	fNxChip
	vector of NxChip objects
std::vector< bool >	fNxOffline
	nx offline flag
nxyter::MainAdc	fMainAdc
	MainAdc object.
bool	fMode4nx
	4nx mode selector
std::vector< int >	fAdcChannel
	ADC channel mux settings.
roc::I2cDevice	fMonAdcDevice
	monitor ADC I2C device
roc::I2cDevice	fEepromDevice
	EEProm I2C device.
base::Board *	fBoard
	board pointer
Related Functions
(Note that these are not member functions.)
std::ostream &	operator<< (std::ostream &os, nxyter::FebBase &obj)
	ostream insertion for nxyter::FebBase

Detailed Description

Represents a FEB Rev D with 1 nXYTER.

Definition at line 15 of file Feb1nxGenD.h.

Member Enumeration Documentation

enum nxyter::FebBase::FebType [inherited]

Enumerator:

kFeb1nx	single Nx FEB class
kFeb1nxGenB	1nx general purpose FEB Rev B
kFeb1nxGenC	1nx general purpose FEB Rev C
kFeb1nxGenD	1nx general purpose FEB Rev D
kFeb2nx	dual Nx FEB class
kFeb2nxGas	2nx FEB for gas detectors
kFeb4nx	quad Nx FEB class
kFeb4nxBT	4nx FEB CBM beam tracker

Definition at line 33 of file FebBase.h.

Constructor & Destructor Documentation

nxyter::Feb1nxGenD::Feb1nxGenD ( ) [inline]

Definition at line 17 of file Feb1nxGenD.h.

nxyter::Feb1nxGenD::Feb1nxGenD	(	base::Board *	board,
		int	port
	)

Constructor with full addressing path information.

Sets up Feb1nxGenD object with full addressing information

Parameters:

	board	ROC board pointer
	port	the ROC port

Definition at line 25 of file Feb1nxGenD.cxx.

References nxyter::FebBase::addNxChip(), nxyter::FebBase::fMonAdcDevice, and roc::I2cDevice::setSlaveAddr().

nxyter::Feb1nxGenD::~Feb1nxGenD ( ) [virtual]

Definition at line 36 of file Feb1nxGenD.cxx.

Member Function Documentation

nxyter::MainAdc& nxyter::FebBase::adc ( ) [inline, inherited]

Gives access to the MainADC object.

Definition at line 68 of file FebBase.h.

References nxyter::FebBase::fMainAdc.

Referenced by cmd_getadcdirect(), cmd_printadc(), cmd_scanadclat(), cmd_setadc(), cmd_setadcclock(), cmd_setadcdef(), cmd_setadcpatt(), FebWidget::createTabs(), nxyter::FebBase::discoverFebs(), nxyter::FebBase::initRoc(), nxyter::FebBase::printRegisters(), nxyter::FebBase::probe(), nxyter::FebBase::setToDefault(), nxyter::FebUtil::testMainAdcControlPath(), and nxyter::FebUtil::testMainAdcDataPath().

void nxyter::FebBase::addNxChip	(	int	addr,
		int	nxnum,
		int	adcmux
	)			`[protected, inherited]`

Adds a new nXYTER with I2C slave address addr and nXYYER number nxnum to the configuration. The FebBase class supports FEB's with up to 4 nXYTERs, so this method can be called at most 4 times.

Parameters:

	addr	I2C slave address of the nXYTER
	nxnum	see nXYTER number
	adcmux	setting for the ADC channel Mux

Exceptions:

std::out_of_range

if called more often than the FebType requires.

Definition at line 359 of file FebBase.cxx.

References nxyter::FebBase::fAdcChannel, nxyter::FebBase::fNxChip, nxyter::FebBase::fNxOffline, nxyter::FebBase::fPort, and base::Peripheral::getBoard().

Referenced by nxyter::Feb1nxGenB::Feb1nxGenB(), nxyter::Feb1nxGenC::Feb1nxGenC(), Feb1nxGenD(), nxyter::Feb2nxGas::Feb2nxGas(), and nxyter::Feb4nxBT::Feb4nxBT().

base::Board & base::Peripheral::board ( ) [inherited]

Return reference to roc::Board which hosts the Peripheral.

Exceptions:

std::runtime_error

if board pointer not initialized or 0.

Definition at line 30 of file Peripheral.cxx.

References base::Peripheral::fBoard.

void nxyter::FebBase::discoverFebs	(	base::Board *	board,
		int &	typeport0,
		int &	typeport1,
		bool	liberal = `false`
	)			`[static, inherited]`

Method to discover FEB's connected to the ROC.

This static method can be used to determine what type of FEBs are connected to the two ports of the ROC represented by board. When liberal is false (the default), only fully fully functional FEBs with all nXYTERs operational will be recognized. If liberal is true, also FEBs with non-operational nXYTERs. The ADC must always be available.

The discover logic is based on the I2C slave address convention

1nx boards have the nXYTER in the range 2,...,30
2nx boards have the nXYTER in the range 32,...,62
4nx boards have the nXYTER in the range 64,...,126

The currently available FEB's use:

FEB1nxGenC: [0] on 8
FEB1nxGenD: [0] on 8
FEB2nxGas: [0] on 40; [1] on 48
FEB4nxBT: [0] on 72; [1] on 82; [2] on 84; [3] on 88

For strict mode (liberal = false) all nXYTERs must be seen, for liberal mode (liberal = true) one is enough.

Parameters:

	board	ROC board pointer
	typeport0	the type of FEB as defined in FebType for the FEB found on port 0, or 0 if none found.
	typeport1	the type of FEB as defined in FebType for the FEB found on port 1, or 0 if none found.
	liberal	if true, also FEBs with disfunctional nXYTERs are accepted

Definition at line 447 of file FebBase.cxx.

References nxyter::FebBase::adc(), roc::I2cDevice::getRegister16(), nxyter::NxChip::i2c(), nxyter::FebBase::kFeb1nxGenC, nxyter::FebBase::kFeb2nxGas, nxyter::FebBase::kFeb4nx, nxyter::FebBase::kFeb4nxBT, nxyter::FebBase::nx(), nxyter::NxI2c::probe(), and nxyter::MainAdc::probe().

Referenced by cmd_feb(), RocNxWidget::detectFebs(), and nxyter::FebUtil::probe().

bool nxyter::FebBase::eepromSupport ( ) [inline, inherited]

Returns EEProm support status.

Returns:: true if the type of FEB supports an EEProm.

Definition at line 121 of file FebBase.h.

References nxyter::FebBase::fEepromDevice, and roc::I2cDevice::getSlaveAddr().

base::Board* base::Peripheral::getBoard ( ) const [inline, inherited]

Returns pointer to the roc::Board which hosts the Peripheral.

Note: normally using board() is more convenient.

Definition at line 38 of file Peripheral.h.

References base::Peripheral::fBoard.

Referenced by nxyter::FebUtil::acquireTestTriggerData(), nxyter::NxChip::activate(), nxyter::FebBase::addNxChip(), nxyter::NxChip::deactivate(), nxyter::NxChip::isactive(), and nxyter::QuickDaq::QuickDaq().

int nxyter::FebBase::getFebClass ( ) const [inline, inherited]

Returns class of FEB, kFeb1nx, kFeb2nx, or kFeb4nx.

Definition at line 54 of file FebBase.h.

References nxyter::FebBase::fType.

int nxyter::FebBase::getFebState ( ) [virtual, inherited]

Get current FEB state - active flags of nXYTERs.

Returns:: see roc::Board get/put/oper return codes

Definition at line 127 of file FebBase.cxx.

References nxyter::NxChip::isactive(), nxyter::FebBase::numNx(), nxyter::FebBase::nx(), and nxyter::FebBase::setNxOffline().

Referenced by FebWidget::getSubConfig().

int nxyter::FebBase::getFebType ( ) const [inline, inherited]

Returns type of FEB, encoding see FebBase::FebType.

Definition at line 58 of file FebBase.h.

References nxyter::FebBase::fType.

Referenced by FebWidget::FebWidget(), and FebWidget::fillCmdFile().

int nxyter::FebBase::getMonAdc	(	int	ch,
		uint16_t &	val
	)			`[inherited]`

Read value from monitoring ADC.

Returns reading of channel ch from the monitoring ADC.

Parameters:

	ch	channel number (0 to 3)
	val	16 bit value to be written

Returns:: see roc::Board get/put/oper return codes, or -1 if no monitoring ADC support available, or -2 if ch out of range, or -3 if ADC read error

Definition at line 334 of file FebBase.cxx.

References nxyter::FebBase::fMonAdcDevice, roc::I2cDevice::getRegister16(), and nxyter::FebBase::monAdcSupport().

Referenced by cmd_printmon(), cmd_scanmonadc(), FebWidget::displayMonAdcs(), and roc::BoardsVector::readFeb().

int nxyter::FebBase::getNumMonAdc ( ) [inherited]

Definition at line 316 of file FebBase.cxx.

References nxyter::FebBase::monAdcSupport().

Referenced by FebWidget::displayMonAdcs(), roc::BoardsVector::numAdc(), and roc::BoardsVector::readFeb().

bool nxyter::FebBase::getNxOffline ( int nxind ) [inline, inherited]

Returns 'offline' status flag for nXYTER nxind.

Parameters:

nxind

see nXYTER index

Exceptions:

std::out_of_range

if nxind out of range

See also:: setNxOffline()

Definition at line 104 of file FebBase.h.

References nxyter::FebBase::fNxOffline.

Referenced by roc::BoardsVector::autoped_setnxmode(), check_nxoffline(), cmd_printnx(), cmd_printstatus(), FebWidget::fillCmdFile(), FebWidget::getSubConfig(), nxyter::FebBase::initRoc(), nxyter::FebBase::printNxHeadLine(), nxyter::FebBase::printRegisters(), nxyter::FebUtil::restoreFeb(), nxyter::FebUtil::saveFeb(), nxyter::FebBase::setNxRegisterAll(), and nxyter::FebBase::setToDefault().

int nxyter::FebBase::getPortNumber ( ) const [inline, inherited]

Returns port (connector) number on ROC (0 or 1).

Definition at line 50 of file FebBase.h.

References nxyter::FebBase::fPort.

Referenced by cmd_geti2c(), cmd_getnx(), cmd_printstatus(), cmd_puti2c(), cmd_seti2c(), and FebWidget::fillCmdFile().

int nxyter::FebBase::initRoc ( ) [virtual, inherited]

Initialize ROC to support this FEB.

This method will setup

set nXYTER active/inactive
setup Feb4nx mode flag
setup adc channel mux

Returns:: see roc::Board get/put/oper return codes

Definition at line 102 of file FebBase.cxx.

References nxyter::NxChip::activate(), nxyter::FebBase::adc(), base::Peripheral::board(), nxyter::NxChip::deactivate(), nxyter::FebBase::fAdcChannel, nxyter::FebBase::fMode4nx, nxyter::FebBase::getNxOffline(), nxyter::FebBase::numNx(), nxyter::FebBase::nx(), base::Board::operErrBuildInc(), base::Board::put(), ROC_NX_FEB4NX, and nxyter::MainAdc::setChannelMux().

Referenced by cmd_initfeb(), FebWidget::setSubConfig(), and nxyter::QuickDaq::startRun().

bool nxyter::FebBase::monAdcSupport ( ) [inline, inherited]

Returns monitor ADC support status.

Returns:: true if the type of FEB supports a monitoring ADC.

Definition at line 114 of file FebBase.h.

References nxyter::FebBase::fMonAdcDevice, and roc::I2cDevice::getSlaveAddr().

Referenced by cmd_printmon(), FebWidget::displayMonAdcs(), nxyter::FebBase::getMonAdc(), nxyter::FebBase::getNumMonAdc(), and roc::BoardsVector::readFeb().

nxyter::FebBase * nxyter::FebBase::newFeb	(	base::Board *	board,
		int	port,
		int	type
	)			`[static, inherited]`

Factory method to create a new Feb object.

Parameters:

	board	ROC board pointer
	port	the ROC port
	type	of Feb object to be created as encoded in FebBase::FebType

Returns:: pointer to new Feb object, or 0 if type is not a valid FEB type.

Definition at line 549 of file FebBase.cxx.

References nxyter::FebBase::kFeb1nxGenB, nxyter::FebBase::kFeb1nxGenC, nxyter::FebBase::kFeb1nxGenD, nxyter::FebBase::kFeb2nxGas, and nxyter::FebBase::kFeb4nxBT.

Referenced by RocNxWidget::addFebWidget(), cmd_feb(), and roc::BoardsVector::setBoard().

int nxyter::FebBase::numNx ( ) const [inline, inherited]

Returns the number connected nXYTER on this FEB.

Definition at line 62 of file FebBase.h.

References nxyter::FebBase::fNxChip.

Referenced by autoped_setnxmode(), roc::BoardsVector::autoped_setnxmode(), cmd_autosettrh(), cmd_printstatus(), cmd_testnxdata(), FebWidget::createTabs(), FebWidget::FebWidget(), FebWidget::fillCmdFile(), get_nxind(), get_nxrange(), nxyter::FebBase::getFebState(), FebWidget::getSubConfig(), nxyter::FebBase::initRoc(), nxyter::FebUtil::restoreFeb(), nxyter::FebUtil::saveFeb(), and nxyter::FebUtil::testFebControlPathCombo().

nxyter::NxChip & nxyter::FebBase::nx ( int nxind ) [inherited]

Gives access to the NxChip object of the nXYTER with index ind.

Provides to access the object representing one of the nXYTERs on the FEB. Acceptable values of ind are 0 to numNx() -1, otherwise an exception is thrown.

Parameters:

nxind

see nXYTER index

Exceptions:

std::out_of_range

if nxind out of range

Note:: the nXYTER index needed here can be different from the nXYTER number (usually named nxnum). The index nxind identifies the nXYTER on a given FEB. The nXYTER number provides a unique identification of all nXYTERs on a ROC.

Definition at line 86 of file FebBase.cxx.

References nxyter::FebBase::fNxChip.

void nxyter::FebBase::printNxHeadLine	(	std::ostream &	os,
		int	nxind
	)			`[virtual, inherited]`

Print standart headline for a nXYTER nxind.

Definition at line 200 of file FebBase.cxx.

References nxyter::FebBase::fPort, nxyter::NxChip::getNxNumber(), nxyter::FebBase::getNxOffline(), and nxyter::FebBase::nx().

Referenced by cmd_autovbiass(), cmd_idsigch(), cmd_printnx(), cmd_scanmonadc(), cmd_scanvbiasf(), cmd_scanvbiass(), and nxyter::FebBase::printRegisters().

void nxyter::FebBase::printRegisters	(	std::ostream &	os,
		int	domask = `nxyter::kDoAll`
	)			`[virtual, inherited]`

Read nXYTER and ADC registers and print to stream os.

This method uses the NxI2c::printRegisters() and MainAdc::printRegisters() methods to print the current status of the FEB board, consult the respective documentation for details.

Definition at line 223 of file FebBase.cxx.

References nxyter::FebBase::adc(), nxyter::FebBase::fNxChip, nxyter::FebBase::fPort, nxyter::FebBase::getNxOffline(), nxyter::NxChip::i2c(), nxyter::FebBase::nx(), nxyter::FebBase::printNxHeadLine(), nxyter::MainAdc::printRegisters(), and nxyter::NxI2c::printRegisters().

Referenced by cmd_printfeb(), and nxyter::FebBase::operator<<().

int nxyter::FebBase::probe ( ) [virtual, inherited]

Probe whether nx and adc on the FEB are available. set 'offline' flags.

The probe method uses the NxI2c::probe() and MainAdc::probe() methods to determine whether control access to the nXYTER and ADC can be established. If an nXYTER probe fails, the 'offline' flag will be set true, see setNxOffline().

Returns:: 0 in case ADC and all nXYTYERs are successfully probed. Otherwise a bit pattern of the missing components is returned, where bit 0 to 3 set indicate that nXYTER 0 to 3 is missing, and bit 4 indicates that the ADC is missing.

Definition at line 150 of file FebBase.cxx.

References nxyter::FebBase::adc(), nxyter::FebBase::fNxChip, nxyter::NxChip::i2c(), nxyter::FebBase::nx(), nxyter::NxI2c::probe(), and nxyter::FebBase::setNxOffline().

void nxyter::FebBase::resetNxI2cBus ( ) [inherited]

Reset the I2C Interface of all nXYTERs of the FEB.

This methods resets the I2C bus state machine in all nXYYERs on the FEB. It might be useful in case this state machine is stuck. It should not affect the status of any register in the nXYTER.

See also:: resetNxI2cRegister()

Definition at line 242 of file FebBase.cxx.

References base::Peripheral::board(), nxyter::FebBase::fPort, base::Board::operPPP(), ROC_NX_I2C_RESET, and ROC_NX_I2C_SWITCH.

Referenced by cmd_resetnxi2cbus().

void nxyter::FebBase::resetNxI2cRegister ( ) [inherited]

Reset the I2C Registers of all nXYTERs of the FEB.

This method resets the I2C registers of all nXYTERs on the FEB to the chip default values, which are 0 for masks and 128 (mid range) for all bias DAC's. In general this will out the nXYTER in a state where it will not operate properly.

This method might be useful in some cases of despair and to test this reset mechanism of last resort. To put the FEB into a working state use setToDefault().

See also:: resetI2cBus(), setToDefault().

Definition at line 264 of file FebBase.cxx.

References base::Peripheral::board(), nxyter::FebBase::fPort, base::Board::operPPP(), ROC_NX_I2C_REGRESET, and ROC_NX_I2C_SWITCH.

Referenced by cmd_resetnxi2creg().

void nxyter::FebBase::setNxOffline	(	int	nxind,
		bool	isoff
	)			`[inline, inherited]`

Set 'offline' status flag for nXYTER nxind.

If a nXYTER is set offline it will be silently ignored in all FEB level methods which loop over all nXYTERs, in particular initRoc(), setToDefault(), setNxRegisterAll(). The 'offline' flag does not affect the direct access to the nXYTER resources via nx().

Parameters:

	nxind	see nXYTER index
	isoff	when `true`, nXYTER is set inactive

Exceptions:

std::out_of_range

if nxind out of range

See also:: getNxOffline()

Definition at line 95 of file FebBase.h.

References nxyter::FebBase::fNxOffline.

Referenced by cmd_setnxoff(), FebWidget::enableNxClicked(), nxyter::FebBase::getFebState(), and nxyter::FebBase::probe().

int nxyter::FebBase::setNxRegisterAll	(	uint8_t	reg,
		uint8_t	val,
		bool	veri = `true`
	)			`[inherited]`

Write a value into a register of all nXYTERs.

Writes val into register reg of all nXYTERs on the FEB.

Parameters:

	reg	register number
	val	value to be written
	veri	if `true` readback verification done (default is `true`)

Returns:: see roc::Board get/put/oper return codes

Definition at line 303 of file FebBase.cxx.

References nxyter::FebBase::fNxChip, nxyter::FebBase::getNxOffline(), nxyter::NxChip::i2c(), nxyter::FebBase::nx(), base::Board::operErrBuild(), and roc::I2cDevice::setRegister().

Referenced by cmd_testnxdata(), and nxyter::QuickDaq::setNxRegisterAll().

int nxyter::FebBase::setNxTestModes	(	bool	testpuls,
		bool	testtrig,
		int	calselect
	)			`[inherited]`

Setup test pulser and test trigger mode in all nXYTERs.

Calls for all nXYTERs on of the FEB the NxI2c::setNxTestModes() method, check the documentation of this method for details.

Parameters:

	testtrig	determines whether test trigger mode is enabled
	testpuls	determines whether test pulser mode is enabled
	calselect	determines which channel group receives test pulse

Returns:: see roc::Board get/put/oper return codes

Definition at line 283 of file FebBase.cxx.

References nxyter::FebBase::fNxChip, nxyter::NxChip::i2c(), nxyter::FebBase::nx(), base::Board::operErrBuild(), and nxyter::NxI2c::setTestModes().

Referenced by cmd_testnxdata(), and nxyter::QuickDaq::setNxTestModes().

int nxyter::FebBase::setToDefault	(	bool	ispos0 = `false`,
		bool	ispos1 = `false`
	)			`[virtual, inherited]`

Write default values into ADC and nXYTER registers.

This method uses the NxI2c::setToDefault() and MainAdc::setToDefault() methods to setup the registers with default values, consult the respective documentation for details. The nXYTER polarity is determined by ispos0 and ispos1, where ispos0 determines the polarity for an FEB1nx, the first (index 0) chip if an FEB2nx and the first two (index 0 and 1) of an FEB4nx. ispos1 is used for the remaining chips.
